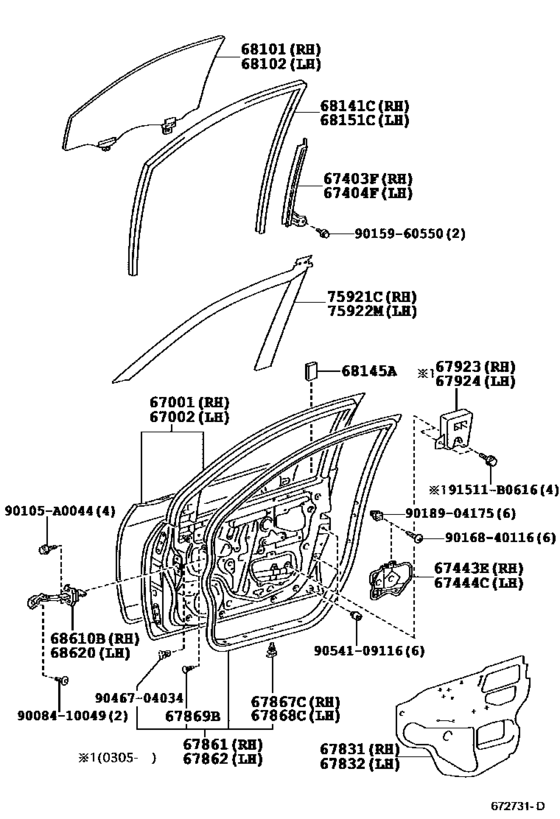

Front Door Panel & Glass ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-01201 Panel Sub-Assy, Front Door, Rh[05.2002 - 05.2003] ZZE13# |
67001-01201 |
US $879.42 |
||
| replacement | |||||
|
67001
|
67001
67001-01202 Panel Sub-Assy, Front Door, Rh[05.2002 - 05.2003] ZZE13# |
67001-01202 |
US $879.42 |
||
|
67001
|
67001
67001-01202 Panel Sub-Assy, Front Door, Rh[05.2003 - 02.2004] ZZE13# |
67001-01202 |
US $879.42 |
||
|
67002
|
67002
67002-01201 Panel Sub-Assy, Front Door, Lh[05.2002 - 05.2003] ZZE13# |
67002-01201 |
US $879.42 |
||
| replacement | |||||
|
67002
|
67002
67002-01202 Panel Sub-Assy, Front Door, Lh[05.2002 - 05.2003] ZZE13# |
67002-01202 |
US $879.42 |
||
|
67002
|
67002
67002-01202 Panel Sub-Assy, Front Door, Lh[05.2003 - 02.2004] ZZE13# |
67002-01202 |
US $879.42 |
||
|
67403F
|
67403F
67403-01020 Frame Sub-Assy, Front Door, Rear Lower Rh[05.2002 - 02.2004] ZZE13# |
67403-01020 |
US $17.47 |
||
|
67404F
|
67404F
67404-01020 Frame Sub-Assy, Front Door, Rear Lower Lh[05.2002 - 02.2004] ZZE13# |
67404-01020 |
US $17.47 |
||
|
67443E
|
67443E
67443-01010 Plate, Front Door Inside Panel, Rh[05.2002 - 02.2004] ZZE13# |
67443-01010 |
US $26.50 |
||
|
67444C
|
67444C
67444-01010 Plate, Front Door Inside Panel, Lh[05.2002 - 02.2004] ZZE13# |
67444-01010 |
US $26.50 |
||
|
67831
|
67831
67831-01020 Cover, Front Door Service Hole, Rh[05.2002 - 02.2004] ZZE13# |
67831-01020 |
US $16.89 |
||
| replacement | |||||
|
67831
|
67831
67831-01021 Cover, Front Door Service Hole, Rh[05.2002 - 02.2004] ZZE13# |
67831-01021 |
US $17.33 |
||
|
67832
|
67832
67832-01020 Cover, Front Door Service Hole, Lh[05.2002 - 02.2004] ZZE13# |
67832-01020 |
US $16.89 |
||
| replacement | |||||
|
67832
|
67832
67832-01021 Cover, Front Door Service Hole, Lh[05.2002 - 02.2004] ZZE13# |
67832-01021 |
US $17.33 |
||
|
67861
|
67861
67861-01040 Weatherstrip, Front Door, Rh[05.2002 - 02.2004] ZZE13# |
67861-01040 |
US $116.48 |
||
|
67862
|
67862
67862-01050 Weatherstrip, Front Door, Lh[05.2002 - 02.2004] ZZE13# |
67862-01050 |
US $116.48 |
||
|
67867C
|
67867C
67868-02020 Retainer, Front Door Weatherstrip, Rh[05.2002 - 02.2004] ZZE13# |
67868-02020 |
US $2.18 |
||
| replacement | |||||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[05.2002 - 02.2004] ZZE13# |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67868-02020 Retainer, Front Door Weatherstrip, Rh[05.2002 - 02.2004] ZZE13# |
67868-02020 |
US $2.18 |
||
| replacement | |||||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[05.2002 - 02.2004] ZZE13# |
67867-12150 |
from US $1.60 |
||
|
67869B
|
67869B
67869-20030 Clip, Door Weatherstrip(For Front Door)[05.2002 - 02.2004] ZZE13# |
67869-20030 |
from US $0.82 |
||
|
67923
|
67923
67923-01010
Cushion, Front Door Stiffener, No.1
[05.2003 - 02.2004] ZZE13# |
67923-01010 |
— | ||
|
67924
|
67924
67924-01010 Cushion, Front Door Stiffener, No.2[05.2003 - 02.2004] ZZE13# |
67924-01010 |
US $47.61 |
||
|
68101
|
68101
68101-01040
Glass Sub-Assy, Front Door, Rh
[05.2002 - 02.2004] ZZE13# ＊ＴＴ，厚さ＝３．５，グリーン |
68101-01040 |
— | ||
|
68102
|
68102
68102-01040
Glass Sub-Assy, Front Door, Lh
[05.2002 - 02.2004] ZZE13# ＊ＴＴ，厚さ＝３．５，グリーン |
68102-01040 |
— | ||
|
68141C
|
68141C
68141-01031
Run, Front Door Glass, Rh
[05.2002 - 02.2004] ZZE13# |
68141-01031 |
— | ||
| replacement | |||||
|
68141C
|
68141C
68141-01070 Run, Front Door Glass[05.2002 - 02.2004] ZZE13# |
68141-01070 |
US $49.65 |
||
|
68145A
|
68145A
69759-02100
Cushion, Front Door Window
[12.2003 - 02.2004] ZZE13# |
69759-02100 |
— | ||
| replacement | |||||
|
68145A
|
68145A
69759-12110 Seal, Rear Door Frame[12.2003 - 02.2004] ZZE13# |
69759-12110 |
US $3.84 |
||
|
68145A
|
68145A
69759-12110 Seal, Rear Door Frame[05.2002 - 12.2003] ZZE13# |
69759-12110 |
US $3.84 |
||
|
68151C
|
68151C
68151-01021
Run, Front Door Glass, Lh
[05.2002 - 02.2004] ZZE13# |
68151-01021 |
— | ||
| replacement | |||||
|
68151C
|
68151C
68151-01060
Run, Front Door Glass, Lh
[05.2002 - 02.2004] ZZE13# |
68151-01060 |
— | ||
|
68610B
|
68610B
68610-02060
Check Assy, Front Door, Rh
[05.2002 - 10.2002] ZZE13# |
68610-02060 |
— | ||
| replacement | |||||
|
68610B
|
68610B
68610-02061
Check Assy, Front Door, Rh
[05.2002 - 10.2002] ZZE13# |
68610-02061 |
— | ||
|
68610B
|
68610B
68610-02061
Check Assy, Front Door, Rh
[10.2002 - 02.2004] ZZE13# |
68610-02061 |
— | ||
|
68620
|
68620
68620-02060
Check Assy, Front Door, Lh
[05.2002 - 09.2002] ZZE13# |
68620-02060 |
— | ||
| replacement | |||||
|
68620
|
68620
68620-02061
Check Assy, Front Door, Lh
[05.2002 - 09.2002] ZZE13# |
68620-02061 |
— | ||
|
68620
|
68620
68620-02061
Check Assy, Front Door, Lh
[10.2002 - 02.2004] ZZE13# |
68620-02061 |
— | ||
|
75921C
|
75921C
75921-01010 Tape, Black Out, No.1 Rh[05.2002 - 02.2004] ZZE13# |
75921-01010 |
US $113.57 |
||
|
75922M
|
75922M
75922-01010 Tape, Black Out, No.1 Lh[05.2002 - 02.2004] ZZE13# |
75922-01010 |
US $113.57 |
||
|
90105A0044
|
90105A0044
90105-A0044
New Genuine Part
|
90105-A0044 |
— | ||
|
91511B0616
|
91511B0616
91511-B0616 BOLT, FLANGE |
91511-B0616 |
from US $1.76 |
||
| replacement | |||||
|
91511B0616
|
91511B0616
90080-10164 BOLT, FLANGE |
90080-10164 |
US $2.67 |
||
|
9008410049
|
9008410049
90084-10049
New Genuine Part
|
90084-10049 |
— | ||
|
9015960550
|
9015960550
90159-60550 New Genuine Part |
90159-60550 |
US $1.44 |
||
|
9016840116
|
9016840116
90168-40116 SCREW,TAPPING |
90168-40116 |
from US $0.72 |
||
| replacement | |||||
|
9016840116
|
9016840116
90080-16112 New Genuine Part |
90080-16112 |
US $2.97 |
||
|
9018904175
|
9018904175
90189-04175 New Genuine Part |
90189-04175 |
US $2.08 |
||
|
9046704034
|
9046704034
90467-04034 Clip |
90467-04034 |
US $0.96 |
||
|
9054109116
|
9054109116
90541-09116 Cushion(For Luggage Compartment Door Panel) |
90541-09116 |
from US $1.60 |
||
