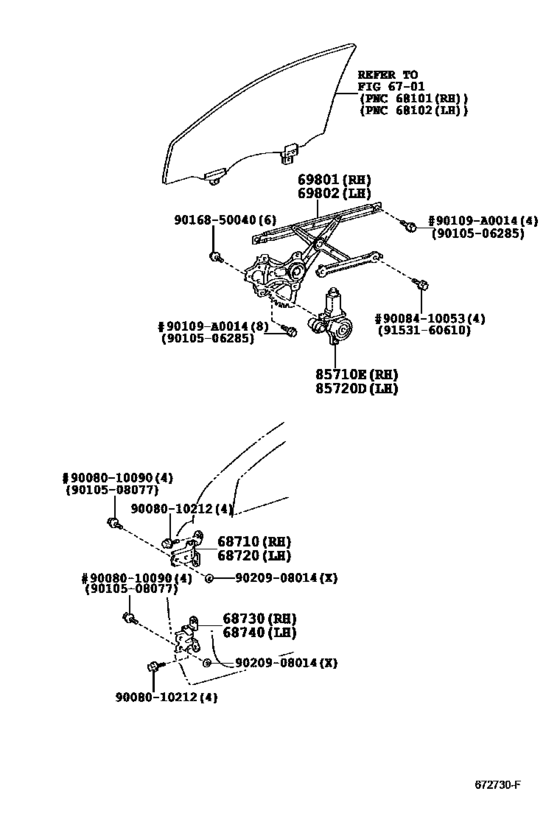

Front Door Window Regulator & Hinge ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-02020 Hinge Assy, Front Door, Upper Rh[05.2002 - 02.2004] ZZE13# |
68710-02020 |
US $75.47 |
||
|
68720
|
68720
68720-02020 Hinge Assy, Front Door, Upper Lh[05.2002 - 02.2004] ZZE13# |
68720-02020 |
US $105.71 |
||
|
68730
|
68730
68730-02030 Hinge Assy, Front Door, Lower Rh[05.2002 - 02.2004] ZZE13# |
68730-02030 |
US $29.85 |
||
|
68740
|
68740
68740-02030
Hinge Assy, Front Door, Lower Lh
[05.2002 - 02.2004] ZZE13# |
68740-02030 |
— | ||
|
69801
|
69801
69801-01030 Regulator Sub-Assy, Front Door Window, Rh[05.2002 -] ZZE13# |
69801-01030 |
US $84.45 |
||
|
69802
|
69802
69802-01030 Regulator Sub-Assy, Front Door Window, Lh[05.2002 -] ZZE13# |
69802-01030 |
US $84.45 |
||
|
85710E
|
85710E
85710-33120 Motor Assy, Power Window Regulator, Rh[05.2003 -] ZZE13# |
85710-33120 |
US $466.20 |
||
|
85710E
|
85710E
85710-AA050 Motor Assy, Power Window Regulator, Rh[05.2002 - 05.2003] ZZE13# |
85710-AA050 |
US $343.62 |
||
|
85720D
|
85720D
85720-AA050
Motor Assy, Power Window Regulator, Rh
[05.2002 -] ZZE13# |
85720-AA050 |
— | ||
|
90109A0014
|
90109A0014
90109-A0014
New Genuine Part
|
90109-A0014 |
— | ||
|
9008010090
|
9008010090
90080-10090 New Genuine Part |
90080-10090 |
US $1.31 |
||
|
9008010212
|
9008010212
90080-10212 New Genuine Part |
90080-10212 |
US $1.16 |
||
|
9008410053
|
9008410053
90084-10053
New Genuine Part
|
90084-10053 |
— | ||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
|
9020908014
|
9020908014
90209-08014 WASHER |
90209-08014 |
US $1.92 |
