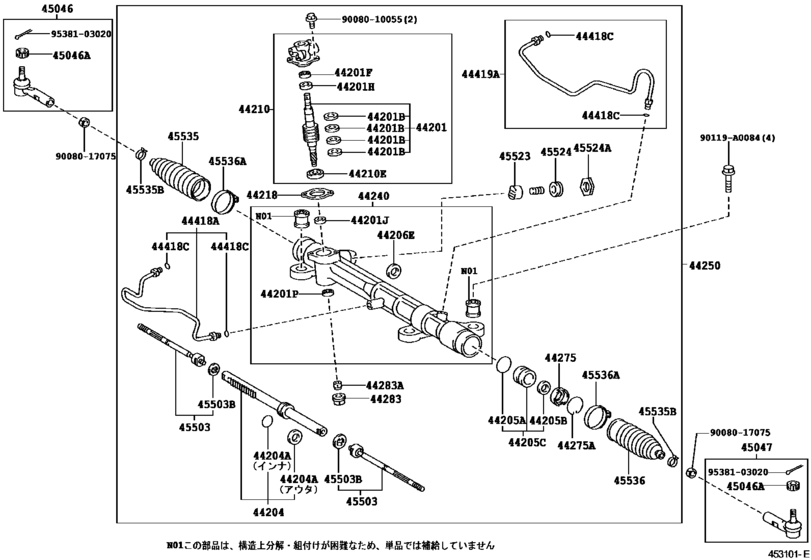

Front Steering Gear & Link ([05.2002 - ] (0205- )ZZE136,137) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44201
|
44201
44201-01020
Valve Sub-Assy, Power Steering Control
[05.2002 - 02.2004] ZZE136,137 |
44201-01020 |
— | ||
|
44201B
|
44201B
90560-33003 Spacer(For Power Steering Control Valve)[05.2002 - 02.2004] ZZE136,137 |
90560-33003 |
from US $1.40 |
||
|
44201F
|
44201F
44214-06010 Seal, Oil(For Power Steering Control Valve)[05.2002 - 02.2004] ZZE136,137 |
44214-06010 |
US $3.84 |
||
|
44201H
|
44201H
90080-36047
Bearing(For Power Steering Control Valve Upper)
[05.2002 - 02.2004] ZZE136,137 |
90080-36047 |
— | ||
|
44201J
|
44201J
90080-36046 Bearing(For Power Steering Control Valve Center)[05.2002 - 02.2004] ZZE136,137 |
90080-36046 |
US $49.07 |
||
|
44201P
|
44201P
90363-12009 Bearing(For Power Steering Control Valve Lower)[05.2002 - 02.2004] ZZE136,137 |
90363-12009 |
US $6.29 |
||
|
44204
|
44204
44204-01020 Rack Sub-Assy, Power Steering[05.2002 - 02.2004] ZZE136,137 |
44204-01020 |
US $198.02 |
||
|
44204A
|
44204A
90080-30098 Ring(For Rack Steering Piston)[05.2002 - 02.2004] ZZE136,137 内側 |
90080-30098 |
US $5.97 |
||
|
44204A
|
44204A
90080-56080 Ring(For Rack Steering Piston)[05.2002 - 02.2004] ZZE136,137 外側 |
90080-56080 |
US $1.60 |
||
|
44205A
|
44205A
90082-67001 Ring, O(For Cylinder End Stopper)[05.2002 - 02.2004] ZZE136,137 |
90082-67001 |
US $4.08 |
||
|
44205B
|
44205B
90080-31081 Seal, Oil(For Cylinder End Stopper)[05.2002 - 02.2004] ZZE136,137 |
90080-31081 |
US $2.91 |
||
|
44205C
|
44205C
44205-02030
Bush Sub-Assy, Power Steering Rack
[05.2002 - 02.2004] ZZE136,137 |
44205-02030 |
— | ||
|
44206E
|
44206E
90080-31081 Seal, Oil(For Cylinder End Stopper)[05.2002 - 02.2004] ZZE136,137 |
90080-31081 |
US $2.91 |
||
|
44210
|
44210
44210-01010 Valve Assy, Power Steering Control[05.2002 - 02.2004] ZZE136,137 |
44210-01010 |
US $563.47 |
||
|
44210E
|
44210E
44215-06010
Seal, Oil(For Power Steering Control Valve)
[05.2002 - 02.2004] ZZE136,137 |
44215-06010 |
— | ||
|
44218
|
44218
44218-06010
Gasket, Valve Housing
[05.2002 - 02.2004] ZZE136,137 |
44218-06010 |
— | ||
|
44240
|
44240
44240-01020 Housing Assy, Power Steering Rack[05.2002 - 02.2004] ZZE136,137 |
44240-01020 |
US $283.92 |
||
|
44250
|
44250
44250-01030 Gear Assy, Power Steering(For Rack & Pinion)[05.2002 - 09.2003] ZZE136,137 |
44250-01030 |
US $1,438.53 |
||
| replacement | |||||
|
44250
|
44250
44250-01031 Gear Assy, Power Steering(For Rack & Pinion)[05.2002 - 09.2003] ZZE136,137 |
44250-01031 |
US $1,439.98 |
||
|
44250
|
44250
44250-01031 Gear Assy, Power Steering(For Rack & Pinion)[09.2003 - 02.2004] ZZE136,137 |
44250-01031 |
US $1,439.98 |
||
|
44275
|
44275
44275-02040 Stopper, Cylinder End[05.2002 - 02.2004] ZZE136,137 |
44275-02040 |
US $20.82 |
||
|
44275A
|
44275A
90080-52115 Ring, Hole Snap(For Cylinder End Stopper)[05.2002 - 02.2004] ZZE136,137 |
90080-52115 |
US $0.87 |
||
|
44283
|
44283
44283-02010
Cap, Rack Housing
[05.2002 - 02.2004] ZZE136,137 |
44283-02010 |
— | ||
|
44283A
|
44283A
90080-17078 Nut(For Rack Housing Cap)[05.2002 - 02.2004] ZZE136,137 |
90080-17078 |
US $0.73 |
||
|
44418A
|
44418A
44418-01020 Tube, Steering Right Turn Pressure[05.2002 - 02.2004] ZZE136,137 |
44418-01020 |
US $19.66 |
||
|
44418C
|
44418C
90080-30099
Ring, O(For Steering Turn Pressure Tube)
[05.2002 - 02.2004] ZZE136,137 |
90080-30099 |
— | ||
|
44419A
|
44419A
44419-01020 Tube, Steering Left Turn Pressure[05.2002 - 02.2004] ZZE136,137 |
44419-01020 |
US $19.66 |
||
|
45046
|
45046
45046-09190 End Sub-Assy, Tie Rod, Rh[05.2002 - 02.2004] ZZE136,137 |
45046-09190 |
US $46.13 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[05.2002 - 02.2004] ZZE13# |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-09190 End Sub-Assy, Tie Rod, Rh[05.2002 - 02.2004] ZZE136,137 |
45046-09190 |
US $46.13 |
||
|
45503
|
45503
45503-09430 End Sub-Assy, Steering Rack[05.2002 - 02.2004] ZZE136,137 |
45503-09430 |
US $99.59 |
||
|
45503B
|
45503B
90214-14009 Washer, Claw(For Steering Rack End)[09.2003 - 02.2004] ZZE136,137 外径＝３５．２ |
90214-14009 |
from US $1.35 |
||
|
45523
|
45523
45504-02030 Guide, Rack(For Steering Gear)[05.2002 - 02.2004] ZZE136,137 |
45504-02030 |
US $37.42 |
||
|
45524
|
45524
45524-02010
Cap, Steering Rack Guide Spring
[05.2002 - 02.2004] ZZE136,137 |
45524-02010 |
— | ||
|
45524A
|
45524A
90080-17089 Nut(For Steering Rack Guide Spring Cap)[05.2002 - 02.2004] ZZE136,137 |
90080-17089 |
US $3.06 |
||
|
45535
|
45535
45535-02020 Boot, Steering Rack, No.1[05.2002 - 02.2004] ZZE136,137 |
45535-02020 |
US $11.88 |
||
|
45535B
|
45535B
90080-46174
Clip(For Steering Rack Boot)
[05.2002 - 02.2004] ZZE136,137 |
90080-46174 |
— | ||
|
45536
|
45536
45535-02020 Boot, Steering Rack, No.1[05.2002 - 02.2004] ZZE136,137 |
45535-02020 |
US $11.88 |
||
|
45536A
|
45536A
90080-46271 Clamp(For Steering Rack Boot No.2)[05.2002 - 02.2004] ZZE136,137 |
90080-46271 |
US $1.22 |
||
|
90119A0084
|
90119A0084
90119-A0084
New Genuine Part
|
90119-A0084 |
— | ||
|
9008010055
|
9008010055
90080-10055 New Genuine Part |
90080-10055 |
US $1.60 |
||
|
9008017075
|
9008017075
90080-17075 New Genuine Part |
90080-17075 |
US $2.33 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
