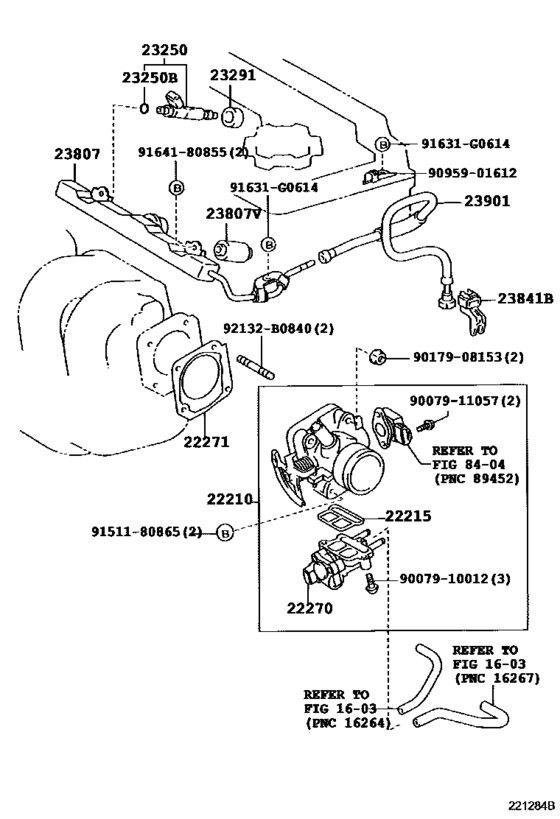

Fuel Injection System ([05.2002 - ] (0205- )2ZZGE) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-22160
Body Assy, Throttle
[05.2002 - 02.2004] 2ZZGE..ZZE137 |
22210-22160 |
— | ||
|
22215
|
22215
22215-7A680 Gasket, Throttle Body Cover[05.2002 - 02.2004] 1ZZFE..ZZE136 （Ｊ）; 1ZZFE,2ZZGE..ZZE137,138 |
22215-7A680 |
from US $3.45 |
||
|
22270
|
22270
22270-22020 Valve Assy, Idle Speed Control(For Thlottle Body)[05.2002 - 03.2003] 2ZZGE..ZZE137 |
22270-22020 |
US $601.33 |
||
| replacement | |||||
|
22270
|
22270
22270-22021 Valve Assy, Idle Speed Control(For Thlottle Body)[05.2002 - 03.2003] 2ZZGE..ZZE137 |
22270-22021 |
US $601.33 |
||
|
22270
|
22270
22270-22021 Valve Assy, Idle Speed Control(For Thlottle Body)[03.2003 - 02.2004] 2ZZGE..ZZE137 |
22270-22021 |
US $601.33 |
||
|
22271
|
22271
22271-88600 Gasket, Throttle Body[05.2002 - 02.2004] 2ZZGE..ZZE137 |
22271-88600 |
from US $12.48 |
||
|
23250
|
23250
23209-22060-01 Injector Assy, Fuel[05.2002 - 02.2004] 2ZZGE..ZZE137 MARK WHITE |
23209-22060-01 |
US $270.82 |
||
|
23250
|
23250
23209-22060-02 Injector Assy, Fuel[05.2002 - 02.2004] 2ZZGE..ZZE137 MARK BLUE |
23209-22060-02 |
US $270.82 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[05.2002 - 02.2004] 1ZZFE,2ZZGE..ZZE13# |
90301-07024 |
US $3.04 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[05.2002 - 02.2004] 2ZZGE..ZZE137 |
23291-41010 |
from US $2.87 |
||
|
23807
|
23807
23807-88600 Pipe Sub-Assy, Fuel Delivery[05.2002 - 02.2004] 2ZZGE..ZZE137 |
23807-88600 |
US $183.46 |
||
|
23807V
|
23807V
90561-08059 Spacer, No.1(For Delivery Pipe)[05.2002 - 02.2004] 2ZZGE..ZZE137 |
90561-08059 |
US $2.97 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[05.2002 - 02.2004] 1ZZFE,2ZZGE..ZZE13# |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[05.2002 - 02.2004] 1ZZFE,2ZZGE..ZZE13# |
23841-21050 |
US $3.52 |
||
|
23901
|
23901
23271-88601 Tube Sub-Assy, Fuel[05.2002 - 02.2004] 2ZZGE..ZZE137 |
23271-88601 |
US $32.32 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.72 |
||
|
92132B0840
|
92132B0840
92132-B0840 New Genuine Part |
92132-B0840 |
US $1.31 |
||
|
9007910012
|
9007910012
90079-10012 SCREW |
90079-10012 |
US $1.76 |
||
|
9007911057
|
9007911057
90079-11057 SCREW WWASHER |
90079-11057 |
US $1.76 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9095901612
|
9095901612
90959-01612 New Genuine Part |
90959-01612 |
US $4.22 |
||
|
9151180865
|
9151180865
91511-80865 Bolt(For Cylinder Head Set Sub) |
91511-80865 |
US $0.87 |
||
|
9164180855
|
9164180855
91641-80855
Bolt
|
91641-80855 |
— | ||
