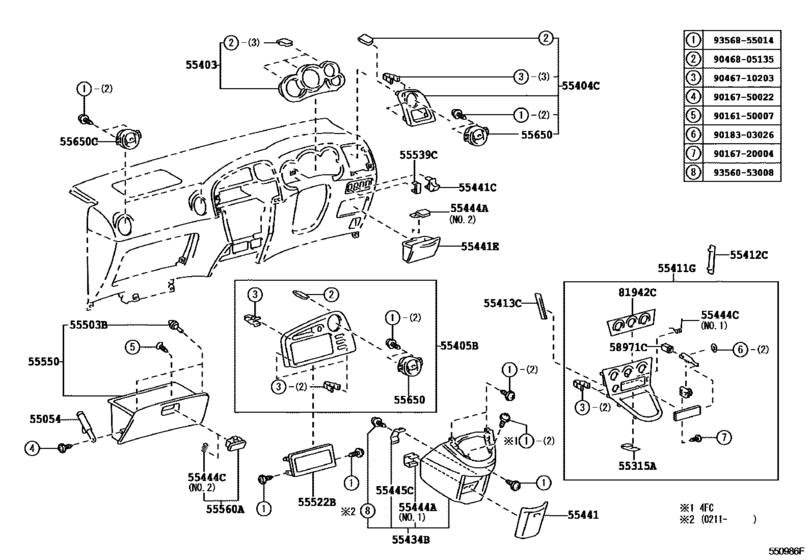

Instrument Panel & Glove Compartment ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55054
|
55054
55054-02020
Stopper Sub-Assy, Glove Compartment Door
[05.2002 -] ZZE13# |
55054-02020 |
— | ||
| replacement | |||||
|
55054
|
55054
55054-12010 Stopper Sub-Assy, Glove Compartment Door[05.2002 -] ZZE13# |
55054-12010 |
US $12.48 |
||
|
55315A
|
55315A
55315-01040
Spacer, Instrument Panel, No.1
[05.2002 -] ZZE13# |
55315-01040 |
— | ||
|
55403
|
55403
55403-01020
Hood Sub-Assy, Meter
[05.2002 -] ZZE13# |
55403-01020 |
— | ||
|
55404C
|
55404C
55404-01040
Panel Sub-Assy, Instrument Cluster Finish, No.2
[05.2002 -] ZZE13# |
55404-01040 |
— | ||
|
55405B
|
55405B
55405-01050
Panel Sub-Assy, Instrument Cluster Finish, Center
[05.2002 -] ZZE13# |
55405-01050 |
— | ||
|
55411G
|
55411G
55420-01040
Panel, Instrument Cluster Finish, No.1
[05.2002 -] ZZE13# |
55420-01040 |
— | ||
|
55412C
|
55412C
55412-01050 Panel, Instrument Cluster Finish, Center No.1[05.2002 -] ZZE13# |
55412-01050 |
US $26.50 |
||
|
55413C
|
55413C
55413-01010
Panel, Instrument Cluster Finish, Center No.2
[05.2002 -] ZZE13# |
55413-01010 |
— | ||
|
55434B
|
55434B
55434-01070-B0
Panel, Instrument Panel Finish, Lower Center
[05.2002 - 11.2002] ZZE13# DK.GRAY,TRIM13,14 |
55434-01070-B0 |
— | ||
| replacements | |||||
|
55434B
|
55434B
55434-01072-B0
Panel, Instrument Panel Finish, Lower Center
[05.2002 - 11.2002] ZZE13# DK.GRAY,TRIM13,14 |
55434-01072-B0 |
— | ||
|
55434B
|
55434B
55441-01021-B0
Box, Instrument Panel
[05.2002 - 11.2002] ZZE13# DK.GRAY,TRIM13,14 |
55441-01021-B0 |
— | ||
|
55434B
|
55434B
55434-01071-B0
Panel, Instrument Panel Finish, Lower Center
[11.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
55434-01071-B0 |
— | ||
| replacements | |||||
|
55434B
|
55434B
55434-01072-B0
Panel, Instrument Panel Finish, Lower Center
[11.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
55434-01072-B0 |
— | ||
|
55434B
|
55434B
55441-01021-B0
Box, Instrument Panel
[11.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
55441-01021-B0 |
— | ||
|
55441
|
55441
55441-01020-B0
Box, Instrument Panel
[05.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
55441-01020-B0 |
— | ||
| replacements | |||||
|
55441
|
55441
55434-01072-B0
Panel, Instrument Panel Finish, Lower Center
[05.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
55434-01072-B0 |
— | ||
|
55441
|
55441
55441-01021-B0
Box, Instrument Panel
[05.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
55441-01021-B0 |
— | ||
|
55441C
|
55441C
55441-02130-B1
Box, Instrument Panel Coin
[09.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
55441-02130-B1 |
— | ||
|
55441C
|
55441C
55441-20140-B7
Box, Instrument Panel
[05.2002 - 09.2002] ZZE13# DK.GRAY,TRIM13,14 |
55441-20140-B7 |
— | ||
| replacement | |||||
|
55441C
|
55441C
55441-20140-C0 Box, Instrument Panel Coin[05.2002 - 09.2002] ZZE13# DK.GRAY,TRIM13,14 |
55441-20140-C0 |
US $15.04 |
||
|
55441E
|
55441E
55441-02070-B1
Box, Instrument Panel
[05.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
55441-02070-B1 |
— | ||
|
55444A
|
55444A
55444-01020
Spring, Instrument Panel Box
[05.2002 -] ZZE13# ＮＯ．１ |
55444-01020 |
— | ||
|
55444A
|
55444A
55444-12080 Spring, Instrument Panel Box[05.2002 -] ZZE13# ＮＯ．２ |
55444-12080 |
from US $1.89 |
||
|
55444C
|
55444C
55444-01030 Spring, Instrument Panel Box[05.2002 -] ZZE13# ＮＯ．１ |
55444-01030 |
US $2.04 |
||
|
55444C
|
55444C
55444-02030 Spring, Instrument Panel Box[05.2002 -] ZZE13# ＮＯ．２ |
55444-02030 |
US $2.04 |
||
|
55445C
|
55445C
55445-01010
Plate, Instrument Panel Box
[05.2002 - 11.2002] ZZE13# |
55445-01010 |
— | ||
|
55445C
|
55445C
55445-01011 Plate, Instrument Panel Box[11.2002 -] ZZE13# |
55445-01011 |
US $3.49 |
||
|
55503B
|
55503B
90080-54038 Cushion(For Glove Compartment)[05.2002 -] ZZE13# |
90080-54038 |
US $1.46 |
||
|
55522B
|
55522B
55522-01040
Cover, Radio Tuner Opening
[05.2002 -] ZZE13# |
55522-01040 |
— | ||
|
55539C
|
55539C
55539-04040-B3
Cover, Spare Switch Hole
[05.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
55539-04040-B3 |
— | ||
|
55550
|
55550
55550-02090-B1
Door Assy, Glove Compartment
[05.2002 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
55550-02090-B1 |
— | ||
|
55560A
|
55560A
55560-02030-B1
Lock Assy, Glove Compartment Door
[05.2002 - 09.2003] ZZE13# DK.GRAY,TRIM13,14 |
55560-02030-B1 |
— | ||
| replacement | |||||
|
55560A
|
55560A
55560-02031-B1 Lock Assy, Glove Compartment Door[05.2002 - 09.2003] ZZE13# DK.GRAY,TRIM13,14 |
55560-02031-B1 |
US $17.47 |
||
|
55560A
|
55560A
55560-02031-B1 Lock Assy, Glove Compartment Door[09.2003 - 02.2004] ZZE13# DK.GRAY,TRIM13,14 |
55560-02031-B1 |
US $17.47 |
||
|
55650
|
55650
55650-01020
Register Assy, Instrument Panel, No.1
[05.2002 -] ZZE13# |
55650-01020 |
— | ||
|
55650C
|
55650C
55650-01020
Register Assy, Instrument Panel, No.1
[05.2002 -] ZZE13# |
55650-01020 |
— | ||
|
58971C
|
58971C
58971-47010
Lock, Console Compartment Door
[05.2002 -] ZZE13# |
58971-47010 |
— | ||
|
81942C
|
81942C
81942-01100 Sheet, Heater Control Name[05.2002 -] ZZE13# |
81942-01100 |
US $30.58 |
||
|
9016150007
|
9016150007
90161-50007 New Genuine Part |
90161-50007 |
US $0.52 |
||
|
9016720004
|
9016720004
90167-20004 New Genuine Part |
90167-20004 |
US $0.61 |
||
|
9016750022
|
9016750022
90167-50022 SCREW |
90167-50022 |
US $1.12 |
||
|
9018303026
|
9018303026
90183-03026 New Genuine Part |
90183-03026 |
US $0.96 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
||
|
9046805135
|
9046805135
90468-05135 Clip, Instrument Panel |
90468-05135 |
from US $0.96 |
||
|
9356053008
|
9356053008
93560-53008 New Genuine Part |
93560-53008 |
US $1.60 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
