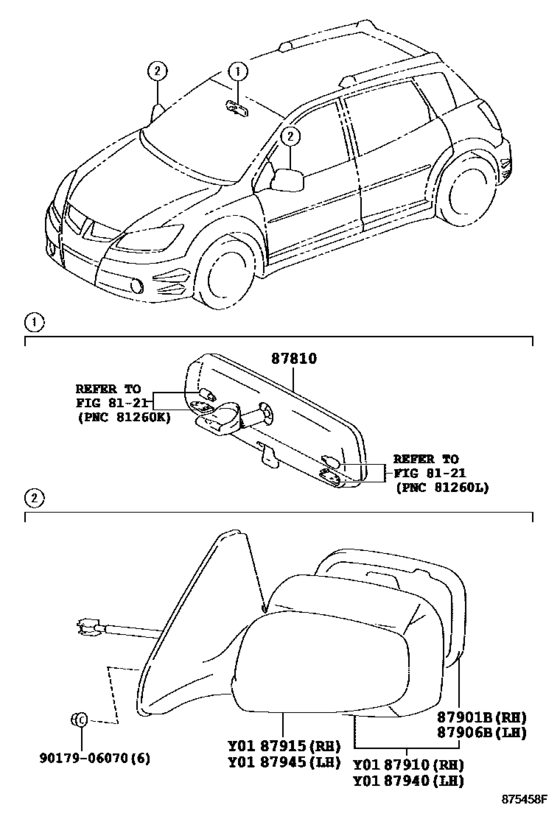

Mirror ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-02040 Mirror Assy, Inner Rear View[05.2002 -] ZZE13# |
87810-02040 |
US $157.25 |
||
|
87901B
|
87901B
87931-1E830
Mirror Sub-Assy, Outer Rear View, Rh
[05.2002 - 06.2002] ZZE13# |
87931-1E830 |
— | ||
|
87901B
|
87901B
87931-1H030 Mirror Sub-Assy, Outer Rear View, Rh[07.2002 -] ZZE13# |
87931-1H030 |
US $28.39 |
||
|
87906B
|
87906B
87961-1E670 Mirror Sub-Assy, Outer Rear View, Lh[05.2002 - 06.2002] ZZE13# |
87961-1E670 |
US $29.22 |
||
|
87906B
|
87906B
87961-1E760 Mirror Sub-Assy, Outer Rear View, Lh[07.2002 -] ZZE13# |
87961-1E760 |
US $28.38 |
||
|
87910
|
87910
87910-01090 Mirror Assy, Outer Rear View, Rh[02.2003 -] ZZE13# |
87910-01090 |
US $428.06 |
||
| replacement | |||||
|
87910
|
87910
87910-1H030 Mirror Assy, Outer Rear View, Rh[02.2003 -] ZZE13# |
87910-1H030 |
US $428.06 |
||
|
87910
|
87910
87910-1H030 Mirror Assy, Outer Rear View, Rh[05.2002 - 02.2003] ZZE13# |
87910-1H030 |
US $428.06 |
||
|
87915
|
87915
87915-01010-A0 Cover, Outer Mirror, Rh[02.2003 - 02.2004] ZZE137 SUPER WHITE 2,040 |
87915-01010-A0 |
US $26.64 |
||
| replacement | |||||
|
87915
|
87915
87915-12010-A1 Cover, Outer Mirror, Rh[02.2003 - 02.2004] ZZE137 SUPER WHITE 2,040 |
87915-12010-A1 |
US $41.41 |
||
|
87915
|
87915
87915-01010-B0 Cover, Outer Mirror, Rh[02.2003 - 02.2004] ZZE137 SILVER ME.,1C8 |
87915-01010-B0 |
US $26.64 |
||
| replacement | |||||
|
87915
|
87915
87915-12010-P5 Cover, Outer Mirror, Rh[02.2003 - 02.2004] ZZE137 SILVER ME.,1C8 |
87915-12010-P5 |
US $42.22 |
||
|
87915
|
87915
87915-01010-B1 Cover, Outer Mirror, Rh[05.2003 - 02.2004] ZZE13# CHARCOAL GRAY ME.,1E6 |
87915-01010-B1 |
US $42.52 |
||
| replacement | |||||
|
87915
|
87915
87915-12010-B6 Cover, Outer Mirror, Rh[05.2003 - 02.2004] ZZE13# CHARCOAL GRAY ME.,1E6 |
87915-12010-B6 |
US $42.66 |
||
|
87915
|
87915
87915-01010-C0 Cover, Outer Mirror, Rh[02.2003 - 02.2004] ZZE137 BLACK MC.,209 |
87915-01010-C0 |
US $26.64 |
||
| replacement | |||||
|
87915
|
87915
87915-12010-C2 Cover, Outer Mirror, Rh[02.2003 - 02.2004] ZZE137 BLACK MC.,209 |
87915-12010-C2 |
US $39.98 |
||
|
87915
|
87915
87915-01010-J0 Cover, Outer Mirror, Rh[05.2003 - 02.2004] ZZE13# DK.BLUE M.M.,8P4 |
87915-01010-J0 |
US $26.64 |
||
| replacement | |||||
|
87915
|
87915
87915-12010-J0 Cover, Outer Mirror, Rh[05.2003 - 02.2004] ZZE13# DK.BLUE M.M.,8P4 |
87915-12010-J0 |
US $26.18 |
||
|
87915
|
87915
87915-12010-A1 Cover, Outer Mirror, Rh[05.2002 - 02.2003] ZZE137 SUPER WHITE 2,040 |
87915-12010-A1 |
US $41.41 |
||
|
87915
|
87915
87915-12010-B5 Cover, Outer Mirror, Rh[01.2003 - 02.2003] ZZE136,138 SILVER ME.,1C8 ,KH9; ZZE137 SILVER ME.,1C8 |
87915-12010-B5 |
US $35.38 |
||
| replacement | |||||
|
87915
|
87915
87915-12010-P5 Cover, Outer Mirror, Rh[01.2003 - 02.2003] ZZE136,138 SILVER ME.,1C8 ,KH9; ZZE137 SILVER ME.,1C8 |
87915-12010-P5 |
US $42.22 |
||
|
87915
|
87915
87915-12010-C2 Cover, Outer Mirror, Rh[05.2002 - 02.2003] ZZE136,138 BLACK MC.,KJ1; ZZE137 BLACK MC.,209 |
87915-12010-C2 |
US $39.98 |
||
|
87940
|
87940
87940-01090 Mirror Assy, Outer Rear View, Lh[02.2003 -] ZZE13# |
87940-01090 |
US $428.06 |
||
| replacement | |||||
|
87940
|
87940
87940-1E760 Mirror Assy, Outer Rear View, Lh[02.2003 -] ZZE13# |
87940-1E760 |
US $428.06 |
||
|
87940
|
87940
87940-1E760 Mirror Assy, Outer Rear View, Lh[05.2002 - 02.2003] ZZE13# |
87940-1E760 |
US $428.06 |
||
|
87945
|
87945
87945-01010-A0 Cover, Outer Mirror, Lh[02.2003 - 02.2004] ZZE137 SUPER WHITE 2,040 |
87945-01010-A0 |
US $25.63 |
||
| replacement | |||||
|
87945
|
87945
87945-12010-A1 Cover, Outer Mirror, Lh[02.2003 - 02.2004] ZZE137 SUPER WHITE 2,040 |
87945-12010-A1 |
US $46.36 |
||
|
87945
|
87945
87945-01010-B0 Cover, Outer Mirror, Lh[02.2003 - 02.2004] ZZE137 SILVER ME.,1C8 |
87945-01010-B0 |
US $25.63 |
||
| replacement | |||||
|
87945
|
87945
87945-12010-P5 Cover, Outer Mirror, Lh[02.2003 - 02.2004] ZZE137 SILVER ME.,1C8 |
87945-12010-P5 |
US $40.62 |
||
|
87945
|
87945
87945-01010-B1
Cover, Outer Mirror, Lh
[05.2003 - 02.2004] ZZE13# CHARCOAL GRAY ME.,1E6 |
87945-01010-B1 |
— | ||
| replacement | |||||
|
87945
|
87945
87945-12010-B6
Cover, Outer Mirror, Lh
[05.2003 - 02.2004] ZZE13# CHARCOAL GRAY ME.,1E6 |
87945-12010-B6 |
— | ||
|
87945
|
87945
87945-01010-C0 Cover, Outer Mirror, Lh[02.2003 - 02.2004] ZZE137 BLACK MC.,209 |
87945-01010-C0 |
US $25.63 |
||
| replacement | |||||
|
87945
|
87945
87945-12010-C2 Cover, Outer Mirror, Lh[02.2003 - 02.2004] ZZE137 BLACK MC.,209 |
87945-12010-C2 |
US $38.30 |
||
|
87945
|
87945
87945-01010-J0 Cover, Outer Mirror, Lh[05.2003 - 02.2004] ZZE13# DK.BLUE M.M.,8P4 |
87945-01010-J0 |
US $25.63 |
||
|
87945
|
87945
87945-12010-A1 Cover, Outer Mirror, Lh[05.2002 - 02.2003] ZZE137 SUPER WHITE 2,040 |
87945-12010-A1 |
US $46.36 |
||
|
87945
|
87945
87945-12010-B5 Cover, Outer Mirror, Lh[01.2003 - 02.2003] ZZE136,138 SILVER ME.,1C8 ,KH9; ZZE137 SILVER ME.,1C8 |
87945-12010-B5 |
US $33.92 |
||
| replacement | |||||
|
87945
|
87945
87945-12010-P5 Cover, Outer Mirror, Lh[01.2003 - 02.2003] ZZE136,138 SILVER ME.,1C8 ,KH9; ZZE137 SILVER ME.,1C8 |
87945-12010-P5 |
US $40.62 |
||
|
87945
|
87945
87945-12010-C2 Cover, Outer Mirror, Lh[05.2002 - 02.2003] ZZE136,138 BLACK MC.,KJ1; ZZE137 BLACK MC.,209 |
87945-12010-C2 |
US $38.30 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
