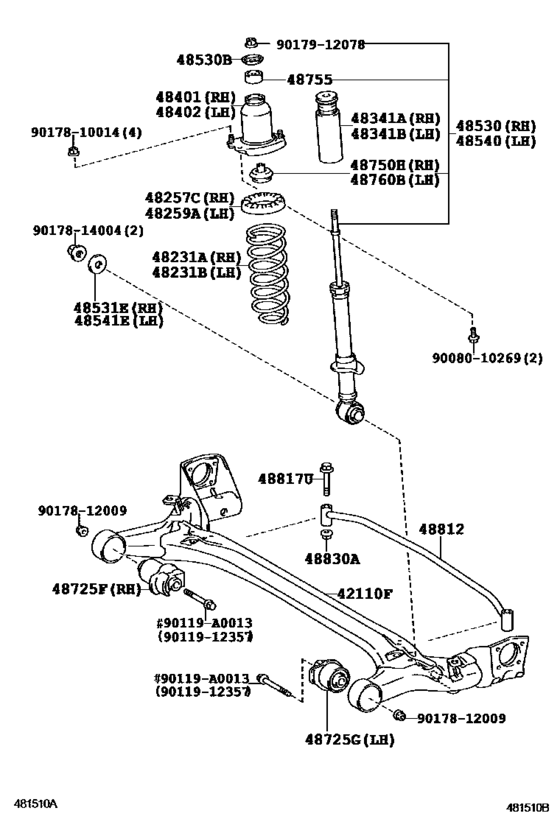

Rear Spring & Shock Absorber ([05.2002 - ] (0205- )ZZE136,137) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42110F
|
42110F
42101-01020 Beam Assy, Rear Axle[05.2002 -] ZZE137 |
42101-01020 |
US $1,129.86 |
||
|
48231A
|
48231A
48231-AG030 Spring, Coil, Rear Rh[05.2002 -] ZZE136,137 |
48231-AG030 |
US $125.22 |
||
|
48231B
|
48231B
48231-AG030 Spring, Coil, Rear Rh[05.2002 -] ZZE136,137 |
48231-AG030 |
US $125.22 |
||
|
48257C
|
48257C
48257-02040 Insulator, Rear Coil Spring, Upper Rh[05.2002 -] ZZE136,137 |
48257-02040 |
US $33.41 |
||
|
48259A
|
48259A
48257-02040 Insulator, Rear Coil Spring, Upper Rh[05.2002 -] ZZE136,137 |
48257-02040 |
US $33.41 |
||
|
48341A
|
48341A
48341-AB010 Bumper, Rear Spring, No.1 Rh[05.2002 -] ZZE136,137 |
48341-AB010 |
from US $16.95 |
||
|
48341B
|
48341B
48341-AB010 Bumper, Rear Spring, No.1 Rh[05.2002 -] ZZE136,137 |
48341-AB010 |
from US $16.95 |
||
|
48401
|
48401
48401-32020 Bracket Sub-Assy, Rear Spring, Front Rh[05.2002 -] ZZE136,137 |
48401-32020 |
from US $21.43 |
||
|
48402
|
48402
48403-32010 Bracket Sub-Assy, Rear Spring, Front Lh[05.2002 -] ZZE136,137 |
48403-32010 |
US $21.43 |
||
|
48530
|
48530
48530-A9150 Absorber Assy, Shock, Rear Rh[05.2002 -] ZZE137 マーク ４８５３０−ＡＧ０４０; ZZE136 マーク ４８５３０−ＡＧ０４０,Ｐ２１５／５０ＺＲ１７ ７Ｊ ＡＬ |
48530-A9150 |
US $116.48 |
||
| replacement | |||||
|
48530
|
48530
48530-A9540 Absorber Assy, Shock, Rear Rh[05.2002 -] ZZE137 マーク ４８５３０−ＡＧ０４０; ZZE136 マーク ４８５３０−ＡＧ０４０,Ｐ２１５／５０ＺＲ１７ ７Ｊ ＡＬ |
48530-A9540 |
US $125.22 |
||
|
48530B
|
48530B
90948-03021 Washer, Rear Shock Absorber Cushion, No.1[05.2002 -] ZZE13# |
90948-03021 |
from US $4.48 |
||
|
48531E
|
48531E
90560-14028 Retainer, Cushion, No.1(For Rear Shock Absorber)[05.2002 -] ZZE136,137 |
90560-14028 |
US $6.40 |
||
|
48540
|
48540
48530-A9150 Absorber Assy, Shock, Rear Rh[05.2002 -] ZZE137 マーク ４８５３０−ＡＧ０４０; ZZE136 マーク ４８５３０−ＡＧ０４０,Ｐ２１５／５０ＺＲ１７ ７Ｊ ＡＬ |
48530-A9150 |
US $116.48 |
||
| replacement | |||||
|
48540
|
48540
48530-A9540 Absorber Assy, Shock, Rear Rh[05.2002 -] ZZE137 マーク ４８５３０−ＡＧ０４０; ZZE136 マーク ４８５３０−ＡＧ０４０,Ｐ２１５／５０ＺＲ１７ ７Ｊ ＡＬ |
48530-A9540 |
US $125.22 |
||
|
48541E
|
48541E
90560-14028 Retainer, Cushion, No.1(For Rear Shock Absorber)[05.2002 -] ZZE136,137 |
90560-14028 |
US $6.40 |
||
|
48725F
|
48725F
48725-02230
Bush, Rear Axle Carrier, Rh
[05.2002 -] ZZE136,137 |
48725-02230 |
— | ||
|
48725G
|
48725G
48725-02230
Bush, Rear Axle Carrier, Rh
[05.2002 -] ZZE136,137 |
48725-02230 |
— | ||
|
48750H
|
48750H
48750-02050 Support Assy, Rear Suspension, Rh[05.2002 -] ZZE136,137 |
48750-02050 |
US $35.90 |
||
|
48755
|
48755
48755-02050 Support, Rear Suspension[05.2002 -] ZZE136,137 |
48755-02050 |
US $5.39 |
||
|
48760B
|
48760B
48750-02050 Support Assy, Rear Suspension, Rh[05.2002 -] ZZE136,137 |
48750-02050 |
US $35.90 |
||
|
48812
|
48812
48812-AB010 Bar, Stabilizer, Rear[05.2002 -] ZZE136,137 |
48812-AB010 |
US $138.32 |
||
| replacement | |||||
|
48812
|
48812
48812-AB011 Bar, Stabilizer, Rear[05.2002 -] ZZE136,137 |
48812-AB011 |
US $138.32 |
||
|
48817U
|
48817U
90105-14155
Bolt(For Rear Stabilizer)
[05.2002 -] ZZE136,137 |
90105-14155 |
— | ||
|
48830A
|
48830A
90178-14009 Nut(For Rear Stabilizer Link)[05.2002 -] ZZE136,137 |
90178-14009 |
from US $1.38 |
||
|
90119A0013
|
90119A0013
90119-A0013
New Genuine Part
|
90119-A0013 |
— | ||
|
9008010269
|
9008010269
90080-10269 New Genuine Part |
90080-10269 |
US $1.60 |
||
|
9011912357
|
9011912357
90119-12357 BOLT WWASHER |
90119-12357 |
from US $4.96 |
||
|
9017810014
|
9017810014
90178-10014 Nut(For Front Suspension Support) |
90178-10014 |
from US $1.21 |
||
|
9017812009
|
9017812009
90178-12009 Nut(For Suspension Lower Arm Shaft) |
90178-12009 |
US $1.92 |
||
|
9017814004
|
9017814004
90178-14004 NUT FLANGE |
90178-14004 |
US $4.16 |
||
|
9017912078
|
9017912078
90179-12078 New Genuine Part |
90179-12078 |
US $3.68 |
||
