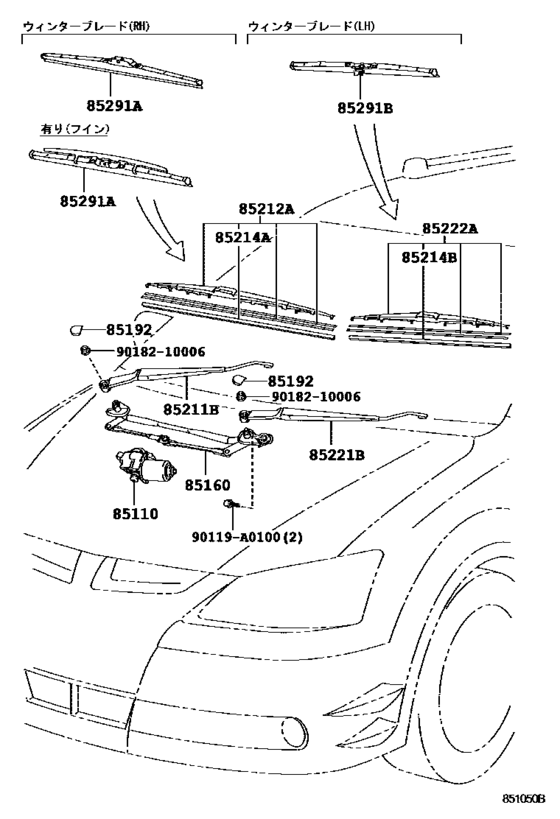

Windshield Wiper ([05.2002 - ] (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-1A050 Motor Assy, Windshield Wiper[05.2002 -] ZZE13# |
85110-1A050 |
US $407.68 |
||
|
85160
|
85160
85150-1A050 Link Assy, Windshield Wiper[05.2002 -] ZZE13# |
85150-1A050 |
US $136.86 |
||
|
85192
|
85192
85292-AA010 Cover, Windshield Wiper Arm[05.2002 -] ZZE13# |
85292-AA010 |
from US $2.38 |
||
|
85211B
|
85211B
85211-12390 Arm, Front Wiper, Rh[05.2002 -] ZZE13# |
85211-12390 |
US $71.34 |
||
|
85212A
|
85212A
85212-12360 Blade, Fr Wiper, Rh[05.2002 -] ZZE13# |
85212-12360 |
US $42.37 |
||
| replacement | |||||
|
85212A
|
85212A
85212-28041 Blade, Fr Wiper, Rh[05.2002 -] ZZE13# |
85212-28041 |
US $50.92 |
||
|
85214A
|
85214A
85214-48030
Rubber, Wiper, Rh
[05.2002 -] ZZE13# |
85214-48030 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-48031 Rubber, Wiper, Rh[05.2002 -] ZZE13# |
85214-48031 |
from US $11.49 |
||
|
85214B
|
85214B
85214-12300 Rubber, Wiper, Lh[05.2002 -] ZZE13# |
85214-12300 |
US $12.08 |
||
| replacement | |||||
|
85214B
|
85214B
85214-12301 Rubber, Wiper, Rh[05.2002 -] ZZE13# |
85214-12301 |
from US $9.24 |
||
|
85221B
|
85221B
85221-12360 Arm, Front Wiper, Lh[05.2002 -] ZZE13# |
85221-12360 |
US $74.26 |
||
|
85222A
|
85222A
85222-12770 Blade, Fr Wiper, Lh[05.2002 -] ZZE13# |
85222-12770 |
US $28.83 |
||
| replacement | |||||
|
85222A
|
85222A
85222-52121 Blade, Fr Wiper, Lh[05.2002 -] ZZE13# |
85222-52121 |
US $30.10 |
||
|
85291A
|
85291A
85291-22050
Blade Assy, Windshield Wiper
[05.2002 -] ZZE13# |
85291-22050 |
— | ||
| replacement | |||||
|
85291A
|
85291A
85291-33060 Blade, Front Wiper, Winter, Rh[05.2002 -] ZZE13# |
85291-33060 |
US $72.96 |
||
|
85291A
|
85291A
85291-30050 Blade Assy, Windshield Wiper[05.2002 -] ZZE13#; ZZE13# 有り（フィン） |
85291-30050 |
US $85.84 |
||
|
85291B
|
85291B
85291-60070 Blade Assy, Windshield Wiper[05.2002 -] ZZE13# |
85291-60070 |
US $32.67 |
||
|
90119A0100
|
90119A0100
90119-A0100
New Genuine Part
|
90119-A0100 |
— | ||
|
9018210006
|
9018210006
90182-10006 Nut (For Front Wiper Arm Setting) |
90182-10006 |
US $1.28 |
||
