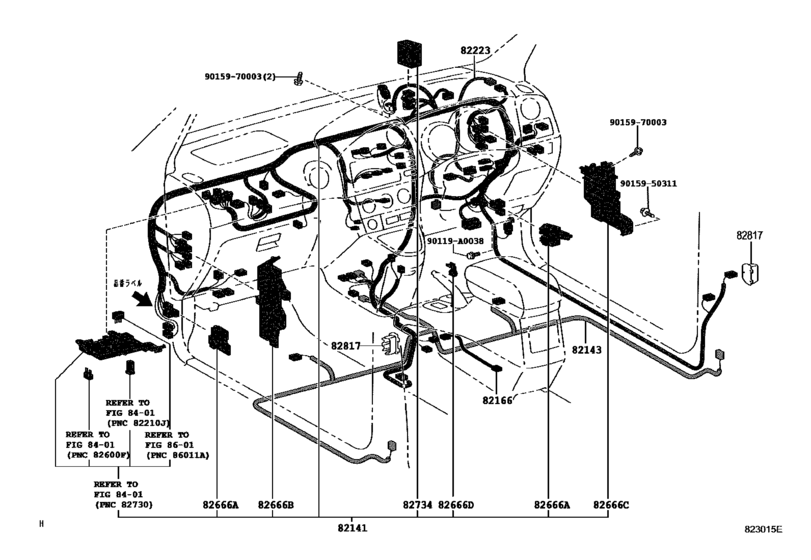

Wiring & Clamp ([05.2002 - ] ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ (0205- )) Diagram Toyota VOLTZ
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE137
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 05.2002
- To
- 02.2004
- Gear Shift Type
- 4FC
- Vehicle Model
- VOLTZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-01620 Wire, Instrument Panel[05.2002 - 05.2003] ZZE136,137 |
82141-01620 |
US $2,023.84 |
||
|
82141
|
82141
82141-01621
Wire, Instrument Panel
[05.2003 - 08.2003] ZZE136,137 |
82141-01621 |
— | ||
| replacement | |||||
|
82141
|
82141
82141-01622 Wire, Instrument Panel[05.2003 - 08.2003] ZZE136,137 |
82141-01622 |
US $2,038.40 |
||
|
82141
|
82141
82141-01622 Wire, Instrument Panel[08.2003 -] ZZE136,137 |
82141-01622 |
US $2,038.40 |
||
|
82143
|
82143
82143-01030 Wire, Instrument Panel, No.3[05.2002 -] ZZE13# |
82143-01030 |
US $100.46 |
||
|
82166
|
82166
82166-01010
Wire, Console Box
[05.2002 -] ZZE13# |
82166-01010 |
— | ||
|
82223
|
82223
82223-01020 Wire, Switch[05.2002 -] ZZE13#..4FC |
82223-01020 |
US $15.58 |
||
|
82666A
|
82666A
82666-02130
Holder, Connector No.2
[05.2002 -] ZZE13# |
82666-02130 |
— | ||
|
82666B
|
82666B
82666-12250 Holder, Connector No.3[05.2002 -] ZZE13# |
82666-12250 |
US $31.16 |
||
|
82666C
|
82666C
82666-13060 Holder, Connector No.4[05.2002 - 02.2004] ZZE13# |
82666-13060 |
US $51.40 |
||
|
82666D
|
82666D
82666-02160
Holder, Connector No.5
[05.2002 -] ZZE13# |
82666-02160 |
— | ||
|
82734
|
82734
82734-02020
Block, Center Junction
[05.2002 -] ZZE13# |
82734-02020 |
— | ||
|
82817
|
82817
82817-02190
Protector, Wiring Harness, No.1
[05.2002 -] ZZE13# 右側 |
82817-02190 |
— | ||
|
82817
|
82817
82817-02230
Protector, Wiring Harness, No.1
[05.2002 -] ZZE13# 左側 |
82817-02230 |
— | ||
|
90119A0038
|
90119A0038
90119-A0038
New Genuine Part
|
90119-A0038 |
— | ||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
