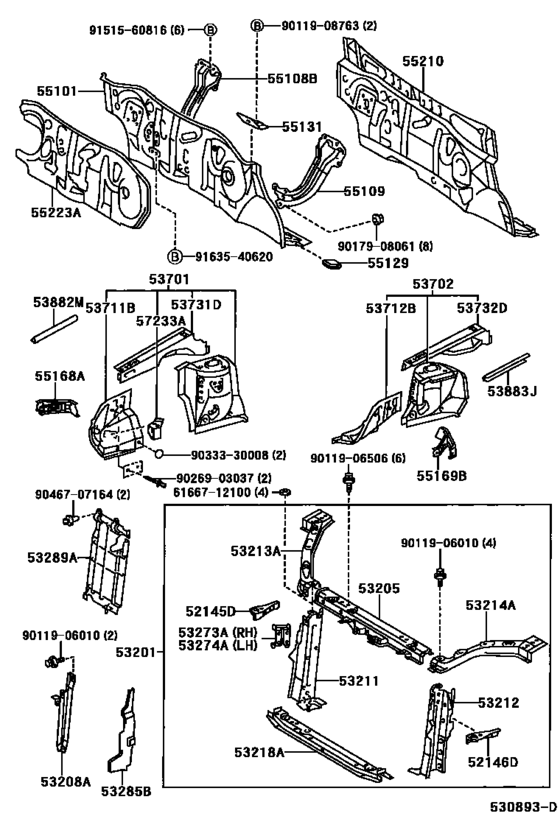

Front Fender Apron & Dash Panel ([01.2000 - ] (0001- )) Diagram Toyota WILL
- Year
- 2000 - 2001
- Sales region
- Japan
- Frame
- NCP19
- body
- SED
- ENGINE
- 2NZFE
- Model
- WILL VI
- From
- 01.2000
- To
- 12.2001
- Vehicle Model
- WILL VI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52145D
|
52145D
52145-52050 Bracket, Front Bumper Side Mounting, Rh[01.2000 -] NCP19 |
52145-52050 |
US $6.70 |
||
|
52146D
|
52146D
52146-52050 Bracket, Front Bumper Side Mounting, Lh[01.2000 -] NCP19 |
52146-52050 |
US $6.70 |
||
|
53201
|
53201
53210-52070 Support Sub-Assy, Radiator[01.2000 -] NCP19 |
53210-52070 |
US $390.21 |
||
|
53205
|
53205
53216-52010 Support Sub-Assy, Radiator, Upper[01.2000 -] NCP19 |
53216-52010 |
US $77.17 |
||
|
53208A
|
53208A
53208-52011 Support Sub-Assy, Hood Lock[01.2000 -] NCP19 |
53208-52011 |
US $25.92 |
||
|
53211
|
53211
53211-52010 Support, Radiator, Rh[01.2000 -] NCP19 |
53211-52010 |
US $51.98 |
||
|
53212
|
53212
53212-52010 Support, Radiator, Lh[01.2000 -] NCP19 |
53212-52010 |
US $51.98 |
||
|
53213A
|
53213A
53213-52010 Support, Radiator, Upper Rh[01.2000 -] NCP19 |
53213-52010 |
US $34.07 |
||
|
53214A
|
53214A
53214-52010 Support, Radiator, Upper Lh[01.2000 -] NCP19 |
53214-52010 |
US $34.07 |
||
|
53218A
|
53218A
53218-52010 Support, Radiator, Lower[01.2000 -] NCP19 |
53218-52010 |
US $119.88 |
||
|
53273A
|
53273A
53273-52010 Reinforcement, Radiator Support, Rh[01.2000 -] NCP19 |
53273-52010 |
US $11.56 |
||
|
53274A
|
53274A
53273-52010 Reinforcement, Radiator Support, Rh[01.2000 -] NCP19 |
53273-52010 |
US $11.56 |
||
|
53285B
|
53285B
53285-52040 Seal, Radiator Side Air, No.1[01.2000 -] NCP19 |
53285-52040 |
US $21.55 |
||
|
53289A
|
53289A
53289-52010 Cover, Radiator Support Opening[01.2000 -] NCP19 |
53289-52010 |
US $57.74 |
||
|
53701
|
53701
53701-52900 Apron Sub-Assy, Front Fender, Rh[01.2000 -] NCP19 |
53701-52900 |
US $196.56 |
||
| replacement | |||||
|
53701
|
53701
53701-52907 Apron Sub-Assy, Front Fender, Rh[01.2000 -] NCP19 |
53701-52907 |
US $196.56 |
||
|
53702
|
53702
53702-52900 Apron Sub-Assy, Front Fender, Lh[01.2000 -] NCP19 |
53702-52900 |
US $196.56 |
||
|
53711B
|
53711B
53711-52010 Apron, Front Fender, Front Rh[01.2000 -] NCP19 |
53711-52010 |
US $40.37 |
||
|
53712B
|
53712B
53712-52010 Apron, Front Fender, Front Lh[01.2000 -] NCP19 |
53712-52010 |
US $38.16 |
||
|
53731D
|
53731D
53731-52010 Member, Front Apron To Cowl Side, Upper Rh[01.2000 -] NCP19 |
53731-52010 |
US $32.61 |
||
|
53732D
|
53732D
53732-52010 Member, Front Apron To Cowl Side, Upper Lh[01.2000 -] NCP19 |
53732-52010 |
US $32.61 |
||
|
53882M
|
53882M
53882-52050 Seal, Front Fender[01.2000 -] NCP19 |
53882-52050 |
US $7.72 |
||
|
53883J
|
53883J
53883-52040 Seal, Front Fender, Lh[01.2000 -] NCP19 |
53883-52040 |
US $7.72 |
||
|
55101
|
55101
55101-52031 Panel Sub-Assy, Dash[01.2000 -] NCP19 |
55101-52031 |
US $339.25 |
||
|
55108B
|
55108B
55108-52030 Brace Sub-Assy, Dash To Frame, Rh[01.2000 -] NCP19 |
55108-52030 |
US $53.29 |
||
|
55109
|
55109
55109-52030 Brace Sub-Assy, Dash To Frame, Lh[01.2000 -] NCP19 |
55109-52030 |
US $53.87 |
||
|
55129
|
55129
55129-52010 Cover, Dash Panel Hole[01.2000 -] NCP19 |
55129-52010 |
US $8.74 |
||
|
55131
|
55131
55132-52010 Reinforcement, Dash Panel[01.2000 -] NCP19 |
55132-52010 |
US $15.72 |
||
|
55168A
|
55168A
53707-52010 Bracket, Front Fender Mounting, Rh[01.2000 -] NCP19 |
53707-52010 |
US $19.95 |
||
|
55169B
|
55169B
53708-52010 Bracket, Front Fender Mounting, Lh[01.2000 -] NCP19 |
53708-52010 |
US $19.95 |
||
|
55210
|
55210
55210-52030 Insulator Assy, Dash Panel[01.2000 -] NCP19 |
55210-52030 |
US $340.70 |
||
| replacement | |||||
|
55210
|
55210
55210-52033 Insulator Assy, Dash Panel[01.2000 -] NCP19 |
55210-52033 |
US $343.62 |
||
|
55223A
|
55223A
55223-52010 Insulator, Dash Panel, Outer[01.2000 -] NCP19 |
55223-52010 |
US $63.48 |
||
|
57233A
|
57233A
57233-52010 Retainer, Engine Front Support, Rh[01.2000 -] NCP19 |
57233-52010 |
US $18.20 |
||
| replacement | |||||
|
57233A
|
57233A
57233-52011 Retainer, Engine Front Support, Rh[01.2000 -] NCP19 |
57233-52011 |
US $12.38 |
||
|
6166712100
|
6166712100
61667-12100 Seal, Front Fender |
61667-12100 |
US $1.76 |
||
|
9011906010
|
9011906010
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.76 |
||
|
9011906506
|
9011906506
90119-06506 New Genuine Part |
90119-06506 |
US $1.92 |
||
|
9011908763
|
9011908763
90119-08763 New Genuine Part |
90119-08763 |
US $3.04 |
||
|
9017908061
|
9017908061
90179-08061 Nut (For Connecting Rod Swivel) |
90179-08061 |
from US $0.82 |
||
|
9026903037
|
9026903037
90269-03037 RIVET |
90269-03037 |
US $1.76 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.29 |
||
|
9151560816
|
9151560816
91515-60816 New Genuine Part |
91515-60816 |
US $1.89 |
||
| replacement | |||||
|
9151560816
|
9151560816
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
9163540620
|
9163540620
91635-40620 New Genuine Part |
91635-40620 |
US $0.96 |
||
