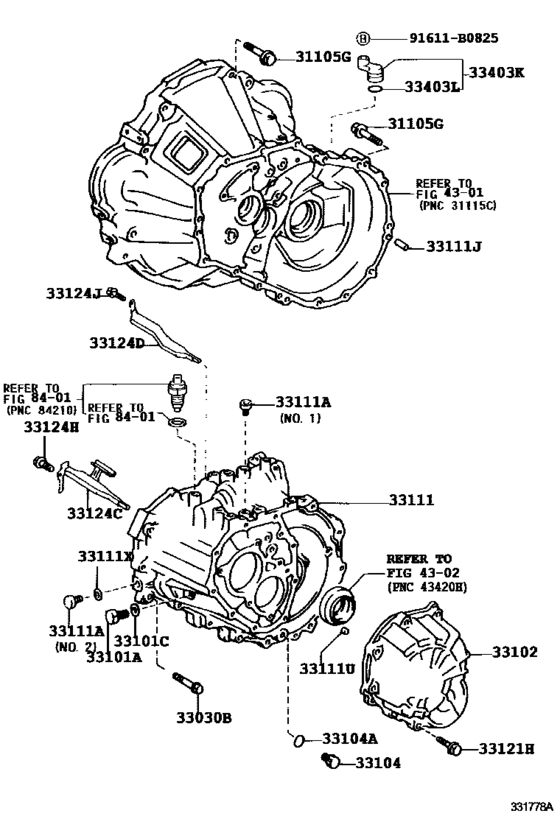

Clutch Housing & Transmission Case (Mtm) ([01.2002 - ] C60 (0201- )MTM) Diagram Toyota WILL
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE128
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- Model
- WILL VS
- From
- 01.2002
- To
- 04.2004
- No.of Doors
- 5D
- Vehicle Model
- WILL VS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
90119-12168 Bolt(For Transaxle & Engine Setting)[01.2002 -] ZZE128..MTM ＊１２−１．２５ＰＸ５５−３０ |
90119-12168 |
from US $2.01 |
||
|
31105G
|
31105G
91642-81055 Bolt(For Transaxle & Engine Setting)[01.2002 -] ZZE128..MTM ＊１０−１．２５ＰＸ５５−３０ |
91642-81055 |
US $3.94 |
||
|
33030B
|
33030B
90105-08086 Bolt(For Transaxle Case & Transmission Case Setting)[01.2002 - 04.2004] ZZE128..MTM ＊８−１．２５ＰＸ４５−２７．５ |
90105-08086 |
US $1.97 |
||
|
33030B
|
33030B
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[01.2002 - 04.2004] ZZE128..MTM ＊８−１．２５ＰＸ５０−３０ |
90105-08353 |
from US $0.92 |
||
|
33101A
|
33101A
90341-18038 Plug(For Manual Transmission Filler)[01.2002 - 04.2004] ZZE128..MTM |
90341-18038 |
from US $3.94 |
||
|
33101C
|
33101C
90430-18008 Gasket[01.2002 - 04.2004] ZZE128..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.2002 - 04.2004] ZZE128..MTM |
90430-T0021 |
US $1.01 |
||
|
33102
|
33102
33102-20050 Cover Sub-Assy, Manual Transmission Case[01.2002 - 04.2004] ZZE128..MTM |
33102-20050 |
US $284.79 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[01.2002 - 04.2004] ZZE128..MTM |
90341-18006 |
from US $3.23 |
||
|
33104A
|
33104A
90430-18008 Gasket[01.2002 - 04.2004] ZZE128..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.2002 - 04.2004] ZZE128..MTM |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33111-12230 Case, Manual Transmission[01.2002 - 01.2003] ZZE128..MTM |
33111-12230 |
US $512.51 |
||
| replacements | |||||
|
33111
|
33111
33111-12250 Case, Manual Transmission[01.2002 - 01.2003] ZZE128..MTM |
33111-12250 |
US $513.97 |
||
|
33111
|
33111
90389-15009 Bush, Bimetal Formed (For Shift & Select Lever Shaft)[01.2002 - 01.2003] ZZE128..MTM |
90389-15009 |
US $2.33 |
||
|
33111
|
33111
90101-08166 Bolt, Stud Or Bolt(For Transmission Case)[01.2002 - 01.2003] ZZE128..MTM |
90101-08166 |
US $1.46 |
||
|
33111
|
33111
90201-08049 Washer(For Rear Wheel Cylinder)[01.2002 - 01.2003] ZZE128..MTM |
90201-08049 |
US $1.10 |
||
|
33111
|
33111
33111-12231 Case, Manual Transmission[01.2003 - 04.2004] ZZE128..MTM |
33111-12231 |
US $513.97 |
||
| replacements | |||||
|
33111
|
33111
33111-12250 Case, Manual Transmission[01.2003 - 04.2004] ZZE128..MTM |
33111-12250 |
US $513.97 |
||
|
33111
|
33111
90101-08166 Bolt, Stud Or Bolt(For Transmission Case)[01.2003 - 04.2004] ZZE128..MTM |
90101-08166 |
US $1.46 |
||
|
33111
|
33111
90201-08049 Washer(For Rear Wheel Cylinder)[01.2003 - 04.2004] ZZE128..MTM |
90201-08049 |
US $1.10 |
||
|
33111A
|
33111A
90341-10065 Plug, Straight, No.1[01.2002 - 04.2004] ZZE128..MTM ＮＯ．１ |
90341-10065 |
US $3.94 |
||
|
33111A
|
33111A
90341-18023 Plug, W/head Straight Screw, No.1[01.2002 - 04.2004] ZZE128..MTM ＮＯ．２ |
90341-18023 |
from US $3.40 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[01.2002 - 04.2004] ZZE128..MTM 長さ＝２３，外径＝８ |
90250-08054 |
from US $0.98 |
||
|
33111U
|
33111U
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[01.2002 - 04.2004] ZZE128..MTM 長さ＝１１，外径＝１１ |
90253-11001 |
US $2.15 |
||
|
33111X
|
33111X
90430-18008 Gasket[01.2002 - 04.2004] ZZE128..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.2002 - 04.2004] ZZE128..MTM |
90430-T0021 |
US $1.01 |
||
|
33121H
|
33121H
91611-60835 Bolt(For Clutch Release Cylinder Setting)[01.2002 - 04.2004] ZZE128..MTM |
91611-60835 |
from US $1.61 |
||
|
33124C
|
33124C
33124-20050 Pipe, Oil Receiver, No.1(Mtm)[01.2002 - 04.2004] ZZE128..MTM |
33124-20050 |
US $5.59 |
||
|
33124D
|
33124D
33124-20060 Pipe, Oil Receiver, No.2(Mtm)[01.2002 - 04.2004] ZZE128..MTM |
33124-20060 |
US $13.29 |
||
|
33124H
|
33124H
91611-G0820 Bolt[01.2002 - 04.2004] ZZE128..MTM |
91611-G0820 |
from US $1.21 |
||
|
33124J
|
33124J
91611-G0820 Bolt[01.2002 - 04.2004] ZZE128..MTM |
91611-G0820 |
from US $1.21 |
||
|
33403K
|
33403K
33403-35230 Cover Sub-Assy, Speedometer Driven Hole[01.2002 -] ZZE128..MTM |
33403-35230 |
from US $19.82 |
||
|
33403L
|
33403L
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[01.2002 -] ZZE128..MTM |
96711-24030 |
from US $2.20 |
||
|
91611B0825
|
91611B0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
