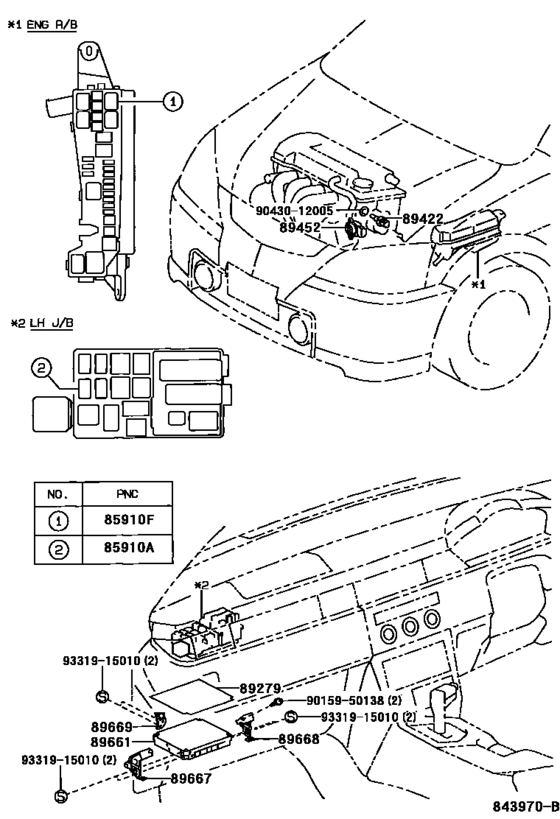

Electronic Fuel Injection System ([04.2001 - ] (0104- )ZZE12#) Diagram Toyota WILL
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE128
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- Model
- WILL VS
- From
- 01.2002
- To
- 04.2004
- No.of Doors
- 5D
- Vehicle Model
- WILL VS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02020 Relay, Ignition, No.1[04.2001 -] NZE127,ZZE12# |
90987-02020 |
US $46.53 |
||
|
85910F
|
85910F
90987-02020 Relay, Ignition, No.1[04.2001 -] NZE127,ZZE12# |
90987-02020 |
US $46.53 |
||
|
89279
|
89279
89279-12160 Cover, Engine Control Computer[04.2001 - 12.2002] NZE127,ZZE128 |
89279-12160 |
US $9.32 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[04.2001 -] NZE127,ZZE12# |
89422-35010 |
from US $44.67 |
||
|
89452
|
89452
89452-35020 Sensor, Throttle Position (For E.f.i.)[04.2001 - 04.2004] ZZE128 |
89452-35020 |
from US $76.38 |
||
|
89661
|
89661
89666-12260 Computer, Engine Control[01.2002 -] ZZE128..MTM |
89666-12260 |
US $1,645.28 |
||
|
89667
|
89667
89667-12200 Bracket, Engine Control Computer[04.2001 - 12.2002] NZE127,ZZE128 |
89667-12200 |
US $11.07 |
||
|
89668
|
89668
89668-12110 Bracket, Engine Control Computer, No.2[04.2001 - 12.2002] NZE127,ZZE128 |
89668-12110 |
US $11.65 |
||
|
89669
|
89669
89669-12030 Bracket, Engine Control Computer, No.3[04.2001 -] NZE127,ZZE12# |
89669-12030 |
US $5.68 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.25 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
