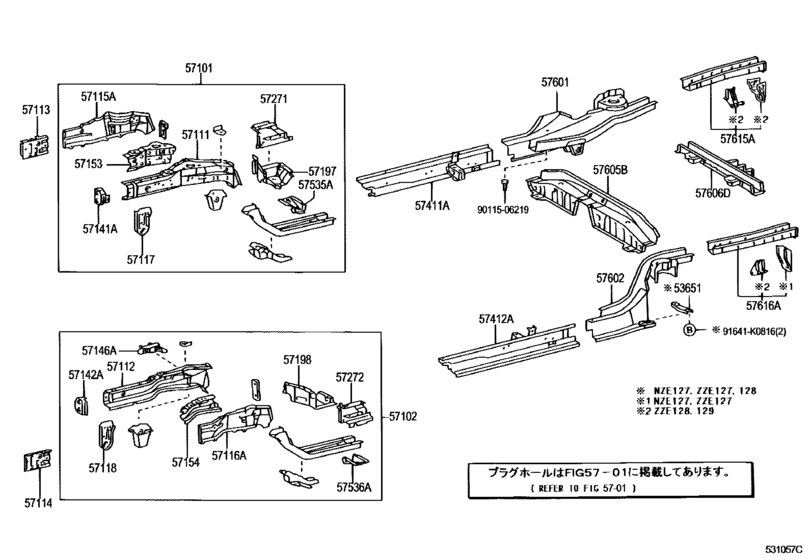

Floor Side Member ([04.2001 - ] (0104- )) Diagram Toyota WILL
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE128
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- Model
- WILL VS
- From
- 01.2002
- To
- 04.2004
- No.of Doors
- 5D
- Vehicle Model
- WILL VS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53651
|
53651
53651-32010 Brace, Rear Floor Side Member[04.2001 - 04.2004] NZE127,ZZE127,128 |
53651-32010 |
US $5.39 |
||
|
57101
|
57101
57101-1A250 Member Sub-Assy, Front Side, Rh[04.2001 - 04.2004] NZE127,ZZE12# |
57101-1A250 |
US $930.38 |
||
|
57102
|
57102
57102-1A200 Member Sub-Assy, Front Side, Lh[04.2001 - 04.2004] ZZE128..MTM;NZE127,ZZE127,129 |
57102-1A200 |
US $898.35 |
||
|
57111
|
57111
57111-12240 Member, Front Side, Rh[07.2001 - 04.2004] NZE127,ZZE12# |
57111-12240 |
from US $205.30 |
||
|
57112
|
57112
57112-12170 Member, Front Side, Lh[04.2001 - 04.2004] NZE127,ZZE12# |
57112-12170 |
from US $203.84 |
||
|
57113
|
57113
57113-12190 Extension, Front Side Member, Rh[04.2001 - 04.2004] NZE127,ZZE12# |
57113-12190 |
US $23.59 |
||
|
57114
|
57114
57114-12160 Extension, Front Side Member, Lh[04.2001 - 04.2004] NZE127,ZZE12# |
57114-12160 |
US $23.59 |
||
|
57115A
|
57115A
57115-12080 Plate, Front Side Member, Outer Rh[04.2001 - 04.2004] NZE127,ZZE12# |
57115-12080 |
from US $80.08 |
||
|
57116A
|
57116A
57116-12080 Plate, Front Side Member, Outer Lh[04.2001 - 04.2004] NZE127,ZZE12# |
57116-12080 |
US $74.26 |
||
|
57117
|
57117
57117-12130 Plate Sub-Assy, Front Side Member, Front Rh[04.2001 - 04.2004] NZE127,ZZE12# |
57117-12130 |
from US $19.66 |
||
|
57118
|
57118
57118-12130 Plate Sub-Assy, Front Side Member, Front Lh[04.2001 - 04.2004] NZE127,ZZE12# |
57118-12130 |
US $19.66 |
||
|
57141A
|
57141A
57141-12050 Support, Front Bumper Arm, Rh[04.2001 - 04.2004] NZE127,ZZE12# |
57141-12050 |
US $25.92 |
||
|
57142A
|
57142A
57142-12060 Support, Front Bumper Arm, Lh[04.2001 - 04.2004] NZE127,ZZE12# |
57142-12060 |
US $28.54 |
||
|
57146A
|
57146A
57146-12020 Reinforcement, Front Side Member, Rear Lh[04.2001 - 04.2004] NZE127,ZZE12# |
57146-12020 |
US $7.28 |
||
|
57153
|
57153
57016-12080 Reinforcement, Front Side Member, No.2 Rh[07.2001 - 04.2004] NZE127,ZZE12# |
57016-12080 |
from US $56.49 |
||
|
57154
|
57154
57017-12060 Reinforcement, Front Side Member, No.2 Lh[04.2001 - 04.2004] ZZE128..MTM;NZE127,ZZE127,129 |
57017-12060 |
US $45.86 |
||
|
57197
|
57197
57197-12030 Box, Torque, Front Rh[04.2001 - 04.2004] NZE127,ZZE12# |
57197-12030 |
US $52.85 |
||
|
57198
|
57198
57198-12030 Box, Torque, Front Lh[04.2001 - 04.2004] NZE127,ZZE12# |
57198-12030 |
US $52.85 |
||
|
57271
|
57271
57271-13020 Extension, Steering Gear Box Support Member, Rh[04.2001 - 04.2004] NZE127,ZZE12# |
57271-13020 |
US $47.76 |
||
|
57272
|
57272
57272-13020 Extension, Steering Gear Box Suport Member, Lh[04.2001 - 04.2004] NZE127,ZZE12# |
57272-13020 |
US $47.76 |
||
|
57411A
|
57411A
57401-12580 Member, Floor Side, Inner Rh[04.2001 - 04.2004] NZE127,ZZE12# |
57401-12580 |
US $211.12 |
||
|
57412A
|
57412A
57402-12580 Member, Floor Side, Inner Lh[04.2001 - 04.2004] NZE127,ZZE12# |
57402-12580 |
US $211.12 |
||
|
57535A
|
57535A
57535-13010 Brace, Front Floor, Rh[04.2001 - 04.2004] NZE127,ZZE12# |
57535-13010 |
US $15.58 |
||
|
57536A
|
57536A
57536-13010 Brace, Front Floor, Lh[04.2001 - 04.2004] NZE127,ZZE12# |
57536-13010 |
US $15.58 |
||
|
57601
|
57601
57601-12952 Member Sub-Assy, Rear Floor Side, Rh[04.2001 - 12.2002] ZZE128 |
57601-12952 |
US $451.36 |
||
|
57602
|
57602
57602-12959 Member Sub-Assy, Rear Floor Side, Lh[04.2001 - 12.2002] ZZE128 |
57602-12959 |
US $451.36 |
||
|
57605B
|
57605B
57605-12180 Member Sub-Assy, Rear Floor Cross, No.1[04.2001 - 04.2004] NZE127,ZZE127,128 |
57605-12180 |
US $286.83 |
||
|
57606D
|
57606D
57606-13140 Member Sub-Assy, Rear Absorber Mounting[04.2001 - 04.2004] ZZE128 |
57606-13140 |
US $218.40 |
||
|
57615A
|
57615A
57615-13903 Member, Rear Floor Side, Rear Rh[04.2001 - 04.2004] ZZE128,129 |
57615-13903 |
US $120.85 |
||
|
57615A
|
57615A
57615-13914 Member, Rear Floor Side, Rear Rh[12.2002 - 04.2004] ZZE128,129 ｶﾝﾚｲﾁ ｼﾖｳ |
57615-13914 |
US $87.36 |
||
|
57616A
|
57616A
57616-13904 Member, Rear Floor Side, Rear Lh[04.2001 - 04.2004] ZZE128,129 |
57616-13904 |
US $120.85 |
||
|
57616A
|
57616A
57616-13913 Member, Rear Floor Side, Rear Lh[12.2002 - 04.2004] ZZE128,129 ｶﾝﾚｲﾁ ｼﾖｳ |
57616-13913 |
US $87.36 |
||
|
91641K0816
|
91641K0816
91641-K0816 BOLT WWASHER |
91641-K0816 |
US $2.33 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.43 |
