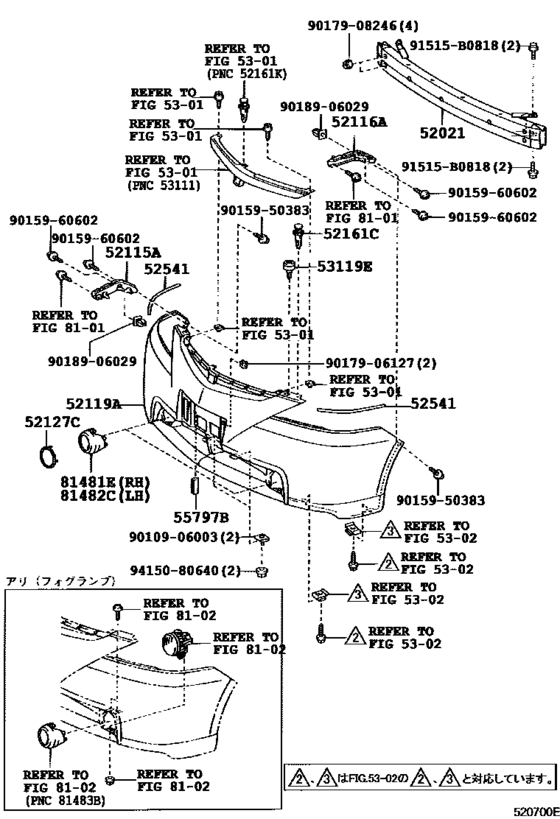

Front Bumper & Bumper Stay ([04.2001 - ] (0104- )) Diagram Toyota WILL
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE128
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- Model
- WILL VS
- From
- 01.2002
- To
- 04.2004
- No.of Doors
- 5D
- Vehicle Model
- WILL VS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-12200 Reinforcement Sub-Assy, Front Bumper[04.2001 - 04.2004] NZE127,ZZE12# |
52021-12200 |
from US $147.21 |
||
|
52115A
|
52115A
52115-12410 Support, Front Bumper Side, Rh[04.2001 - 04.2004] NZE127,ZZE12# |
52115-12410 |
US $21.13 |
||
|
52116A
|
52116A
52116-12370
Support, Front Bumper Side, Lh
[04.2001 - 04.2004] NZE127,ZZE12# |
52116-12370 |
— | ||
|
52119A
|
52119A
52119-1E780-A0 Cover, Front Bumper[01.2002 - 04.2004] NZE127,ZZE12# SUPER WHITE 2,040 |
52119-1E780-A0 |
US $1,058.51 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E932 Cover, Front Bumper[01.2002 - 04.2004] NZE127,ZZE12# SUPER WHITE 2,040 |
52119-1E932 |
from US $292.27 |
||
|
52119A
|
52119A
52119-1E780-B0 Cover, Front Bumper[04.2001 - 04.2004] NZE127,ZZE12# SILVER ME.,1D0 |
52119-1E780-B0 |
US $1,058.51 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E932 Cover, Front Bumper[04.2001 - 04.2004] NZE127,ZZE12# SILVER ME.,1D0 |
52119-1E932 |
from US $292.27 |
||
|
52119A
|
52119A
52119-1E780-C0 Cover, Front Bumper[04.2001 - 04.2004] NZE127,ZZE12# BLACK,202 |
52119-1E780-C0 |
US $1,058.51 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E932 Cover, Front Bumper[04.2001 - 04.2004] NZE127,ZZE12# BLACK,202 |
52119-1E932 |
from US $292.27 |
||
|
52119A
|
52119A
52119-1E780-D1 Cover, Front Bumper[02.2002 - 04.2002] ZZE128..MTM ﾚﾂﾄﾞｽﾍﾟｼﾔﾙ *(R),SUPER RED 5,3P0 |
52119-1E780-D1 |
US $1,058.51 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E932 Cover, Front Bumper[02.2002 - 04.2002] ZZE128..MTM ﾚﾂﾄﾞｽﾍﾟｼﾔﾙ *(R),SUPER RED 5,3P0 |
52119-1E932 |
from US $292.27 |
||
|
52119A
|
52119A
52119-1E780-D2 Cover, Front Bumper[08.2002 - 04.2004] NZE127,ZZE12# SUPER RED II,3E5 |
52119-1E780-D2 |
US $1,058.51 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E932 Cover, Front Bumper[08.2002 - 04.2004] NZE127,ZZE12# SUPER RED II,3E5 |
52119-1E932 |
from US $292.27 |
||
|
52119A
|
52119A
52119-1E780-E0 Cover, Front Bumper[08.2002 - 04.2004] NZE127,ZZE12# BEIGE ME.,4P7 |
52119-1E780-E0 |
US $1,058.51 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E932 Cover, Front Bumper[08.2002 - 04.2004] NZE127,ZZE12# BEIGE ME.,4P7 |
52119-1E932 |
from US $292.27 |
||
|
52119A
|
52119A
52119-1E780-F0 Cover, Front Bumper[01.2002 - 08.2002] NZE127,ZZE12# YELLOW M.M.,584 |
52119-1E780-F0 |
US $1,058.51 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E932 Cover, Front Bumper[01.2002 - 08.2002] NZE127,ZZE12# YELLOW M.M.,584 |
52119-1E932 |
from US $292.27 |
||
|
52119A
|
52119A
52119-1E780-J1 Cover, Front Bumper[01.2002 - 08.2002] NZE127,ZZE12# BLUE M.M.,8Q1 |
52119-1E780-J1 |
US $1,058.51 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E932 Cover, Front Bumper[01.2002 - 08.2002] NZE127,ZZE12# BLUE M.M.,8Q1 |
52119-1E932 |
from US $292.27 |
||
|
52119A
|
52119A
52119-1E780-K0 Cover, Front Bumper[04.2001 - 04.2004] NZE127,ZZE12# DARK PURPLE MC.,946 |
52119-1E780-K0 |
US $1,058.51 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1E932 Cover, Front Bumper[04.2001 - 04.2004] NZE127,ZZE12# DARK PURPLE MC.,946 |
52119-1E932 |
from US $292.27 |
||
|
52161C
|
52161C
52161-16010 Clip[04.2001 - 04.2004] NZE127,ZZE12# |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[04.2001 - 04.2004] NZE127,ZZE12# |
52161-0K040 |
from US $1.50 |
||
|
52161C
|
52161C
52161-02020 Clip[04.2001 - 04.2004] NZE127,ZZE12# |
52161-02020 |
US $5.27 |
||
|
52541
|
52541
52541-12020 Protector, Front Bumper[04.2001 - 04.2004] NZE127,ZZE12# |
52541-12020 |
US $2.87 |
||
|
53119E
|
53119E
53119-12150 Cover, Front Bumper Side(For Gllile Guard)[04.2001 - 04.2004] NZE127,ZZE12# |
53119-12150 |
from US $7.68 |
||
|
55797B
|
55797B
55797-46010 Seal, Cowl Water Extract[04.2001 - 04.2004] NZE127,ZZE12# |
55797-46010 |
US $4.12 |
||
|
91515B0818
|
91515B0818
91515-B0818 New Genuine Part |
91515-B0818 |
US $1.97 |
||
|
9010906003
|
9010906003
90109-06003 BOLT |
90109-06003 |
US $2.33 |
||
|
9015950383
|
9015950383
90159-50383 SCREW WWASHER |
90159-50383 |
US $1.97 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
|
9017908246
|
9017908246
90179-08246
NUT
|
90179-08246 |
— | ||
| replacement | |||||
|
9017908246
|
9017908246
90179-08068 NUT |
90179-08068 |
from US $0.80 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
from US $0.84 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.74 |
||
