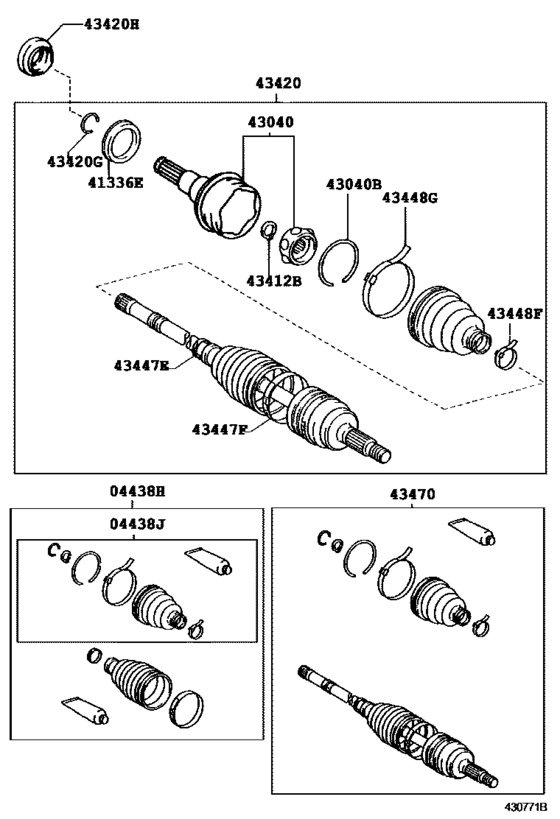

Front Drive Shaft ([04.2001 - ] ﾚﾌﾄ (0104- )ZZE128) Diagram Toyota WILL
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE128
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- Model
- WILL VS
- From
- 01.2002
- To
- 04.2004
- No.of Doors
- 5D
- Vehicle Model
- WILL VS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04438-12580 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2001 - 04.2004] ZZE128..MTM |
04438-12580 |
US $145.60 |
||
|
04438J
|
04438J
04438-12570 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.2001 - 04.2004] ZZE128..MTM |
04438-12570 |
US $90.27 |
||
|
41336E
|
41336E
41336-32020 Cover, Dust(For Differential Side Gear Shaft)[04.2001 - 04.2004] ZZE128..MTM |
41336-32020 |
US $4.02 |
||
|
43040
|
43040
43040-20070 Joint Assy, Front Drive Inboard, Lh[04.2001 - 04.2004] ZZE128..MTM |
43040-20070 |
US $355.26 |
||
|
43040B
|
43040B
90521-79001 Ring, Hole Snap[04.2001 - 04.2004] ZZE128..MTM |
90521-79001 |
US $3.67 |
||
|
43412B
|
43412B
90520-25034 Ring, Snap (For Rear Drive Shaft Outboard Joint)[04.2001 - 04.2004] ZZE128..MTM |
90520-25034 |
US $1.22 |
||
|
43420
|
43420
43420-12440 Shaft Assy, Front Drive, Lh[01.2002 - 04.2004] ZZE128..MTM |
43420-12440 |
US $960.96 |
||
|
43420G
|
43420G
90521-27005 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[04.2001 - 04.2004] ZZE129;ZZE128..MTM |
90521-27005 |
from US $1.66 |
||
|
43420H
|
43420H
90311-35044
Oil Seal, Rear Drive Shaft, Lh
[01.2002 - 04.2004] ZZE128..MTM |
90311-35044 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-35064 Oil Seal, Rear Drive Shaft, Lh[01.2002 - 04.2004] ZZE128..MTM |
90311-35064 |
from US $7.06 |
||
|
43447E
|
43447E
90949-01A65 Clamp (For Front Axle Outboard Joint Boot Rh)[04.2001 - 04.2004] ZZE128 |
90949-01A65 |
US $3.20 |
||
|
43447F
|
43447F
42345-12080
Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
[04.2001 - 04.2004] ZZE128 |
42345-12080 |
— | ||
|
43448F
|
43448F
90949-01108 Clamp (For Rear Drive Shaft Outboard Joint Boot)[01.2002 - 04.2004] ZZE128 |
90949-01108 |
US $3.32 |
||
|
43448G
|
43448G
42346-22010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[01.2002 - 04.2004] ZZE128 |
42346-22010 |
US $6.64 |
||
|
43470
|
43470
43470-80007 Shaft Assy, Front Drive Outboard Joint[01.2002 - 04.2004] ZZE128..MTM |
43470-80007 |
US $636.27 |
||
