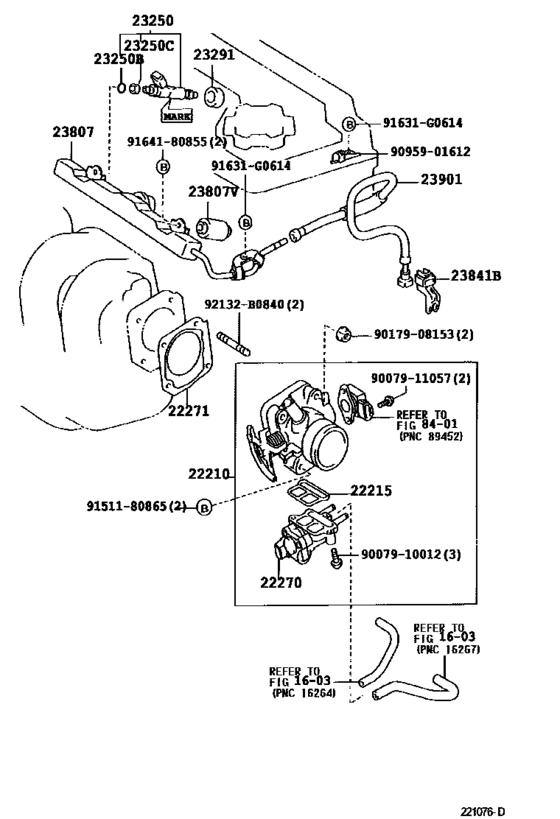

Fuel Injection System ([04.2001 - ] (0104- )2ZZGE) Diagram Toyota WILL
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE128
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- Model
- WILL VS
- From
- 01.2002
- To
- 04.2004
- No.of Doors
- 5D
- Vehicle Model
- WILL VS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-22110 Body Assy, Throttle[04.2001 - 03.2004] 2ZZGE..ZZE128 |
22210-22110 |
US $1,221.58 |
||
|
22215
|
22215
22215-7A680 Gasket, Throttle Body Cover[04.2001 - 03.2004] 2ZZGE..ZZE128 |
22215-7A680 |
from US $3.32 |
||
|
22270
|
22270
22270-22020 Valve Assy, Idle Speed Control(For Thlottle Body)[04.2001 - 03.2003] 2ZZGE..ZZE128 |
22270-22020 |
US $601.33 |
||
| replacement | |||||
|
22270
|
22270
22270-22021 Valve Assy, Idle Speed Control(For Thlottle Body)[04.2001 - 03.2003] 2ZZGE..ZZE128 |
22270-22021 |
US $601.33 |
||
|
22270
|
22270
22270-22021 Valve Assy, Idle Speed Control(For Thlottle Body)[03.2003 - 03.2004] 2ZZGE..ZZE128 |
22270-22021 |
US $601.33 |
||
|
22271
|
22271
22271-88600 Gasket, Throttle Body[04.2001 - 03.2004] 2ZZGE..ZZE128 |
22271-88600 |
from US $7.64 |
||
|
23250
|
23250
23209-22030 Injector Assy, Fuel[04.2001 - 03.2004] 2ZZGE..ZZE128 マーク ２３２５０−２２０３０ |
23209-22030 |
US $270.82 |
||
|
23250
|
23250
23209-22060-01 Injector Assy, Fuel[04.2001 - 03.2004] 2ZZGE..ZZE128 ﾏ-ｸ=ﾎﾜｲﾄ,MARK 1,マーク ２３２５０−２２０６０ |
23209-22060-01 |
US $270.82 |
||
|
23250
|
23250
23209-22060-02 Injector Assy, Fuel[04.2001 - 03.2004] 2ZZGE..ZZE128 ﾏｰｸ=ﾌﾞﾙｰ,MARK 2,マーク ２３２５０−２２０６０ |
23209-22060-02 |
US $270.82 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[04.2001 - 03.2004] 1ZZFE,2ZZGE..ZZE12# |
90301-07024 |
from US $2.55 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[04.2001 - 03.2004] 2ZZGE..ZZE128 |
90480-13005 |
from US $2.42 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[04.2001 - 03.2004] 2ZZGE..ZZE128 |
23291-41010 |
from US $2.61 |
||
|
23807
|
23807
23807-88600 Pipe Sub-Assy, Fuel Delivery[04.2001 - 03.2004] 2ZZGE..ZZE128 |
23807-88600 |
US $183.46 |
||
|
23807V
|
23807V
90561-08059 Spacer, No.1(For Delivery Pipe)[04.2001 - 03.2004] 2ZZGE..ZZE128 |
90561-08059 |
US $2.97 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[04.2001 - 04.2004] 1ZZFE,2ZZGE..ZZE12# |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[04.2001 - 04.2004] 1ZZFE,2ZZGE..ZZE12# |
23841-21050 |
US $3.94 |
||
|
23901
|
23901
23271-88601 Tube Sub-Assy, Fuel[04.2001 - 03.2004] 2ZZGE..ZZE128 |
23271-88601 |
US $32.32 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.86 |
||
|
92132B0840
|
92132B0840
92132-B0840 New Genuine Part |
92132-B0840 |
US $1.31 |
||
|
9007910012
|
9007910012
90079-10012 SCREW |
90079-10012 |
US $1.97 |
||
|
9007911057
|
9007911057
90079-11057 SCREW WWASHER |
90079-11057 |
US $1.97 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
|
9095901612
|
9095901612
90959-01612 New Genuine Part |
90959-01612 |
US $4.22 |
||
|
9151180865
|
9151180865
91511-80865 Bolt(For Cylinder Head Set Sub) |
91511-80865 |
US $0.87 |
||
|
9164180855
|
9164180855
91641-80855
Bolt
|
91641-80855 |
— | ||
