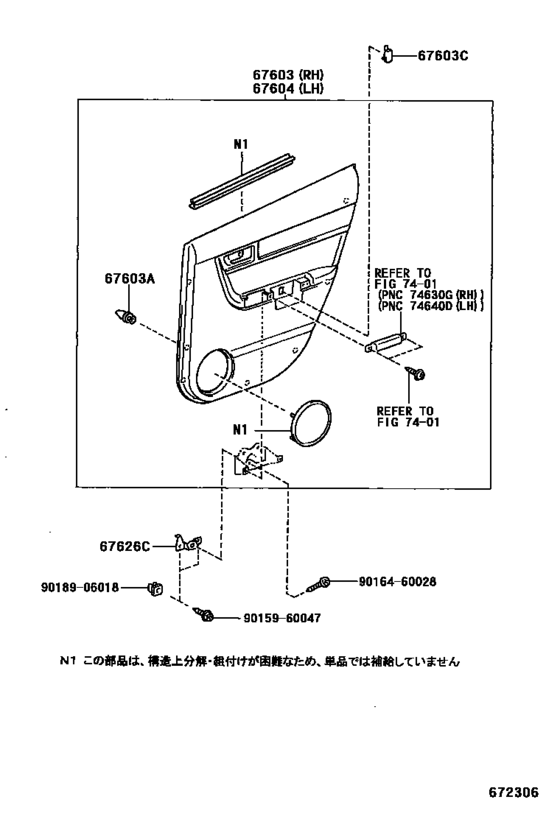

Rear Door Panel & Glass ([04.2001 - ] (0104- )) Diagram Toyota WILL
- Year
- 2002 - 2004
- Sales region
- Japan
- Frame
- ZZE128
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- Model
- WILL VS
- From
- 01.2002
- To
- 04.2004
- No.of Doors
- 5D
- Vehicle Model
- WILL VS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67603
|
67603
67630-1K210-C0 Board Sub-Assy, Rear Door Trim, Rh[04.2001 - 04.2004] ZZE12# BLACK,TRIM2# |
67630-1K210-C0 |
US $307.22 |
||
|
67603
|
67603
67630-1K210-C1 Board Sub-Assy, Rear Door Trim, Rh[02.2002 - 04.2002] ZZE128..MTM ﾚﾂﾄﾞｽﾍﾟｼﾔﾙ *(R),BLACK,TRIM3# |
67630-1K210-C1 |
US $308.67 |
||
|
67603A
|
67603A
90467-10161 Clip[04.2001 - 04.2004] NZE127,ZZE12# |
90467-10161 |
from US $0.76 |
||
|
67603C
|
67603C
64223-28020-C0
Cap(For Rear Door Trim Board)
[06.2002 - 07.2002] ZZE128..MTM ﾎﾜｲﾄｽﾍﾟｼﾔﾙ *(W),BLACK,TRIM3# |
64223-28020-C0 |
— | ||
|
67603C
|
67603C
74223-28020-C0
Cap(For Front Door Trim Board)
[04.2001 - 04.2004] NZE127,ZZE12# BLACK,TRIM2# |
74223-28020-C0 |
— | ||
| replacement | |||||
|
67603C
|
67603C
74223-28020-B2
Cap, Door Armrest
[04.2001 - 04.2004] NZE127,ZZE12# BLACK,TRIM2# |
74223-28020-B2 |
— | ||
|
67604
|
67604
67640-1K210-C0 Board Sub-Assy, Rear Door Trim, Lh[04.2001 - 04.2004] ZZE12# BLACK,TRIM2# |
67640-1K210-C0 |
US $307.22 |
||
|
67604
|
67604
67640-1K210-C1 Board Sub-Assy, Rear Door Trim, Lh[02.2002 - 04.2002] ZZE128..MTM ﾚﾂﾄﾞｽﾍﾟｼﾔﾙ *(R),BLACK,TRIM3# |
67640-1K210-C1 |
US $308.67 |
||
|
67626C
|
67626C
67625-12140 Bracket, Front Door Trim, No.1[04.2001 -] NZE127,ZZE12# |
67625-12140 |
US $4.80 |
||
|
9015960047
|
9015960047
90159-60047 SCREWWWASHER |
90159-60047 |
from US $1.11 |
||
|
9016460028
|
9016460028
90164-60028 New Genuine Part |
90164-60028 |
US $0.96 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.99 |
||
