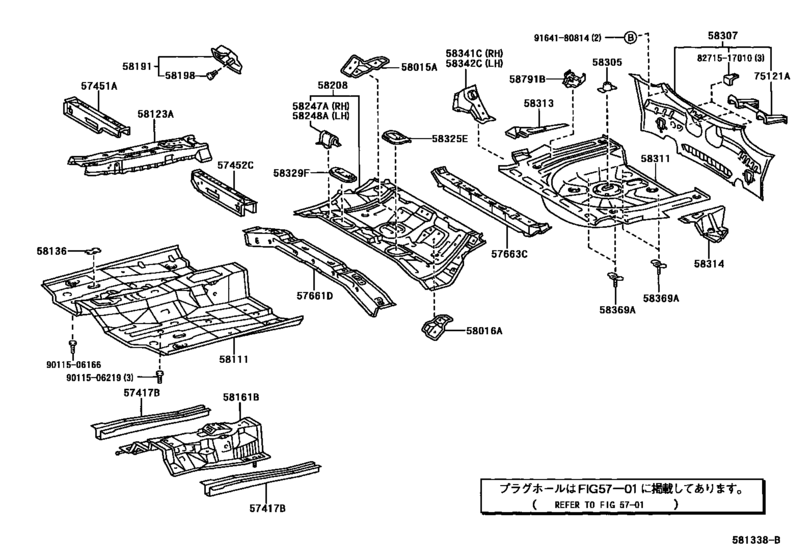

Floor Pan & Lower Back Panel ([04.2001 - ] (0104- )ZZE129) Diagram Toyota WILL
- Year
- 2001 - 2004
- Sales region
- Japan
- Frame
- ZZE129
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- Model
- WILL VS
- From
- 04.2001
- To
- 04.2004
- No.of Doors
- 5D
- Vehicle Model
- WILL VS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57417B
|
57417B
57417-13020 Reinforcement, Front Floor Under[04.2001 - 04.2004] NZE127,ZZE12# 右側 |
57417-13020 |
US $47.76 |
||
|
57417B
|
57417B
57418-13020 Reinforcement, Front Floor Under[04.2001 - 04.2004] NZE127,ZZE12# 左側 |
57418-13020 |
US $47.76 |
||
|
57451A
|
57451A
57451-12201 Member, Front Floor Cross, Rh[04.2001 - 11.2002] ZZE129 |
57451-12201 |
US $59.40 |
||
| replacement | |||||
|
57451A
|
57451A
57051-12040 Member, Front Floor Cross, Rh[04.2001 - 11.2002] ZZE129 |
57051-12040 |
US $62.46 |
||
|
57451A
|
57451A
57451-12202 Member, Front Floor Cross, Rh[11.2002 - 04.2004] ZZE129 |
57451-12202 |
US $59.26 |
||
| replacement | |||||
|
57451A
|
57451A
57051-12040 Member, Front Floor Cross, Rh[11.2002 - 04.2004] ZZE129 |
57051-12040 |
US $62.46 |
||
|
57452C
|
57452C
57452-12031 Member, Front Floor Cross, Lh[04.2001 - 04.2004] ZZE129 |
57452-12031 |
US $64.65 |
||
|
57661D
|
57661D
57661-12010 Member, Rear Floor Cross, Front[04.2001 - 04.2004] NZE127,ZZE12# |
57661-12010 |
US $180.54 |
||
|
57663C
|
57663C
57663-13010 Member, Rear Floor Cross, Center[04.2001 - 04.2004] ZZE129 |
57663-13010 |
US $154.34 |
||
|
58015A
|
58015A
58015-12070 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[04.2001 - 04.2004] NZE127,ZZE12# |
58015-12070 |
US $23.30 |
||
|
58016A
|
58016A
58016-32050 Reinforce Sub-Assy, Belt Anchor, No.3 Lh[04.2001 - 04.2004] NZE127,ZZE12# |
58016-32050 |
US $28.39 |
||
|
58111
|
58111
58111-12903 Pan, Front Floor[04.2001 - 04.2004] ZZE129 |
58111-12903 |
US $559.10 |
||
| replacements | |||||
|
58111
|
58111
58111-12292 Pan, Front Floor[04.2001 - 04.2004] ZZE129 |
58111-12292 |
US $350.90 |
||
|
58111
|
58111
90950-01959 Cover, Console Box Hole[04.2001 - 04.2004] ZZE129 |
90950-01959 |
from US $1.92 |
||
|
58123A
|
58123A
58013-12050 Support, Shift & Select Lever[04.2001 - 04.2004] ZZE129 |
58013-12050 |
US $117.94 |
||
|
58136
|
58136
58136-33010 Cover, Front Floor Hole[04.2001 - 04.2004] ZZE129 |
58136-33010 |
US $3.06 |
||
|
58161B
|
58161B
57805-12091 Reinforcement, Belt Anchor To Floor Pan[04.2001 - 04.2004] ZZE129 |
57805-12091 |
US $264.99 |
||
| replacement | |||||
|
58161B
|
58161B
57805-12092 Reinforcement, Belt Anchor To Floor Pan[04.2001 - 04.2004] ZZE129 |
57805-12092 |
US $266.45 |
||
|
58191
|
58191
58191-12120 Footrest, Front Floor[04.2001 - 04.2004] NZE127,ZZE12# |
58191-12120 |
US $39.17 |
||
|
58198
|
58198
58198-20210 Clip, Footrest[04.2001 - 03.2004] NZE127,ZZE12# |
58198-20210 |
US $4 |
||
|
58198
|
58198
90467-09220 Clip, Footrest[03.2004 - 04.2004] NZE127,ZZE12# |
90467-09220 |
US $1.92 |
||
|
58208
|
58208
58211-12917 Pan, Center Floor[04.2001 - 04.2004] ZZE129 |
58211-12917 |
US $315.95 |
||
|
58247A
|
58247A
58247-12070 Reinforcement, Rear Seat Cushion Hinge, Rh[04.2001 - 04.2004] NZE127,ZZE12# |
58247-12070 |
US $10.92 |
||
|
58248A
|
58248A
58247-12070 Reinforcement, Rear Seat Cushion Hinge, Rh[04.2001 - 04.2004] NZE127,ZZE12# |
58247-12070 |
US $10.92 |
||
|
58305
|
58305
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[04.2001 - 04.2004] NZE127,ZZE12# |
58351-33010 |
US $6.56 |
||
|
58307
|
58307
58307-1A610 Panel Sub-Assy, Body Lower Back[04.2001 - 04.2004] NZE127,ZZE12# |
58307-1A610 |
US $302.85 |
||
|
58311
|
58311
58311-13901 Pan, Rear Floor[04.2001 -] ZZE128,129 |
58311-13901 |
US $381.47 |
||
| replacements | |||||
|
58311
|
58311
58311-13917 Pan, Rear Floor[04.2001 -] ZZE128,129 |
58311-13917 |
US $382.93 |
||
|
58311
|
58311
90333-40001 Plate, Noise Control, No.1[04.2001 -] ZZE128,129 |
90333-40001 |
from US $1.60 |
||
|
58313
|
58313
58313-13190 Panel, Rear Floor Side, Rh[04.2001 - 04.2004] NZE127,ZZE12# |
58313-13190 |
US $36.40 |
||
|
58314
|
58314
58314-13160 Panel, Rear Floor Side, Lh[04.2001 - 04.2004] NZE127,ZZE12# |
58314-13160 |
US $36.40 |
||
|
58325E
|
58325E
58325-32050 Cover, Rear Floor Service Hole[04.2001 - 04.2004] ZZE129 |
58325-32050 |
US $15.14 |
||
|
58329F
|
58329F
58329-32020 Cover, Rear Floor Service Hole, No.2[04.2001 - 04.2004] ZZE129 |
58329-32020 |
US $11.21 |
||
|
58341C
|
58341C
58341-13050 Bracket, Rear Absorber Mounting, No.1 Rh[04.2001 - 04.2004] ZZE129 |
58341-13050 |
US $55.76 |
||
|
58342C
|
58342C
58342-13050 Bracket, Rear Absorber Mounting, No.1 Lh[04.2001 - 04.2004] ZZE129 |
58342-13050 |
US $55.76 |
||
|
58369A
|
58369A
58369-47010 Bracket, Fuel Tube, No.3[04.2001 - 04.2004] ZZE128,129 |
58369-47010 |
US $3.93 |
||
|
58791B
|
58791B
58791-12210 Carrier, Jack[04.2001 - 04.2004] ZZE128,129 |
58791-12210 |
US $18.49 |
||
|
75121A
|
75121A
75121-24020 Bracket, Rear License Plate[04.2001 - 04.2004] NZE127,ZZE12# |
75121-24020 |
US $4.80 |
||
|
8271517010
|
8271517010
82715-17010
Bracket,wiring Harness Clamp
|
82715-17010 |
— | ||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9164180814
|
9164180814
91641-80814 BOLTWWASHER |
91641-80814 |
US $1.76 |
||
