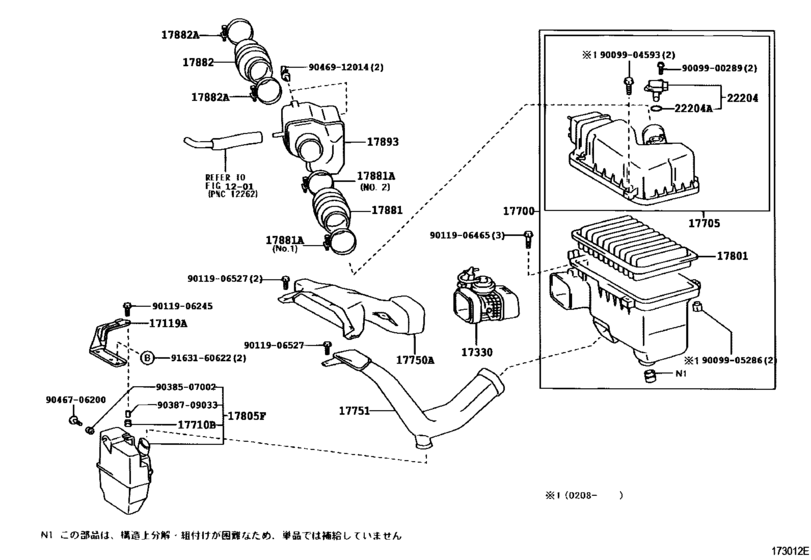

Air Cleaner ([07.2001 - ] (0107- )) Diagram Toyota WINDOM
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- MCV30
- grade
- 30X
- ENGINE
- 1MZFE
- From
- 07.2001
- To
- 03.2006
- Vehicle Model
- WINDOM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17119A
|
17119A
17119-28040 Bracket, Air Cleaner[07.2001 - 06.2004] 1MZFE..MCV30 |
17119-28040 |
US $43.68 |
||
|
17330
|
17330
17330-20010 Valve Assy, Intake Air Control, No.3[07.2001 - 06.2004] 1MZFE..MCV30 |
17330-20010 |
from US $87.09 |
||
|
17700
|
17700
17700-20180 Cleaner Assy, Air[07.2001 - 08.2002] 1MZFE..MCV30 |
17700-20180 |
US $336.34 |
||
| replacement | |||||
|
17700
|
17700
17700-20200 Cleaner Assy, Air[07.2001 - 08.2002] 1MZFE..MCV30 |
17700-20200 |
US $336.34 |
||
|
17700
|
17700
17700-20200 Cleaner Assy, Air[08.2002 - 06.2004] 1MZFE..MCV30 |
17700-20200 |
US $336.34 |
||
|
17705
|
17705
17705-20170
Cap Sub-Assy, Air Cleaner
[07.2001 - 06.2004] 1MZFE..MCV30 |
17705-20170 |
— | ||
|
17710B
|
17710B
90480-17013 Grommet[07.2001 - 06.2004] 1MZFE..MCV30 |
90480-17013 |
from US $3.57 |
||
|
17750A
|
17750A
17750-20110 Inlet Assy, Air Cleaner[07.2001 - 06.2004] 1MZFE..MCV30 |
17750-20110 |
US $113.57 |
||
|
17751
|
17751
17751-20020 Inlet, Air Cleaner, No.1[07.2001 - 06.2004] 1MZFE..MCV30 |
17751-20020 |
US $77.17 |
||
|
17801
|
17801
17801-0H020 Element Sub-Assy, Air Cleaner Filter[07.2001 - 06.2004] 1MZFE..MCV30 （Ｌ） |
17801-0H020 |
US $28.28 |
||
| replacement | |||||
|
17801
|
17801
17801-20040 Element Sub-Assy, Air Cleaner Filter[07.2001 - 06.2004] 1MZFE..MCV30 （Ｌ） |
17801-20040 |
from US $43.49 |
||
|
17801
|
17801
17801-20040 Element Sub-Assy, Air Cleaner Filter[07.2001 - 06.2004] 1MZFE..MCV30 （Ｊ） |
17801-20040 |
from US $43.49 |
||
|
17805F
|
17805F
17805-20040 Resonator Sub-Assy, Intake Air[07.2001 - 06.2004] 1MZFE..MCV30 |
17805-20040 |
US $142.69 |
||
|
17881
|
17881
17881-20130 Hose, Air Cleaner, No.1[07.2001 - 06.2004] 1MZFE..MCV30 |
17881-20130 |
from US $28.68 |
||
|
17881A
|
17881A
96111-10850 Clamp, Hose(For Air Connector)[07.2001 - 06.2004] 1MZFE..MCV30 ＮＯ．２ |
96111-10850 |
from US $3.84 |
||
|
17881A
|
17881A
96111-10880 Clamp(For Air Intake Rubber Seal)[07.2001 - 06.2004] 1MZFE..MCV30 ＮＯ．１ |
96111-10880 |
from US $8.32 |
||
|
17882
|
17882
17882-20160 Hose, Air Cleaner, No.2[07.2001 - 10.2002] 1MZFE..MCV30 |
17882-20160 |
US $33.20 |
||
| replacement | |||||
|
17882
|
17882
17882-20161 Hose, Air Cleaner, No.2[07.2001 - 10.2002] 1MZFE..MCV30 |
17882-20161 |
from US $35.76 |
||
|
17882
|
17882
17882-20161 Hose, Air Cleaner, No.2[10.2002 - 06.2004] 1MZFE..MCV30 |
17882-20161 |
from US $35.76 |
||
|
17882A
|
17882A
96111-10850 Clamp, Hose(For Air Connector)[07.2001 - 06.2004] 1MZFE..MCV30 |
96111-10850 |
from US $3.84 |
||
|
17893
|
17893
17893-20070 Resonator, Intake Air[07.2001 - 06.2004] 1MZFE..MCV30 |
17893-20070 |
US $91.73 |
||
|
22204
|
22204
22204-22010 Meter Sub-Assy, Intake Air Flow[07.2001 - 06.2004] 1MZFE..MCV30 |
22204-22010 |
from US $140.60 |
||
|
22204A
|
22204A
90099-14141 Ring, O(For Intake Air Flow Meter)[07.2001 - 06.2004] 1MZFE..MCV30 |
90099-14141 |
from US $1.21 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.68 |
||
|
9009904593
|
9009904593
90099-04593 BOLT WWASHER |
90099-04593 |
from US $0.68 |
||
|
9009905286
|
9009905286
90099-05286
NUT
|
90099-05286 |
— | ||
|
9011906245
|
9011906245
90119-06245 BOLT |
90119-06245 |
US $0.87 |
||
|
9011906465
|
9011906465
90119-06465 BOLT |
90119-06465 |
from US $0.94 |
||
|
9011906527
|
9011906527
90119-06527 BOLT WWASHER |
90119-06527 |
from US $0.80 |
||
|
9038507002
|
9038507002
90385-07002 Clamp, Hose(For Intake Air Resonator, No.3) |
90385-07002 |
US $1.14 |
||
|
9038709033
|
9038709033
90387-09033 New Genuine Part |
90387-09033 |
US $1.60 |
||
|
9046706200
|
9046706200
90467-06200 CLIP |
90467-06200 |
US $1.60 |
||
|
9046912014
|
9046912014
90469-12014 Clamp Or Clip(For Radiator Reserve Tank Hose) |
90469-12014 |
US $1.76 |
||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.12 |
||
