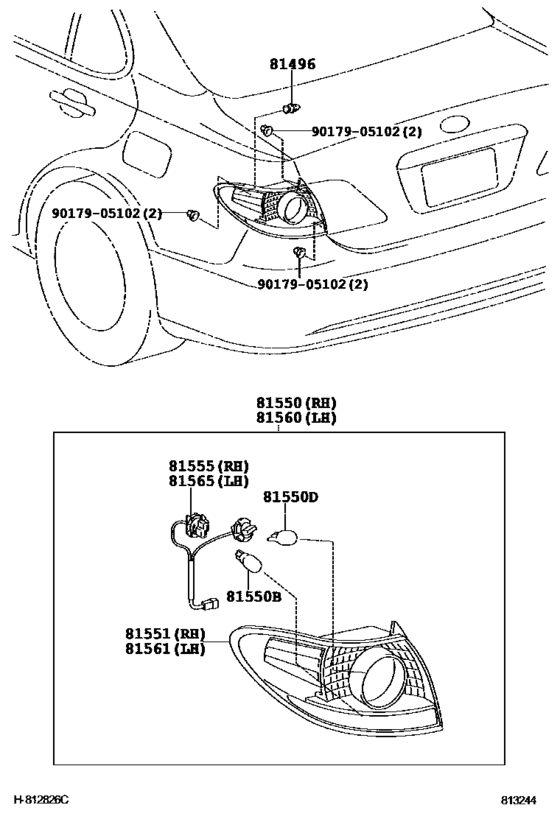

Rear Combination Lamp ([06.2004 - ] (0406- )) Diagram Toyota WINDOM
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- MCV30
- grade
- 30X
- ENGINE
- 1MZFE
- From
- 07.2001
- To
- 03.2006
- Vehicle Model
- WINDOM
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-28010 Guide, Rear Combination Lamp[07.2001 - 06.2004] MCV30 |
81496-28010 |
from US $3.20 |
||
|
81550
|
81550
81550-33290 Lamp Assy, Rear Combination, Rh[07.2001 - 06.2004] MCV30 |
81550-33290 |
US $413.50 |
||
|
81550
|
81550
81550-33300 Lamp Assy, Rear Combination, Rh[07.2001 - 06.2004] MCV30 ｶﾝﾚｲﾁ ｼﾖｳ |
81550-33300 |
US $413.50 |
||
|
81550
|
81550
81550-33440 Lamp Assy, Rear Combination, Rh[06.2004 - 08.2004] MCV30 |
81550-33440 |
US $413.50 |
||
| replacement | |||||
|
81550
|
81550
81550-33441 Lamp Assy, Rear Combination, Rh[06.2004 - 08.2004] MCV30 |
81550-33441 |
US $413.50 |
||
|
81550
|
81550
81550-33441 Lamp Assy, Rear Combination, Rh[09.2004 - 03.2006] MCV30 |
81550-33441 |
US $413.50 |
||
|
81550
|
81550
81550-33450 Lamp Assy, Rear Combination, Rh[06.2004 - 08.2004] MCV30 ｶﾝﾚｲﾁ ｼﾖｳ |
81550-33450 |
US $413.50 |
||
| replacement | |||||
|
81550
|
81550
81550-33451 Lamp Assy, Rear Combination, Rh[06.2004 - 08.2004] MCV30 ｶﾝﾚｲﾁ ｼﾖｳ |
81550-33451 |
US $413.50 |
||
|
81550
|
81550
81550-33451 Lamp Assy, Rear Combination, Rh[09.2004 - 03.2006] MCV30 ｶﾝﾚｲﾁ ｼﾖｳ |
81550-33451 |
US $413.50 |
||
|
81550B
|
81550B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[07.2001 - 06.2004] MCV30 １２Ｖ ２１Ｗ，アンバー |
90981-15011 |
from US $4.60 |
||
|
81550D
|
81550D
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[07.2001 - 06.2004] MCV30 １２Ｖ ２１／５Ｗ |
90981-13044 |
from US $3.65 |
||
|
81551
|
81551
81551-33290 Lens, Rear Combination Lamp, Rh[07.2001 - 06.2004] MCV30 |
81551-33290 |
from US $291.70 |
||
|
81551
|
81551
81551-33300 Lens, Rear Combination Lamp, Rh[07.2001 - 06.2004] MCV30 ｶﾝﾚｲﾁ ｼﾖｳ |
81551-33300 |
US $397.49 |
||
|
81551
|
81551
81551-33440 Lens, Rear Combination Lamp, Rh[06.2004 -] MCV30 |
81551-33440 |
US $378.56 |
||
|
81551
|
81551
81551-33450 Lens, Rear Combination Lamp, Rh[06.2004 -] MCV30 ｶﾝﾚｲﾁ ｼﾖｳ |
81551-33450 |
US $378.56 |
||
|
81555
|
81555
81555-33440 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[06.2004 - 09.2004] MCV30 |
81555-33440 |
US $33.20 |
||
| replacement | |||||
|
81555
|
81555
81555-33441 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[06.2004 - 09.2004] MCV30 |
81555-33441 |
US $33.20 |
||
|
81555
|
81555
81555-33441 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[09.2004 -] MCV30 |
81555-33441 |
US $33.20 |
||
|
81560
|
81560
81560-33290 Lamp Assy, Rear Combination, Lh[07.2001 - 06.2004] MCV30 |
81560-33290 |
US $413.50 |
||
|
81560
|
81560
81560-33300 Lamp Assy, Rear Combination, Lh[07.2001 - 06.2004] MCV30 ｶﾝﾚｲﾁ ｼﾖｳ |
81560-33300 |
US $413.50 |
||
|
81560
|
81560
81560-33440 Lamp Assy, Rear Combination, Lh[06.2004 - 08.2004] MCV30 |
81560-33440 |
US $413.50 |
||
| replacement | |||||
|
81560
|
81560
81560-33441 Lamp Assy, Rear Combination, Lh[06.2004 - 08.2004] MCV30 |
81560-33441 |
US $413.50 |
||
|
81560
|
81560
81560-33441 Lamp Assy, Rear Combination, Lh[09.2004 - 03.2006] MCV30 |
81560-33441 |
US $413.50 |
||
|
81560
|
81560
81560-33450 Lamp Assy, Rear Combination, Lh[06.2004 - 08.2004] MCV30 ｶﾝﾚｲﾁ ｼﾖｳ |
81560-33450 |
US $413.50 |
||
| replacement | |||||
|
81560
|
81560
81560-33451 Lamp Assy, Rear Combination, Lh[06.2004 - 08.2004] MCV30 ｶﾝﾚｲﾁ ｼﾖｳ |
81560-33451 |
US $413.50 |
||
|
81560
|
81560
81560-33451 Lamp Assy, Rear Combination, Lh[09.2004 - 03.2006] MCV30 ｶﾝﾚｲﾁ ｼﾖｳ |
81560-33451 |
US $413.50 |
||
|
81561
|
81561
81561-33290 Lens, Rear Combination Lamp, Lh[07.2001 - 06.2004] MCV30 |
81561-33290 |
US $397.49 |
||
|
81561
|
81561
81561-33300 Lens, Rear Combination Lamp, Lh[07.2001 - 06.2004] MCV30 ｶﾝﾚｲﾁ ｼﾖｳ |
81561-33300 |
US $397.49 |
||
|
81561
|
81561
81561-33440 Lens, Rear Combination Lamp, Lh[06.2004 -] MCV30 |
81561-33440 |
from US $283.08 |
||
|
81561
|
81561
81561-33450 Lens, Rear Combination Lamp, Lh[06.2004 -] MCV30 ｶﾝﾚｲﾁ ｼﾖｳ |
81561-33450 |
US $378.56 |
||
|
81565
|
81565
81555-33440 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[06.2004 - 09.2004] MCV30 |
81555-33440 |
US $33.20 |
||
| replacement | |||||
|
81565
|
81565
81555-33441 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[06.2004 - 09.2004] MCV30 |
81555-33441 |
US $33.20 |
||
|
81565
|
81565
81555-33441 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[09.2004 -] MCV30 |
81555-33441 |
US $33.20 |
||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.78 |
||
