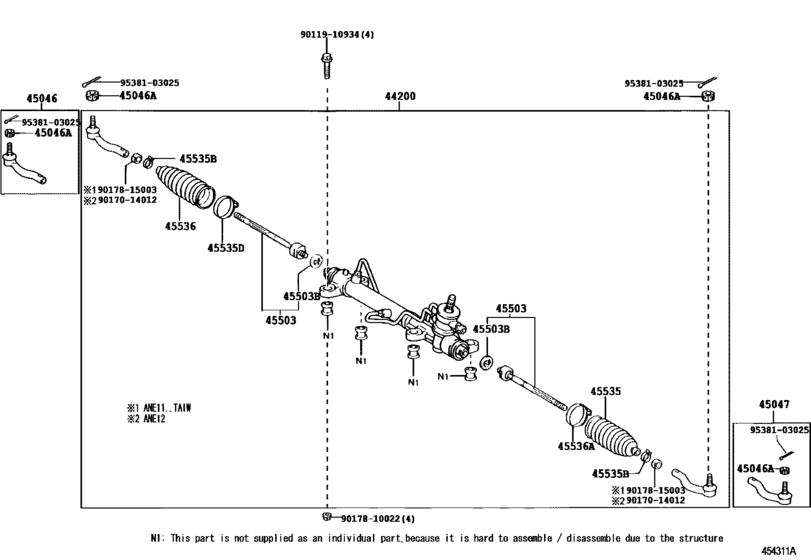

Front Steering Gear & Link ([08.2004 - ] LHD (0408- )TAIW) Diagram Toyota WISH
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- ANE11
- grade
- ZAER
- ENGINE
- 1AZFE
- DESTINATION
- TAIW
- From
- 11.2005
- To
- 09.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 06S
- Vehicle Model
- WISH
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-68040
Link Assy, Power Steering
[11.2005 - 03.2007] ANE11..TAIW |
44200-68040 |
— | ||
|
45046
|
45046
45047-49025 End Sub-Assy, Tie Rod, Lh[12.2003 - 03.2007] ANE11..TAIW |
45047-49025 |
from US $45.22 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[12.2003 - 03.2007] ANE1#..TAIW |
90171-12028 |
from US $1.27 |
||
|
45047
|
45047
45046-49095 End Sub-Assy, Tie Rod, Rh[12.2003 - 03.2007] ANE11..TAIW |
45046-49095 |
from US $46.53 |
||
|
45503
|
45503
45503-29825 End Sub-Assy, Steering Rack[11.2005 - 03.2007] ANE11..TAIW |
45503-29825 |
US $92.40 |
||
|
45503B
|
45503B
90214-14009 Washer, Claw(For Steering Rack End)[12.2003 - 03.2007] ANE1#..TAIW OD=35.2 |
90214-14009 |
from US $1.22 |
||
|
45535
|
45535
45535-13010 Boot, Steering Rack, No.1[12.2003 - 03.2007] ANE1#..TAIW |
45535-13010 |
from US $10.45 |
||
|
45535B
|
45535B
90467-19019 Clip[12.2003 - 03.2007] ANE1#..TAIW |
90467-19019 |
from US $3.91 |
||
|
45535D
|
45535D
90460-55016 Clamp(For Power Steering Rack Boot)[12.2003 - 03.2007] ANE1#..TAIW |
90460-55016 |
from US $3.03 |
||
|
45536
|
45536
45535-13010 Boot, Steering Rack, No.1[12.2003 - 03.2007] ANE1#..TAIW |
45535-13010 |
from US $10.45 |
||
|
45536A
|
45536A
90460-55016 Clamp(For Power Steering Rack Boot)[12.2003 - 03.2007] ANE1#..TAIW |
90460-55016 |
from US $3.03 |
||
|
9011910934
|
9011910934
90119-10934 New Genuine Part |
90119-10934 |
US $3.44 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $0.99 |
||
|
9017810022
|
9017810022
90178-10022 New Genuine Part |
90178-10022 |
US $1.24 |
||
|
9017815003
|
9017815003
90178-15003 Nut, Rack End Lock |
90178-15003 |
from US $1.05 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.72 |
