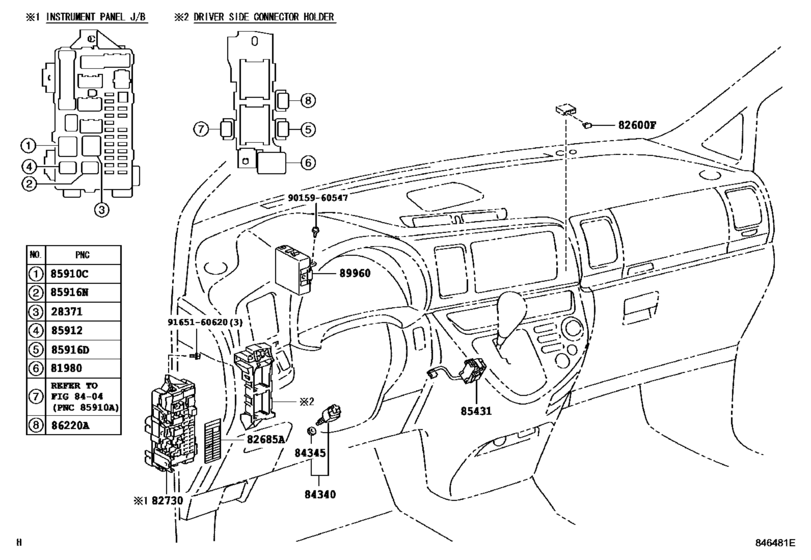

Switch & Relay & Computer ([08.2004 - ] COWL (0408- )TAIW) Diagram Toyota WISH
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- ANE11
- grade
- ZAER
- ENGINE
- 1AZFE
- DESTINATION
- TAIW
- From
- 11.2005
- To
- 09.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 06S
- Vehicle Model
- WISH
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02025 Relay[12.2003 - 03.2007] 1AZFE..ANE1#..TAIW |
90987-02025 |
from US $44.54 |
||
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[12.2003 - 03.2007] ANE1#..TAIW |
81980-50030 |
from US $56.71 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[12.2003 - 03.2007] ANE12;ANE11..06S 7.5A,MINI FUSE |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[12.2003 - 03.2007] ANE12;ANE11..06S 10A,MINI FUSE |
90982-09009 |
US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[12.2003 - 03.2007] ANE12;ANE11..06S 15A,MINI FUSE |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[12.2003 - 03.2007] ANE12;ANE11..06S 20A,MINI FUSE |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09012 Fusible Link[12.2003 - 03.2007] ANE12;ANE11..06S 25A,MINI FUSE |
90982-09012 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[12.2003 - 03.2007] ANE12;ANE11..06S 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82685A
|
82685A
82685-0M010
Plate, Caution
[08.2004 - 03.2007] ANE1#..TAIW |
82685-0M010 |
— | ||
|
82730
|
82730
82730-68030 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [08.2004 - 03.2007] ANE1#..TAIW |
82730-68030 |
US $745.47 |
||
|
82730
|
82730
82730-68060
Block Assy, Instrument Panel Junction
[03.2007 -] ANE1#..TAIW |
82730-68060 |
— | ||
|
84340
|
84340
84340-69025 Switch Assy, Stop Lamp[12.2003 - 12.2006] ANE12;ANE11..06S |
84340-69025 |
from US $26.56 |
||
|
84340
|
84340
84340-69075 Switch Assy, Stop Lamp[12.2006 - 03.2007] ANE1#..TAIW |
84340-69075 |
US $38 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[12.2005 -] ANE1#,ZNE10 |
84345-51010 |
from US $3.52 |
||
|
85431
|
85431
85431-45010
Solenoid, Shift Lock
[08.2004 - 03.2007] ANE1#..TAIW |
85431-45010 |
— | ||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[12.2003 - 03.2007] ANE1#..TAIW |
90987-04010 |
from US $42.71 |
||
|
85912
|
85912
90987-02022 Relay, Starter Cut[12.2003 - 03.2007] ANE1#..TAIW |
90987-02022 |
from US $54 |
||
|
85916D
|
85916D
90987-02022 Relay, Starter Cut[12.2003 - 03.2007] ANE1#..TAIW |
90987-02022 |
from US $54 |
||
|
85916D
|
85916D
90987-02027 Relay[11.2006 -] ANE1# |
90987-02027 |
from US $44.54 |
||
|
85916N
|
85916N
90987-02022 Relay, Starter Cut[12.2003 - 03.2007] ANE1#..TAIW |
90987-02022 |
from US $54 |
||
|
85916N
|
85916N
90987-02027 Relay[11.2006 -] ANE1#,ZNE10 |
90987-02027 |
from US $44.54 |
||
|
86220A
|
86220A
90987-02022 Relay, Starter Cut[08.2004 - 03.2007] ANE1#..20E,ZAER |
90987-02022 |
from US $54 |
||
|
86220A
|
86220A
90987-02027 Relay[03.2007 -] ANE1#..20E,ZAER |
90987-02027 |
from US $44.54 |
||
|
89960
|
89960
89960-68090
Computer Assy, Headlamp Leveling
[11.2005 - 03.2007] ANE11..TAIW 2.0G |
89960-68090 |
— | ||
|
89960
|
89960
89960-68120
Computer Assy, Headlamp Leveling
[03.2007 -] ANE11..TAIW |
89960-68120 |
— | ||
|
9015960547
|
9015960547
90159-60547 New Genuine Part |
90159-60547 |
US $0.70 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
from US $1.28 |
