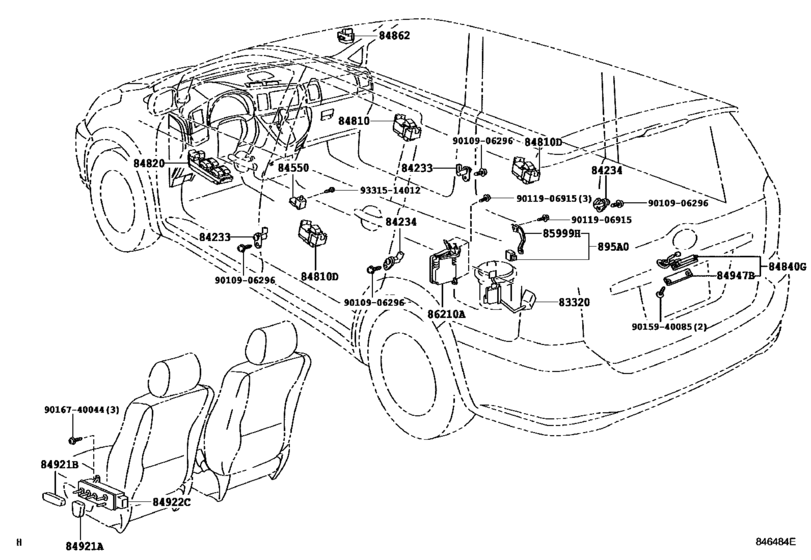

Switch & Relay & Computer ([08.2004 - ] ROOF,FLOOR,DOOR,SEAT & LUGGAGE (0408- )TAIW) Diagram Toyota WISH
- Year
- 2005 - 2009
- Sales region
- General
- Frame
- ANE11
- grade
- ZAER
- ENGINE
- 1AZFE
- DESTINATION
- TAIW
- From
- 11.2005
- To
- 09.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 06S
- Vehicle Model
- WISH
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-68010
Relay Assy, Stop Lamp Control
[12.2006 - 03.2007] ANE1#..TAIW |
895A0-68010 |
— | ||
|
83320
|
83320
83320-68010 Gage Assy, Fuel Sender[12.2003 - 03.2007] ANE12;ANE11..06S |
83320-68010 |
US $72.16 |
||
|
84233
|
84233
84231-02080
Switch Assy, Courtesy Lamp (For Front Door)
[08.2004 - 03.2007] ANE1#..TAIW |
84231-02080 |
— | ||
|
84234
|
84234
84231-02080
Switch Assy, Courtesy Lamp (For Front Door)
[08.2004 - 03.2007] ANE1#..TAIW |
84231-02080 |
— | ||
|
84550
|
84550
84550-02040
Switch Assy, Parking Brake
[08.2004 - 03.2007] ANE1#..TAIW |
84550-02040 |
— | ||
|
84810
|
84810
84030-0M010
Switch Assy, Power Window Regulator
[08.2004 - 02.2006] ANE1#..20J,ZAER; ANE12..20E HEATER CONT. PANEL-METALIC |
84030-0M010 |
— | ||
| replacement | |||||
|
84810
|
84810
84030-0M011
Switch Assy, Power Window Regulator
[08.2004 - 02.2006] ANE1#..20J,ZAER; ANE12..20E HEATER CONT. PANEL-METALIC |
84030-0M011 |
— | ||
|
84810
|
84810
84030-0M011
Switch Assy, Power Window Regulator
[03.2006 - 03.2007] ANE1#..20J,ZAER; ANE12..20E HEATER CONT. PANEL-METALIC |
84030-0M011 |
— | ||
|
84810D
|
84810D
84030-0M010
Switch Assy, Power Window Regulator
[08.2004 - 02.2006] ANE1#..20J,ZAER; ANE12..20E HEATER CONT. PANEL-METALIC |
84030-0M010 |
— | ||
| replacement | |||||
|
84810D
|
84810D
84030-0M011
Switch Assy, Power Window Regulator
[08.2004 - 02.2006] ANE1#..20J,ZAER; ANE12..20E HEATER CONT. PANEL-METALIC |
84030-0M011 |
— | ||
|
84810D
|
84810D
84030-0M011
Switch Assy, Power Window Regulator
[03.2006 - 03.2007] ANE1#..20J,ZAER; ANE12..20E HEATER CONT. PANEL-METALIC |
84030-0M011 |
— | ||
|
84820
|
84820
84040-0M010
Master Switch Assy, Power Window Regulator
[08.2004 - 02.2006] ANE1#..20J,ZAER; ANE12..20E HEATER CONT. PANEL-METALIC |
84040-0M010 |
— | ||
| replacement | |||||
|
84820
|
84820
84040-0M011
Master Switch Assy, Power Window Regulator
[08.2004 - 02.2006] ANE1#..20J,ZAER; ANE12..20E HEATER CONT. PANEL-METALIC |
84040-0M011 |
— | ||
|
84820
|
84820
84040-0M011
Master Switch Assy, Power Window Regulator
[03.2006 - 03.2007] ANE1#..20J,ZAER; ANE12..20E HEATER CONT. PANEL-METALIC |
84040-0M011 |
— | ||
|
84840G
|
84840G
84840-68010 Switch Assy, Back Door Opener[12.2003 - 03.2007] ANE12;ANE11..06S |
84840-68010 |
US $56.09 |
||
|
84862
|
84862
84862-0M010-A0
Switch, Slide Roof Motor
[08.2004 - 03.2007] ANE1#..20E,ZAER IVORY,TRIM0# |
84862-0M010-A0 |
— | ||
|
84862
|
84862
84862-0M010-B0
Switch, Slide Roof Motor
[08.2004 - 03.2007] ANE1#..20E,ZAER LT.GRAY,TRIM1# |
84862-0M010-B0 |
— | ||
|
84921A
|
84921A
84921-33120-A0 Knob, Power Seat Switch (For Reclining)[08.2004 - 03.2007] ANE1#..20E,ZAER IVORY,TRIM0# |
84921-33120-A0 |
US $5.53 |
||
|
84921A
|
84921A
84921-33120-B1 Knob, Power Seat Switch (For Reclining)[08.2004 - 03.2007] ANE1#..20E,ZAER DK.GRAY,TRIM1# |
84921-33120-B1 |
US $5.53 |
||
| replacement | |||||
|
84921A
|
84921A
84921-33120-C0 Knob, Power Seat Switch (For Reclining)[08.2004 - 03.2007] ANE1#..20E,ZAER DK.GRAY,TRIM1# |
84921-33120-C0 |
US $5.53 |
||
|
84921B
|
84921B
84921-33110-A0 Knob, Power Seat Switch (For Slide & Vertical)[08.2004 - 03.2007] ANE1#..20E,ZAER IVORY,TRIM0# |
84921-33110-A0 |
US $9.17 |
||
|
84921B
|
84921B
84921-33110-B1 Knob, Power Seat Switch (For Slide & Vertical)[08.2004 - 03.2007] ANE1#..20E,ZAER DK.GRAY,TRIM1# |
84921-33110-B1 |
US $9.17 |
||
| replacement | |||||
|
84921B
|
84921B
84921-33110-C0 Knob, Power Seat Switch (For Slide & Vertical)[08.2004 - 03.2007] ANE1#..20E,ZAER DK.GRAY,TRIM1# |
84921-33110-C0 |
US $9.17 |
||
|
84922C
|
84922C
84922-06020
Switch, Front Power Seat, Lh
[08.2004 - 03.2007] ANE1#..20E,ZAER |
84922-06020 |
— | ||
|
84947B
|
84947B
69219-68010 Cover, Switch[12.2003 - 03.2007] ANE12;ANE11..06S |
69219-68010 |
US $6.08 |
||
|
85999H
|
85999H
85999-68020
Bracket, Relay
[12.2006 - 03.2007] ANE1#..TAIW |
85999-68020 |
— | ||
|
86210A
|
86210A
86210-68010 Inverter Assy, VoltageVOLTAGE [08.2004 - 03.2007] ANE1#..20E,ZAER |
86210-68010 |
US $318.86 |
||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.44 |
||
|
9011906915
|
9011906915
90119-06915 BOLT W-WASHER |
90119-06915 |
from US $0.66 |
||
|
9015940085
|
9015940085
90159-40085 SCREW |
90159-40085 |
from US $0.72 |
||
|
9016740044
|
9016740044
90167-40044 BOLT |
90167-40044 |
from US $0.76 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
