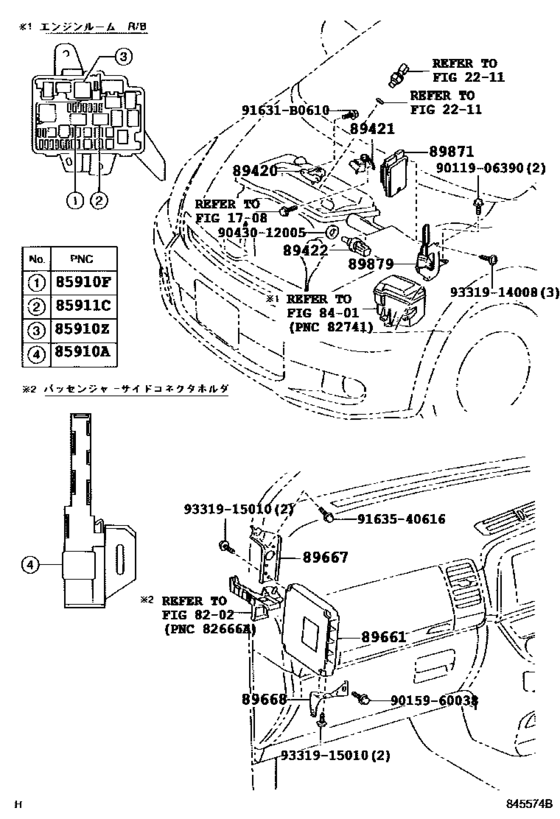

Electronic Fuel Injection System ([04.2003 - ] (0304- )ANE1#) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ANE11
- grade
- Z
- ENGINE
- 1AZFSE
- From
- 04.2003
- To
- 03.2009
- Seating Capacity
- 06S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02022 Relay, Starter Cut[01.2003 - 08.2005] ANE1#,ZNE1# |
90987-02022 |
from US $51.50 |
||
|
85910F
|
85910F
90987-02022 Relay, Starter Cut[01.2003 - 08.2005] ANE1#,ZNE1# |
90987-02022 |
from US $51.50 |
||
|
85910Z
|
85910Z
90987-02022 Relay, Starter Cut[04.2003 - 08.2005] ANE1# |
90987-02022 |
from US $51.50 |
||
|
85911C
|
85911C
90987-02022 Relay, Starter Cut[04.2003 - 08.2005] ANE1# |
90987-02022 |
from US $51.50 |
||
|
89420
|
89420
89421-20190 Sensor Assy, Vacuum[04.2003 - 08.2005] ANE1# |
89421-20190 |
from US $127.92 |
||
|
89421
|
89421
89420-68010 Sensor Assy, Vacuum[04.2003 - 08.2005] ANE1# |
89420-68010 |
US $104.83 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[04.2003 - 08.2005] ANE1# |
89422-33030 |
from US $40.49 |
||
|
89661
|
89661
89661-68040 Computer, Engine Control[04.2003 - 08.2005] ANE11 |
89661-68040 |
US $1,674.40 |
||
|
89661
|
89661
89661-68110 Computer, Engine Control[08.2005 - 03.2009] ANE11 |
89661-68110 |
US $1,718.08 |
||
|
89667
|
89667
89667-68010 Bracket, Engine Control Computer[01.2003 - 08.2005] ANE1#,ZNE1# |
89667-68010 |
US $11.36 |
||
|
89668
|
89668
89668-68010 Bracket, Engine Control Computer, No.2[01.2003 - 08.2005] ANE1#,ZNE1# |
89668-68010 |
US $7.43 |
||
|
89871
|
89871
89871-20040 Driver, Injector[04.2003 - 05.2005] ANE1# |
89871-20040 |
US $753.28 |
||
|
89871
|
89871
89871-28010 Driver, Injector[05.2005 - 08.2005] ANE1# |
89871-28010 |
US $410.59 |
||
|
89879
|
89879
89879-20100 Bracket, Injector Driver[04.2003 - 08.2005] ANE1# |
89879-20100 |
US $18.78 |
||
|
91631B0610
|
91631B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.25 |
||
|
9015960038
|
9015960038
90159-60038 SCREWTAPPING |
90159-60038 |
US $3.40 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9163540616
|
9163540616
91635-40616 New Genuine Part |
91635-40616 |
US $0.87 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.43 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
