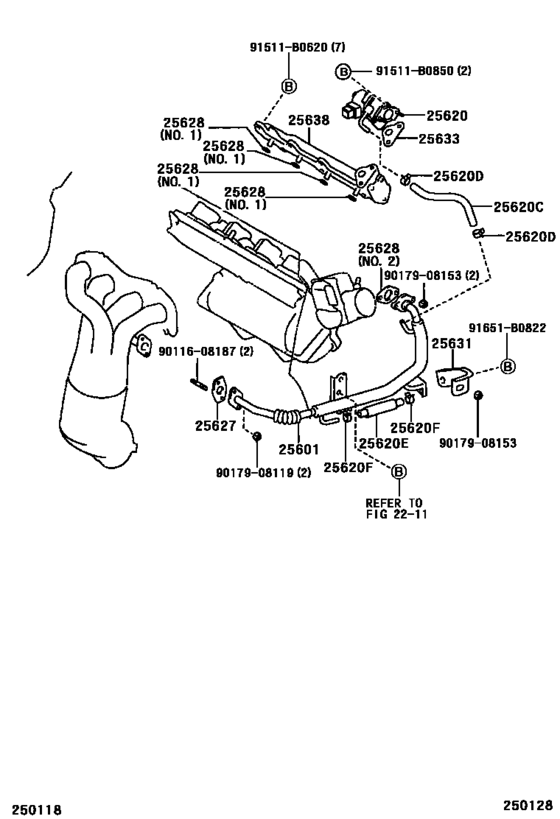

Exhaust Gas Recirculation System ([04.2003 - ] (0304- )1AZFSE) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ANE11
- grade
- Z
- ENGINE
- 1AZFSE
- From
- 04.2003
- To
- 03.2009
- Seating Capacity
- 06S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601
|
25601
25611-28010 Pipe Sub-Assy, Egr, No.1[04.2003 - 07.2005] 1AZFSE..ANE1# |
25611-28010 |
US $182 |
||
| replacement | |||||
|
25601
|
25601
25611-28011 Pipe Sub-Assy, Egr, No.1[04.2003 - 07.2005] 1AZFSE..ANE1# |
25611-28011 |
US $151.42 |
||
|
25601
|
25601
25611-28011 Pipe Sub-Assy, Egr, No.1[07.2005 - 08.2005] 1AZFSE..ANE1# |
25611-28011 |
US $151.42 |
||
|
25620
|
25620
25620-28100
Valve Assy, Egr
[04.2003 - 08.2005] 1AZFSE..ANE1# |
25620-28100 |
— | ||
| replacement | |||||
|
25620
|
25620
25620-28101 Valve Assy, Egr[04.2003 - 08.2005] 1AZFSE..ANE1# |
25620-28101 |
US $455.52 |
||
|
25620
|
25620
25620-28101 Valve Assy, Egr[05.2008 - 03.2009] 1AZFSE..ANE1# |
25620-28101 |
US $455.52 |
||
|
25620C
|
25620C
99555-10100 Hose, Water By-Pass, No.2[04.2003 - 08.2005] 1AZFSE..ANE1# |
99555-10100 |
US $4.30 |
||
|
25620D
|
25620D
96135-51300 Clamp, Hose[04.2003 - 08.2005] 1AZFSE..ANE1# |
96135-51300 |
from US $2.13 |
||
|
25620E
|
25620E
16264-28070 Hose, Water By-Pass No.2[04.2003 - 08.2005] 1AZFSE..ANE1# |
16264-28070 |
US $10.57 |
||
|
25620F
|
25620F
96135-51300 Clamp, Hose[04.2003 - 08.2005] 1AZFSE..ANE1# |
96135-51300 |
from US $2.13 |
||
|
25627
|
25627
25627-74080 Gasket(For Pipe, Egr, No.2)[04.2003 - 08.2005] 1AZFSE..ANE1# |
25627-74080 |
US $8.24 |
||
|
25628
|
25628
25628-28010 Gasket, Egr Inlet[04.2003 - 08.2005] 1AZFSE..ANE1# ＮＯ．１ |
25628-28010 |
from US $1.85 |
||
|
25628
|
25628
25628-28030 Gasket, Egr InletEGR INLET [04.2003 - 08.2005] 1AZFSE..ANE1# ＮＯ．２ |
25628-28030 |
US $16.13 |
||
|
25631
|
25631
25631-28010 Stay, Egr Pipe, No.1[04.2003 - 08.2005] 1AZFSE..ANE1# |
25631-28010 |
US $6.70 |
||
|
25633
|
25633
25633-28010 Gasket, Egr Valve[04.2003 - 08.2005] 1AZFSE..ANE1# |
25633-28010 |
US $8.06 |
||
|
25638
|
25638
25638-28030 Chamber, Egr Delivery[04.2003 - 08.2005] 1AZFSE..ANE1# |
25638-28030 |
US $182 |
||
| replacement | |||||
|
25638
|
25638
25638-28031 Chamber, Egr Delivery[04.2003 - 08.2005] 1AZFSE..ANE1# |
25638-28031 |
US $216 |
||
|
25638
|
25638
25638-28031 Chamber, Egr Delivery[05.2008 - 03.2009] 1AZFSE..ANE1# |
25638-28031 |
US $216 |
||
|
91511B0620
|
91511B0620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.72 |
||
|
91511B0850
|
91511B0850
91511-B0850 Bolt |
91511-B0850 |
from US $1.44 |
||
|
91651B0822
|
91651B0822
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.92 |
||
|
9011608187
|
9011608187
90116-08187 Bolt, Stud(For Oxygen Sensor) |
90116-08187 |
US $3.40 |
||
|
9017908119
|
9017908119
90179-08119 NUT |
90179-08119 |
US $1.61 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.78 |
||
