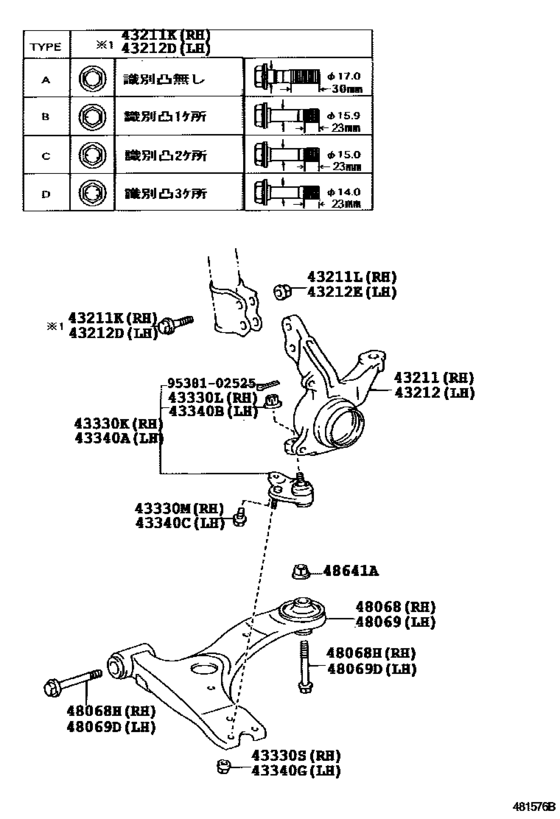

Front Axle Arm & Steering Knuckle ([04.2003 - ] (0304- )ANE11) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ANE11
- grade
- Z
- ENGINE
- 1AZFSE
- From
- 04.2003
- To
- 03.2009
- Seating Capacity
- 06S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-21040 Knuckle, Steering, Rh[04.2003 - 08.2005] ANE11 |
43211-21040 |
US $222.77 |
||
|
43211K
|
43211K
90105-17008 Bolt (For Steering Knuckle Rh)[04.2003 - 08.2005] ANE11 外径＝１７,ＴＹＰＥ Ａ：イラスト参照 |
90105-17008 |
from US $3.94 |
||
|
43211K
|
43211K
90105-17009 Bolt (For Steering Knuckle Rh)[04.2003 - 08.2005] ANE11 外径＝１５．９,ＴＹＰＥ Ｂ：イラスト参照 |
90105-17009 |
from US $3.90 |
||
|
43211K
|
43211K
90105-17010 Bolt (For Steering Knuckle Rh)[04.2003 - 08.2005] ANE11 外径＝１５,ＴＹＰＥ Ｃ：イラスト参照 |
90105-17010 |
from US $4.02 |
||
|
43211K
|
43211K
90105-17011 Bolt (For Steering Knuckle Rh)[04.2003 - 08.2005] ANE11 外径＝１４,ＴＹＰＥ Ｄ：イラスト参照 |
90105-17011 |
from US $3.43 |
||
|
43211L
|
43211L
90178-17001 Nut (For Steering Knuckle Rh)[04.2003 - 08.2005] ANE11 |
90178-17001 |
from US $1.50 |
||
|
43212
|
43212
43212-21040 Knuckle, Steering, Lh[04.2003 - 08.2005] ANE11 |
43212-21040 |
US $222.77 |
||
|
43212D
|
43212D
90105-17008 Bolt (For Steering Knuckle Rh)[04.2003 - 08.2005] ANE11 外径＝１７,ＴＹＰＥ Ａ：イラスト参照 |
90105-17008 |
from US $3.94 |
||
|
43212D
|
43212D
90105-17009 Bolt (For Steering Knuckle Rh)[04.2003 - 08.2005] ANE11 外径＝１５．９,ＴＹＰＥ Ｂ：イラスト参照 |
90105-17009 |
from US $3.90 |
||
|
43212D
|
43212D
90105-17010 Bolt (For Steering Knuckle Rh)[04.2003 - 08.2005] ANE11 外径＝１５,ＴＹＰＥ Ｃ：イラスト参照 |
90105-17010 |
from US $4.02 |
||
|
43212D
|
43212D
90105-17011 Bolt (For Steering Knuckle Rh)[04.2003 - 08.2005] ANE11 外径＝１４,ＴＹＰＥ Ｄ：イラスト参照 |
90105-17011 |
from US $3.43 |
||
|
43212E
|
43212E
90178-17001 Nut (For Steering Knuckle Rh)[04.2003 - 08.2005] ANE11 |
90178-17001 |
from US $1.50 |
||
|
43330K
|
43330K
43330-29425 Joint Assy, Lower Ball, Front[04.2003 - 08.2005] ANE11 |
43330-29425 |
from US $70.08 |
||
|
43330L
|
43330L
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[01.2003 - 08.2005] ANE1#,ZNE1# |
90171-14003 |
from US $1.31 |
||
|
43330M
|
43330M
90105-12156 Bolt (For Front Lower Ball Joint)[01.2003 - 06.2003] ANE1#,ZNE1# |
90105-12156 |
from US $1.87 |
||
|
43330M
|
43330M
90105-12336 Bolt (For Front Lower Ball Joint Rh)[06.2003 - 08.2005] ANE1#,ZNE1# |
90105-12336 |
from US $1.13 |
||
|
43330S
|
43330S
90178-12015 Nut (For Front Lower Ball Joint Rh)[06.2003 - 08.2005] ANE1#,ZNE1# |
90178-12015 |
from US $1.52 |
||
|
43330S
|
43330S
90179-12070 Nut (For Front Lower Ball Joint Setting)[01.2003 - 06.2003] ANE1#,ZNE1# |
90179-12070 |
from US $1.93 |
||
|
43340A
|
43340A
43330-29425 Joint Assy, Lower Ball, Front[04.2003 - 08.2005] ANE11 |
43330-29425 |
from US $70.08 |
||
|
43340B
|
43340B
90171-14003 Nut, Castle (For Front Lower Ball Joint Setting)[01.2003 - 08.2005] ANE1#,ZNE1# |
90171-14003 |
from US $1.31 |
||
|
43340C
|
43340C
90105-12156 Bolt (For Front Lower Ball Joint)[01.2003 - 06.2003] ANE1#,ZNE1# |
90105-12156 |
from US $1.87 |
||
|
43340C
|
43340C
90105-12336 Bolt (For Front Lower Ball Joint Rh)[06.2003 - 08.2005] ANE1#,ZNE1# |
90105-12336 |
from US $1.13 |
||
|
43340G
|
43340G
90178-12015 Nut (For Front Lower Ball Joint Rh)[06.2003 - 08.2005] ANE1#,ZNE1# |
90178-12015 |
from US $1.52 |
||
|
43340G
|
43340G
90179-12070 Nut (For Front Lower Ball Joint Setting)[01.2003 - 06.2003] ANE1#,ZNE1# |
90179-12070 |
from US $1.93 |
||
|
48068
|
48068
48068-21010 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[04.2003 - 08.2005] ANE11 |
48068-21010 |
US $152.01 |
||
|
48068H
|
48068H
90119-14108 Bolt(For Front Suspension Lower Arm No.1 Rh)[01.2003 - 08.2005] ANE1#,ZNE1# |
90119-14108 |
US $8.60 |
||
|
48069
|
48069
48069-21010 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[04.2003 - 08.2005] ANE11 |
48069-21010 |
US $175.44 |
||
|
48069D
|
48069D
90119-14108 Bolt(For Front Suspension Lower Arm No.1 Rh)[01.2003 - 08.2005] ANE1#,ZNE1# |
90119-14108 |
US $8.60 |
||
|
48641A
|
48641A
90179-14068 Nut(For Front Suspension Lower Arm)[01.2003 - 08.2005] ANE1#,ZNE1# |
90179-14068 |
from US $1.15 |
||
|
9538102525
|
9538102525
95381-02525 PINCOTTER |
95381-02525 |
from US $0.78 |
