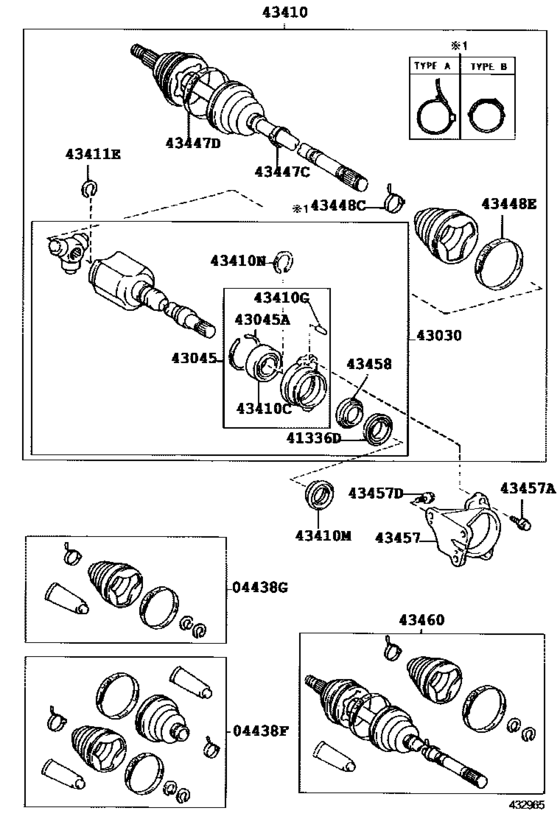

Front Drive Shaft ([04.2003 - ] ﾗｲﾄ (0304- )ANE11) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ANE11
- grade
- Z
- ENGINE
- 1AZFSE
- From
- 04.2003
- To
- 03.2009
- Seating Capacity
- 06S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-42102 Front Drive Shaft Boot Kit, In and Outboard[04.2003 - 08.2005] ANE1# |
04438-42102 |
US $145.60 |
||
|
04438G
|
04438G
04438-42091 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.2003 - 09.2004] ANE1# |
04438-42091 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-42190 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.2003 - 09.2004] ANE1# |
04438-42190 |
US $74.26 |
||
|
04438G
|
04438G
04438-42180 Boot Kit, Front Drive Shaft Inboard Joint[09.2004 - 08.2005] ANE1# |
04438-42180 |
from US $65.07 |
||
|
41336D
|
41336D
41336-20050 Cover, Front Drive Shaft Dust, Rh[04.2003 - 08.2005] ANE1# |
41336-20050 |
US $5.37 |
||
|
43030
|
43030
43030-42031 Joint Assy, Front Drive Inboard, Rh[04.2003 - 08.2005] ANE1# |
43030-42031 |
US $428.06 |
||
|
43045
|
43045
43045-20010 Case Sub Assy, Drive Shaft Bearing[04.2003 - 08.2005] ANE1# |
43045-20010 |
US $68.32 |
||
|
43045A
|
43045A
96153-00680 Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)[04.2003 - 08.2005] ANE1# |
96153-00680 |
US $4.02 |
||
|
43410
|
43410
43410-21070 Shaft Assy, Front Drive, Rh[04.2003 - 08.2005] ANE11 |
43410-21070 |
US $1,073.07 |
||
|
43410C
|
43410C
90363-36004 Bearing(For Rear Drive Shaft)[04.2003 - 08.2005] ANE1# |
90363-36004 |
from US $26.50 |
||
|
43410G
|
43410G
90250-06003 Pin, Straight[04.2003 - 08.2005] ANE1# |
90250-06003 |
US $1.61 |
||
|
43410M
|
43410M
90311-35045 Oil Seal, Front Drive Shaft, Rh[01.2003 - 08.2004] ANE1# |
90311-35045 |
from US $5.20 |
||
|
43410M
|
43410M
90311-35050 Oil Seal, Front Drive Shaft, Rh[08.2004 - 08.2005] ANE1# |
90311-35050 |
from US $7.61 |
||
|
43410N
|
43410N
90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)[01.2003 - 08.2005] ANE1#,ZNE14 |
90520-33008 |
from US $1.91 |
||
|
43411E
|
43411E
43425-28010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[04.2003 - 08.2005] ANE1# |
43425-28010 |
US $0.72 |
||
|
43447C
|
43447C
42345-20040 Clamp (For Front Axle Outboard Joint Boot Rh)[04.2003 - 08.2005] ANE1# |
42345-20040 |
US $4.22 |
||
| replacement | |||||
|
43447C
|
43447C
42345-42100 Clamp (For Front Axle Outboard Joint Boot)Small [04.2003 - 08.2005] ANE1# |
42345-42100 |
US $3.94 |
||
|
43447D
|
43447D
42345-28020 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[04.2003 - 08.2005] ANE1# |
42345-28020 |
US $6.84 |
||
| replacement | |||||
|
43447D
|
43447D
42345-42090 Clamp, No.2 (For Front Axle Outboard Joint Boot)Big [04.2003 - 08.2005] ANE1# |
42345-42090 |
from US $5.40 |
||
|
43448C
|
43448C
42345-42010 Clamp (For Axle Inboard Joint Boot)Small [04.2003 - 08.2005] ANE1# ＴＹＰＥ Ｂ：イラスト参照 |
42345-42010 |
from US $1.60 |
||
|
43448C
|
43448C
90949-01559 Clamp, No.1 (For Axle Outboard Joint Boot Setting)[04.2003 - 08.2005] ANE1# ＴＹＰＥ Ａ：イラスト参照 |
90949-01559 |
US $5.73 |
||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [01.2003 - 08.2005] ANE1#,ZNE1# |
42345-12160 |
from US $4.45 |
||
|
43457
|
43457
43457-63010 Bracket, Drive Shaft Bearing[04.2003 - 08.2005] ANE1# |
43457-63010 |
US $69.01 |
||
|
43457A
|
43457A
90105-10361 Bolt (For Rear Differential Carrier Cover Setting)[04.2003 - 08.2005] ANE1# ＊１０−１．２５ＰＸ２２−１９．５ |
90105-10361 |
from US $0.96 |
||
|
43457D
|
43457D
90105-10381 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[04.2003 - 08.2005] ANE1# |
90105-10381 |
US $1.79 |
||
|
43458
|
43458
43458-20011 Cover, Front Drive Shaft Dust[04.2003 - 08.2005] ANE1# |
43458-20011 |
US $9.77 |
||
|
43460
|
43460
43470-49146 Shaft Assy, Front Drive Outboard Joint, Rh[04.2003 - 08.2005] ANE11 |
43470-49146 |
US $698.88 |
||
