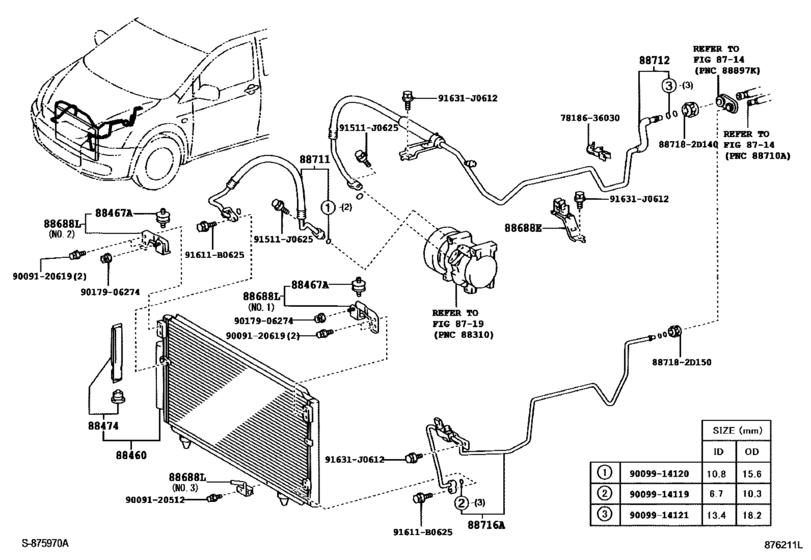

Heating & Air Conditioning - Cooler Piping ([04.2003 - ] (0304- )ANE1#) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ANE11
- grade
- Z
- ENGINE
- 1AZFSE
- From
- 04.2003
- To
- 03.2009
- Seating Capacity
- 06S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-21040 Condenser Assy, Cooler[01.2003 - 08.2005] ANE1#,ZNE1# |
88460-21040 |
US $582.40 |
||
|
88467A
|
88467A
88467-12030 Cushion, Cooler Condenser, No.1[01.2003 - 08.2005] ANE1#,ZNE1# |
88467-12030 |
from US $3.32 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[01.2003 - 08.2005] ANE1#,ZNE1# |
88474-17010 |
from US $58.54 |
||
|
88688E
|
88688E
88688-2G020
Bracket, Cooler Refrigerant Hose, No.1
[04.2003 - 08.2005] ANE1# |
88688-2G020 |
— | ||
|
88688L
|
88688L
88688-68030
Bracket, Condenser Packing
[01.2003 - 08.2005] ANE1#,ZNE1# ＮＯ．１ |
88688-68030 |
— | ||
|
88688L
|
88688L
88688-68040
Bracket, Condenser Packing
[01.2003 - 08.2005] ANE1#,ZNE1# ＮＯ．２ |
88688-68040 |
— | ||
|
88688L
|
88688L
88688-68050
Bracket, Condenser Packing
[01.2003 - 08.2005] ANE1#,ZNE1# ＮＯ．３ |
88688-68050 |
— | ||
|
88711
|
88711
88703-68020 Hose, Cooler Refrigerant Discharge, No.1[04.2003 - 08.2005] ANE1# |
88703-68020 |
US $180.54 |
||
| replacement | |||||
|
88711
|
88711
88703-68021 Hose, Cooler Refrigerant Discharge, No.1[04.2003 - 08.2005] ANE1# |
88703-68021 |
US $179.09 |
||
|
88711
|
88711
88703-68021 Hose, Cooler Refrigerant Discharge, No.1[12.2007 - 03.2008] ANE1# |
88703-68021 |
US $179.09 |
||
|
88711
|
88711
88703-68080 Hose, Cooler Refrigerant Discharge, No.1[03.2008 - 03.2009] ANE1# |
88703-68080 |
US $182 |
||
|
88712
|
88712
88704-21220 Hose, Cooler Refrigerant Suction, No.1[04.2003 - 08.2005] ANE1# |
88704-21220 |
US $387.30 |
||
| replacement | |||||
|
88712
|
88712
88704-68061 Hose, Cooler Refrigerant Suction, No.1[04.2003 - 08.2005] ANE1# |
88704-68061 |
US $404.77 |
||
|
88712
|
88712
88704-68060 Hose, Cooler Refrigerant Suction, No.1[08.2005 - 11.2007] ANE1# |
88704-68060 |
US $406.22 |
||
| replacement | |||||
|
88712
|
88712
88704-68061 Hose, Cooler Refrigerant Suction, No.1[08.2005 - 11.2007] ANE1# |
88704-68061 |
US $404.77 |
||
|
88712
|
88712
88704-68061 Hose, Cooler Refrigerant Suction, No.1[12.2007 - 03.2009] ANE1# |
88704-68061 |
US $404.77 |
||
|
88716A
|
88716A
88710-68020 Pipe, Cooler Refrigerant Liquid, A[04.2003 - 08.2005] ANE1# |
88710-68020 |
US $355.26 |
||
|
91511J0625
|
91511J0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.78 |
||
|
91611B0625
|
91611B0625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
887182D140
|
887182D140
88718-2D140 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D140 |
from US $6.46 |
||
|
887182D150
|
887182D150
88718-2D150 Clamp(For Cooler Refrigerant Pipe), No.1 |
88718-2D150 |
from US $5.69 |
||
|
7818636030
|
7818636030
78186-36030 Clamp, Accelerator Control Cable, No.3 |
78186-36030 |
US $3.20 |
||
|
9009120512
|
9009120512
90091-20512 BOLT WWASHER |
90091-20512 |
US $0.28 |
||
|
9009120619
|
9009120619
90091-20619 BOLT |
90091-20619 |
US $0.28 |
||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $1.66 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.68 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $1.83 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.56 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
