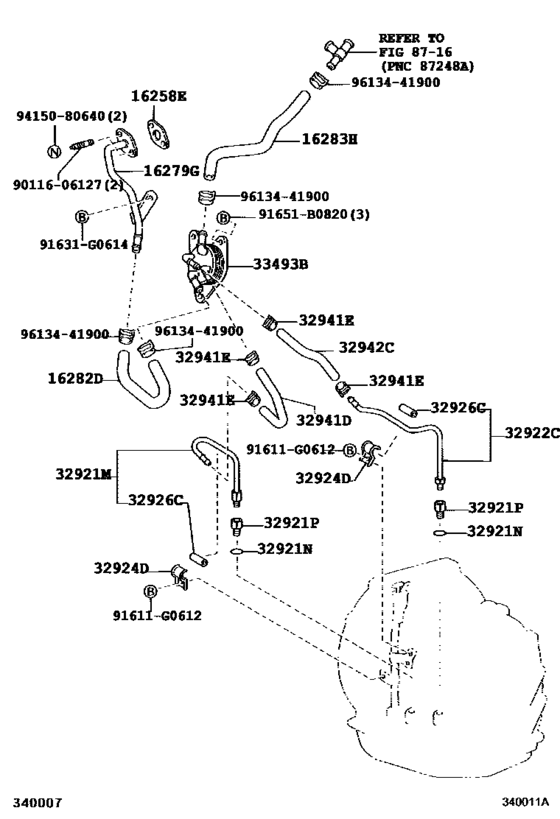

Oil Cooler & Tube(Cvt) ([04.2003 - 08.2005] K110 (0304-0508)ANE1#) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ANE11
- grade
- Z
- ENGINE
- 1AZFSE
- From
- 04.2003
- To
- 03.2009
- Seating Capacity
- 06S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16258E
|
16258E
16258-28021 Gasket(For Water By-Pass Pipe)[04.2003 - 08.2003] 1AZFSE..ANE1# |
16258-28021 |
US $6.12 |
||
| replacement | |||||
|
16258E
|
16258E
16258-28040 Gasket(For Oil Cooler Pipe Union Bolt)[04.2003 - 08.2003] 1AZFSE..ANE1# |
16258-28040 |
from US $2.59 |
||
|
16258E
|
16258E
16258-28040 Gasket(For Oil Cooler Pipe Union Bolt)[08.2003 - 08.2005] 1AZFSE..ANE1# |
16258-28040 |
from US $2.59 |
||
|
16279G
|
16279G
16279-28020 Pipe, Water By-Pass, No.3[04.2003 - 08.2005] 1AZFSE..ANE1# |
16279-28020 |
US $35.53 |
||
|
16282D
|
16282D
16282-28020 Hose, Water By-Pass, No.5[04.2003 - 08.2005] 1AZFSE..ANE1# |
16282-28020 |
US $7.86 |
||
|
16282D
|
16282D
16282-28050 Hose, Water By-Pass, No.5[08.2005 - 03.2009] 1AZFSE..ANE1# |
16282-28050 |
US $7.29 |
||
|
16283H
|
16283H
16283-28020 Hose, Water By-Pass, No.6[04.2003 - 08.2005] 1AZFSE..ANE1# |
16283-28020 |
US $21.67 |
||
|
16283H
|
16283H
16283-28050 Hose, Water By-Pass, No.6[08.2005 - 03.2009] 1AZFSE..ANE1# |
16283-28050 |
US $21.50 |
||
|
32921M
|
32921M
32921-20540 Tube, Oil Cooler Inlet, No.1[04.2003 - 08.2005] ANE1# |
32921-20540 |
US $12.67 |
||
|
32921N
|
32921N
90301-10189 Ring, O(For Oil Cooler Tube Union)[04.2003 - 08.2005] ANE1# |
90301-10189 |
from US $2.63 |
||
|
32921P
|
32921P
90404-13004
Union(For Oil Cooler Tube)
[08.2005 - 03.2009] ANE1# アウトレット |
90404-13004 |
— | ||
| replacement | |||||
|
32921P
|
32921P
90404-13010 Union(For Oil Cooler Tube)[08.2005 - 03.2009] ANE1# アウトレット |
90404-13010 |
US $5.56 |
||
|
32921P
|
32921P
90404-16031 Union(For Transaxle Housing)[04.2003 - 08.2005] ANE1# |
90404-16031 |
US $6.09 |
||
|
32921P
|
32921P
90407-13009 Union(For Oil Cooler Tube)[08.2005 - 03.2009] ANE1# インレット |
90407-13009 |
US $5.39 |
||
| replacement | |||||
|
32921P
|
32921P
90407-13010 Union(For Oil Cooler Tube)[08.2005 - 03.2009] ANE1# インレット |
90407-13010 |
US $7.17 |
||
|
32922C
|
32922C
32922-20520 Tube, Oil Cooler Outlet, No.1[04.2003 - 08.2005] ANE1# |
32922-20520 |
US $12.67 |
||
|
32924D
|
32924D
32924-20090 Clamp, Automatic Transmission Oil Cooler Tube, No.1[04.2003 - 08.2005] ANE1# |
32924-20090 |
US $4.80 |
||
|
32926C
|
32926C
32926-20010
Cushion, Oil Cooler Tube(Atm)
[04.2003 - 08.2005] ANE1# |
32926-20010 |
— | ||
|
32941D
|
32941D
32941-20230 Hose, Oil Cooler Inlet[04.2003 - 08.2005] ANE1# |
32941-20230 |
US $24.75 |
||
|
32941D
|
32941D
32943-44010 Hose, Oil Cooler Inlet[08.2005 - 03.2009] ANE1# |
32943-44010 |
US $18.98 |
||
|
32941E
|
32941E
90466-16004 Clip(For Ventilation Hose No.2)[09.2007 - 03.2009] ANE1# ＮＯ．１ |
90466-16004 |
from US $1.85 |
||
|
32941E
|
32941E
90467-16022 Clip(For Water Inlet Hose)[08.2005 - 08.2007] ANE1# ＮＯ．１ |
90467-16022 |
from US $2.32 |
||
|
32942C
|
32942C
32942-20080 Hose, Oil Cooler Outlet, No.1[04.2003 - 08.2005] ANE1# |
32942-20080 |
US $16.89 |
||
|
32942C
|
32942C
32943-44021 Hose, Oil Cooler Outlet, No.1[08.2005 - 03.2009] ANE1# |
32943-44021 |
US $22.34 |
||
|
33493B
|
33493B
33493-20030 Cooler, Oil[04.2003 - 08.2005] ANE1# |
33493-20030 |
US $244.61 |
||
|
33493B
|
33493B
33493-44030 Cooler, Oil[08.2005 - 03.2009] ANE1# |
33493-44030 |
US $186.95 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
91631G0614
|
91631G0614
91631-G0614 BOT WWASHER |
91631-G0614 |
from US $0.86 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.74 |
||
|
9613441900
|
9613441900
96134-41900 Clip Or Clamp(For Ventilation Hose) |
96134-41900 |
from US $1.61 |
||
