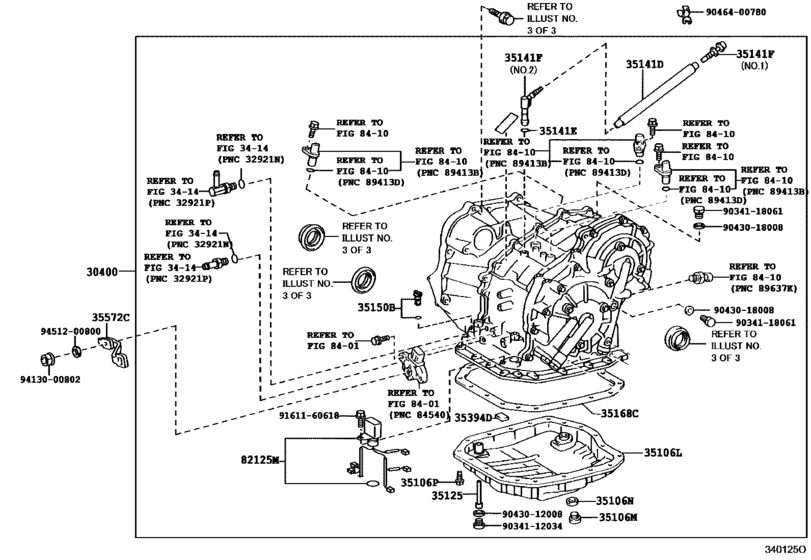

Transaxle Assy(Cvt) ([08.2005 - ] K111 (0508- )ANE1#) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ANE11
- grade
- Z
- ENGINE
- 1AZFSE
- From
- 04.2003
- To
- 03.2009
- Seating Capacity
- 06S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-63011 Transaxle Assy, Continuously Variable[04.2003 - 08.2005] ANE1# |
30400-63011 |
US $6,420.96 |
||
|
30400
|
30400
30400-68010 Transaxle Assy, Continuously Variable[08.2005 - 03.2009] ANE1# |
30400-68010 |
US $6,406.40 |
||
|
35106L
|
35106L
35106-44020
Pan Sub-Assy, Transaxle Oil(Cvt)
[08.2005 - 08.2008] ANE1# |
35106-44020 |
— | ||
| replacements | |||||
|
35106L
|
35106L
35106-44024 Pan Sub-Assy, Transaxle Oil(Cvt)[08.2005 - 08.2008] ANE1# |
35106-44024 |
US $98.40 |
||
|
35106L
|
35106L
35168-20010 Gasket, Transaxle Oil Pan(Cvt)[08.2005 - 08.2008] ANE1# |
35168-20010 |
from US $13.51 |
||
|
35106L
|
35106L
35125-44071 Tube, Transmission Oil Filler, No.1[08.2005 - 08.2008] ANE1# |
35125-44071 |
from US $2.69 |
||
|
35106L
|
35106L
35106-44021 Pan Sub-Assy, Transaxle Oil(Cvt)[08.2008 - 03.2009] ANE1# |
35106-44021 |
US $81.54 |
||
| replacements | |||||
|
35106L
|
35106L
35106-44024 Pan Sub-Assy, Transaxle Oil(Cvt)[08.2008 - 03.2009] ANE1# |
35106-44024 |
US $98.40 |
||
|
35106L
|
35106L
35125-44071 Tube, Transmission Oil Filler, No.1[08.2008 - 03.2009] ANE1# |
35125-44071 |
from US $2.69 |
||
|
35106L
|
35106L
35106-63010 Pan Sub-Assy, Transaxle Oil[04.2003 - 08.2005] ANE1# |
35106-63010 |
US $96.10 |
||
|
35106M
|
35106M
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[04.2003 - 08.2005] ANE1# |
90341-18016 |
from US $1.83 |
||
|
35106N
|
35106N
90430-18008 Gasket[04.2003 - 08.2005] ANE1# |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
35106N
|
35106N
90430-T0021 Gasket(For Manual Transmission Filler Plug)[04.2003 - 08.2005] ANE1# |
90430-T0021 |
US $1.01 |
||
|
35106P
|
35106P
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[04.2003 - 08.2005] ANE1# |
90119-06173 |
from US $0.76 |
||
|
35125
|
35125
35125-44070
Tube, Transmission Oil Filler, No.1
[08.2005 - 03.2009] ANE1# |
35125-44070 |
— | ||
| replacement | |||||
|
35125
|
35125
35125-44071 Tube, Transmission Oil Filler, No.1[08.2005 - 03.2009] ANE1# |
35125-44071 |
from US $2.69 |
||
|
35141D
|
35141D
35121-63010 Hose(For Breather Plug)[04.2003 - 08.2005] ANE1# |
35121-63010 |
US $10.34 |
||
| replacement | |||||
|
35141D
|
35141D
3510A-44012 Hose Sub-Assy, Transmission Breather[04.2003 - 08.2005] ANE1# |
3510A-44012 |
US $17.81 |
||
|
35141E
|
35141E
90301-06005 Ring, O (For Breather Plug)[04.2003 - 08.2005] ANE1# |
90301-06005 |
from US $2.30 |
||
|
35141F
|
35141F
90930-03149 Plug Sub-Assy, Breather(For Transmission)[04.2003 - 08.2005] ANE1# ＮＯ．１ |
90930-03149 |
from US $3.94 |
||
|
35141F
|
35141F
90930-03164 Plug, Breather(For Transaxle)[04.2003 - 08.2005] ANE1# ＮＯ．２ |
90930-03164 |
US $6.45 |
||
|
35150B
|
35150B
35150-44010 Plug(For Transmission Case)[08.2005 - 03.2009] ANE1# |
35150-44010 |
from US $6.09 |
||
|
35168C
|
35168C
35168-20010 Gasket, Transaxle Oil Pan(Cvt)[08.2008 - 03.2009] ANE1# |
35168-20010 |
from US $13.51 |
||
|
35168C
|
35168C
35168-63010 Gasket, Transaxle Oil Pan[04.2003 - 08.2005] ANE1# |
35168-63010 |
from US $17.92 |
||
|
35394D
|
35394D
35394-30011 Magnet, Oil Cleaner (For Transmission)[04.2003 - 08.2005] ANE1# |
35394-30011 |
from US $5.62 |
||
|
35572C
|
35572C
35572-63010 Lever, Transmission Control Shaft[04.2003 - 08.2005] ANE1# |
35572-63010 |
US $12.23 |
||
|
82125M
|
82125M
82125-44020 Wire, Transmission[08.2005 - 03.2009] ANE1# |
82125-44020 |
US $18.92 |
||
|
9034112034
|
9034112034
90341-12034 Plug Sub-Assy, Drain (Atm) |
90341-12034 |
from US $3.26 |
||
|
9034118061
|
9034118061
90341-18061 Plug, Hole (CVT TC) |
90341-18061 |
US $5.56 |
||
|
9043012008
|
9043012008
90430-12008 Gasket (For Shift Inter Lock Plate) |
90430-12008 |
from US $0.90 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.01 |
||
|
9046400780
|
9046400780
90464-00780 New Genuine Part |
90464-00780 |
US $2.04 |
||
|
9161160618
|
9161160618
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $2.15 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001
New Genuine Part
|
90170-A0001 |
— | ||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
