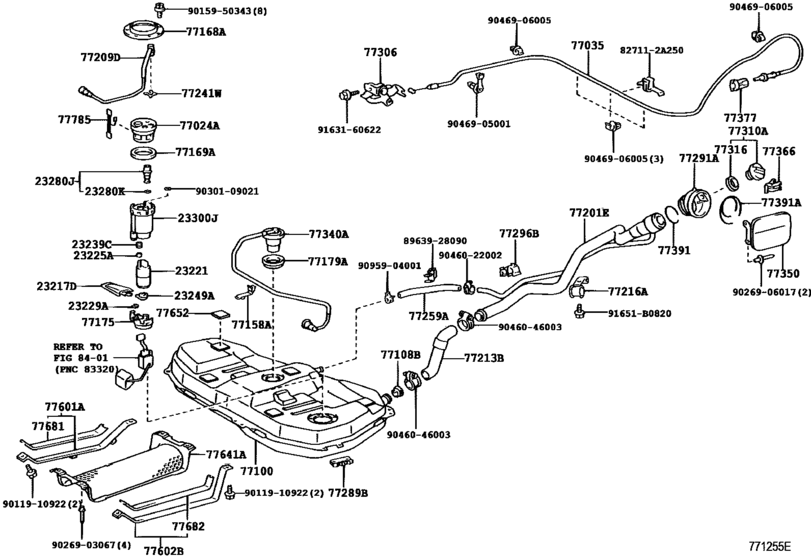

Fuel Tank & Tube ([01.2003 - ] ﾌｭｰｴﾙﾀﾝｸ (0301- )ZNE10) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE10
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23217D
|
23217D
23217-0D070 Filter, Fuel Pump[12.2004 - 08.2005] 1ZZFE..ZNE1# |
23217-0D070 |
from US $7.76 |
||
|
23217D
|
23217D
23217-74021 Filter, Fuel Pump[01.2003 - 12.2004] 1ZZFE..ZNE1# |
23217-74021 |
from US $9.73 |
||
|
23221
|
23221
23221-28030
Pump Assy, Fuel
[01.2003 - 08.2005] 1ZZFE..ZNE1# |
23221-28030 |
— | ||
| replacement | |||||
|
23221
|
23221
23221-28280 Pump Assy, Fuel (without filter)[01.2003 - 08.2005] 1ZZFE..ZNE1# |
23221-28280 |
from US $370.52 |
||
|
23221
|
23221
23221-28280 Pump Assy, Fuel (without filter)[12.2006 - 03.2009] 1ZZFE..ZNE1# |
23221-28280 |
from US $370.52 |
||
|
23225A
|
23225A
23225-21010 Spacer, Fuel Pump[01.2003 - 08.2005] 1AZFSE,1ZZFE..ANE1#,ZNE1# |
23225-21010 |
from US $1.19 |
||
|
23229A
|
23229A
23229-16010 Clip(For Fuel Pump Filter)[01.2003 - 08.2005] 1AZFSE,1ZZFE..ANE1#,ZNE1# |
23229-16010 |
from US $0.80 |
||
| replacement | |||||
|
23229A
|
23229A
23219-03010 Clip(For Fuel Pump Filter)[01.2003 - 08.2005] 1AZFSE,1ZZFE..ANE1#,ZNE1# |
23219-03010 |
US $2.55 |
||
|
23239C
|
23239C
23239-21010 Seal, Fuel Pump Filter[01.2003 - 08.2005] 1AZFSE,1ZZFE..ANE1#,ZNE1# |
23239-21010 |
from US $0.98 |
||
|
23249A
|
23249A
23249-74610 Rubber, Cushion(For Fuel Pump)[01.2003 - 08.2005] 1AZFSE,1ZZFE..ANE1#,ZNE1# |
23249-74610 |
from US $8.15 |
||
|
23280J
|
23280J
23280-22010 Regulator Assy, Fuel Pressure[01.2003 - 08.2005] 1ZZFE..ZNE10 |
23280-22010 |
from US $54.60 |
||
|
23280K
|
23280K
90301-07020 Ring, O(For Fuel Pressure Regulator)[01.2003 - 08.2005] 1AZFSE,1ZZFE..ANE1#,ZNE10 |
90301-07020 |
from US $2.59 |
||
|
23300J
|
23300J
23300-28040 Filter Assy, Fuel[01.2003 - 08.2005] 1AZFSE,1ZZFE..ANE1#,ZNE1# |
23300-28040 |
from US $59.77 |
||
|
77024A
|
77024A
77024-68010 Plate Sub-Assy, Fuel Suction[01.2003 - 08.2005] ZNE1# |
77024-68010 |
US $32.47 |
||
|
77035
|
77035
77035-68010 Cable Sub-Assy, Fuel Lid Lock Control[01.2003 - 08.2005] ANE1#,ZNE1# |
77035-68010 |
US $21.69 |
||
|
77100
|
77100
77001-68010 Tank Assy, Fuel[01.2003 - 08.2005] ANE1#,ZNE10 |
77001-68010 |
US $646.46 |
||
| replacement | |||||
|
77100
|
77100
77001-68031 Tank Assy, Fuel[01.2003 - 08.2005] ANE1#,ZNE10 |
77001-68031 |
US $387.30 |
||
|
77100
|
77100
77001-68011 Tank Assy, Fuel[05.2006 - 04.2008] ANE1#,ZNE10 |
77001-68011 |
US $646.46 |
||
| replacement | |||||
|
77100
|
77100
77001-68031 Tank Assy, Fuel[05.2006 - 04.2008] ANE1#,ZNE10 |
77001-68031 |
US $387.30 |
||
|
77100
|
77100
77001-68012 Tank Assy, Fuel[05.2008 - 03.2009] ANE1#,ZNE10 |
77001-68012 |
US $538.72 |
||
| replacement | |||||
|
77100
|
77100
77001-68031 Tank Assy, Fuel[05.2008 - 03.2009] ANE1#,ZNE10 |
77001-68031 |
US $387.30 |
||
|
77108B
|
77108B
77108-12020 Valve Sub-Assy, Fuel Tank Filler Check[01.2003 - 08.2005] ANE1#,ZNE10 |
77108-12020 |
US $4.82 |
||
|
77158A
|
77158A
77158-68010 Support, Tank Suction Tube[01.2003 - 08.2005] ANE1#,ZNE1# |
77158-68010 |
US $6.26 |
||
|
77168A
|
77168A
77168-0D010 Plate, Fuel Tank Vent Tube Set[09.2004 - 08.2005] ZNE10 （Ｌ） |
77168-0D010 |
US $11.65 |
||
|
77168A
|
77168A
77168-52010 Plate, Fuel Tank Vent Tube Set[01.2003 - 09.2004] ZNE10 |
77168-52010 |
from US $12.48 |
||
|
77169A
|
77169A
77169-33020 Gasket, Fuel Pump Bracket[01.2003 - 08.2005] ANE1#,ZNE1# |
77169-33020 |
from US $7.88 |
||
|
77175
|
77175
77175-52020 Support, Fuel Suction, No.2[01.2003 - 08.2005] ANE1#,ZNE1# |
77175-52020 |
from US $8.27 |
||
|
77179A
|
77179A
77179-33010 Gasket, Fuel Tank Evap/vent Tube[01.2003 - 08.2005] ANE1#,ZNE10 |
77179-33010 |
from US $3.18 |
||
|
77201E
|
77201E
77201-68010 Pipe Sub-Assy, Fuel Tank Filler[01.2003 - 08.2005] ANE1#,ZNE1# |
77201-68010 |
US $148.51 |
||
| replacement | |||||
|
77201E
|
77201E
77201-68030 Pipe Sub-Assy, Fuel Tank FillerFUEL TANK FILLER [01.2003 - 08.2005] ANE1#,ZNE1# |
77201-68030 |
US $174.40 |
||
|
77209D
|
77209D
77209-68010 Tube Sub-Assy, Fuel Tank Main[01.2003 - 08.2005] ANE1#,ZNE10 |
77209-68010 |
US $18.20 |
||
|
77213B
|
77213B
77213-68010 Hose, Fuel Tank To Filler Pipe[01.2003 - 08.2005] ANE1#,ZNE10 |
77213-68010 |
US $44.18 |
||
|
77216A
|
77216A
77216-68010 Support, Fuel Tank Filler Pipe, No.1[01.2003 - 08.2005] ANE1#,ZNE1# |
77216-68010 |
US $11.83 |
||
|
77241W
|
77241W
77241-32060 Clip, Tube Joint[01.2003 - 08.2005] ZNE1# |
77241-32060 |
from US $0.86 |
||
|
77259A
|
77259A
77259-68010 Hose, Fuel(For Breather Tube)[01.2003 - 08.2005] ANE1#,ZNE10 |
77259-68010 |
US $25.03 |
||
|
77289B
|
77289B
77289-68010 Clamp, Fuel Tube, No.3[01.2003 - 08.2005] ANE1#,ZNE1# |
77289-68010 |
US $5.24 |
||
|
77291A
|
77291A
77291-68010 Shield, Fuel Tank Filler Pipe[01.2003 - 08.2005] ANE1#,ZNE1# |
77291-68010 |
US $27.81 |
||
|
77296B
|
77296B
77296-68010 Support, Fuel Tube Protector, No.1[01.2003 - 12.2003] ANE1#,ZNE1# |
77296-68010 |
US $8.15 |
||
| replacement | |||||
|
77296B
|
77296B
77296-68012 Support, Fuel Tube Protector, No.1[01.2003 - 12.2003] ANE1#,ZNE1# |
77296-68012 |
US $12.01 |
||
|
77296B
|
77296B
77296-68011 Support, Fuel Tube Protector, No.1[12.2003 - 02.2004] ANE1#,ZNE1# |
77296-68011 |
US $8.15 |
||
| replacement | |||||
|
77296B
|
77296B
77296-68012 Support, Fuel Tube Protector, No.1[12.2003 - 02.2004] ANE1#,ZNE1# |
77296-68012 |
US $12.01 |
||
|
77296B
|
77296B
77296-68012 Support, Fuel Tube Protector, No.1[03.2004 - 08.2005] ANE1#,ZNE1# |
77296-68012 |
US $12.01 |
||
|
77306
|
77306
77306-13020 Lever Sub-Assy, Fuel Lid Lock Open[01.2003 - 08.2005] ANE1#,ZNE1# |
77306-13020 |
US $12.72 |
||
|
77310A
|
77310A
77310-48010 Cap Assy, Fuel Tank[01.2003 - 08.2005] ANE1#,ZNE1# |
77310-48010 |
from US $30.89 |
||
|
77316
|
77316
77316-16010 Gasket (For Fuel Tank Cap)[01.2003 - 08.2005] ANE1#,ZNE1# |
77316-16010 |
from US $11.06 |
||
|
77340A
|
77340A
77340-68010 Valve Assy, Fuel Cut Off W/tube[01.2003 - 08.2005] ANE1#,ZNE10 |
77340-68010 |
US $51.98 |
||
|
77350
|
77350
77350-68010 Lid Assy, Fuel Filler Opening[01.2003 - 08.2005] ANE1#,ZNE1# |
77350-68010 |
US $40.04 |
||
|
77366
|
77366
77360-21010 Spring, Fuel Filler Opening Lid Hinge[01.2003 - 08.2005] ANE1#,ZNE1# |
77360-21010 |
from US $4.49 |
||
|
77377
|
77377
77377-12050 Bracket, Fuel Lid Lock Control[01.2003 - 08.2005] ANE1#,ZNE1# |
77377-12050 |
from US $3.90 |
||
|
77391
|
77391
77391-12020 Ring, Fuel Inlet Box[01.2003 - 08.2005] ANE1#,ZNE1# |
77391-12020 |
from US $1.97 |
||
|
77391A
|
77391A
77391-63010 Ring, Fuel Inlet Box[01.2003 - 08.2005] ANE1#,ZNE1# |
77391-63010 |
US $4.72 |
||
|
77601A
|
77601A
77601-68010 Band Sub-Assy, Fuel Tank, No.1[01.2003 - 08.2005] ANE1#,ZNE10 |
77601-68010 |
US $27.37 |
||
| replacement | |||||
|
77601A
|
77601A
77601-68011 Band Sub-Assy, Fuel Tank, No.1[01.2003 - 08.2005] ANE1#,ZNE10 |
77601-68011 |
US $22.57 |
||
|
77601A
|
77601A
77601-68011 Band Sub-Assy, Fuel Tank, No.1[04.2008 - 03.2009] ANE1#,ZNE10 |
77601-68011 |
US $22.57 |
||
|
77602B
|
77602B
77602-68010 Band Sub-Assy, Fuel Tank, No.1 Lh[01.2003 - 08.2005] ANE1#,ZNE10 |
77602-68010 |
US $20.82 |
||
|
77641A
|
77641A
77641-68010 Protector, Fuel Tank, No.1[01.2003 - 08.2005] ANE1#,ZNE10 |
77641-68010 |
US $27.23 |
||
|
77652
|
77652
77651-02060
Cushion, Fuel Tank, No.1
[11.2007 - 03.2009] ZNE10 （Ｌ） |
77651-02060 |
— | ||
|
77652
|
77652
77651-20090 Cushion, Fuel Tank, No.1[01.2003 - 08.2005] ANE1#,ZNE10 |
77651-20090 |
US $4.48 |
||
|
77681
|
77681
77616-36010 Seat, Fuel Tank Band[01.2003 - 05.2003] ANE1#,ZNE10 |
77616-36010 |
US $3.79 |
||
|
77681
|
77681
77616-68010 Seat, Fuel Tank Band, Rh[05.2003 - 08.2005] ANE1#,ZNE10 |
77616-68010 |
US $4.66 |
||
|
77682
|
77682
77616-68020 Seat, Fuel Tank Band, Rh[05.2003 - 08.2005] ANE1#,ZNE10 |
77616-68020 |
US $6.41 |
||
|
77682
|
77682
77682-16010 Seat, Fuel Tank Band, Rh[01.2003 - 05.2003] ANE1#,ZNE10 |
77682-16010 |
US $20.09 |
||
|
77785
|
77785
77785-32010 Harness, Fuel Pump[01.2003 - 08.2005] ANE1#,ZNE1# |
77785-32010 |
US $6.99 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
827112A250
|
827112A250
82711-2A250 Clamp (For Fuel Lid Lock Control Cable) |
82711-2A250 |
US $2.77 |
||
|
8963928090
|
8963928090
89639-28090 Wire, Brake Control |
89639-28090 |
US $4.48 |
||
|
9011910922
|
9011910922
90119-10922 BOLT WWASHER |
90119-10922 |
US $3.05 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.68 |
||
|
9026903067
|
9026903067
90269-03067 RIVET |
90269-03067 |
from US $0.82 |
||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.15 |
||
|
9030109021
|
9030109021
90301-09021 GASKET |
90301-09021 |
from US $2.15 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.23 |
||
|
9046046003
|
9046046003
90460-46003
Clamp (For Fuel Filler Pipe)
|
90460-46003 |
— | ||
| replacement | |||||
|
9046046003
|
9046046003
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.69 |
||
|
9046905001
|
9046905001
90469-05001 CLAMP |
90469-05001 |
US $3.49 |
||
|
9046906005
|
9046906005
90469-06005 Clamp(For Hood Lock Control Cable) |
90469-06005 |
from US $1.33 |
||
|
9095904001
|
9095904001
90959-04001 Clip, Fuel Hose |
90959-04001 |
from US $4.30 |
||
|
9163160622
|
9163160622
91631-60622 Screw |
91631-60622 |
US $1.25 |
||
