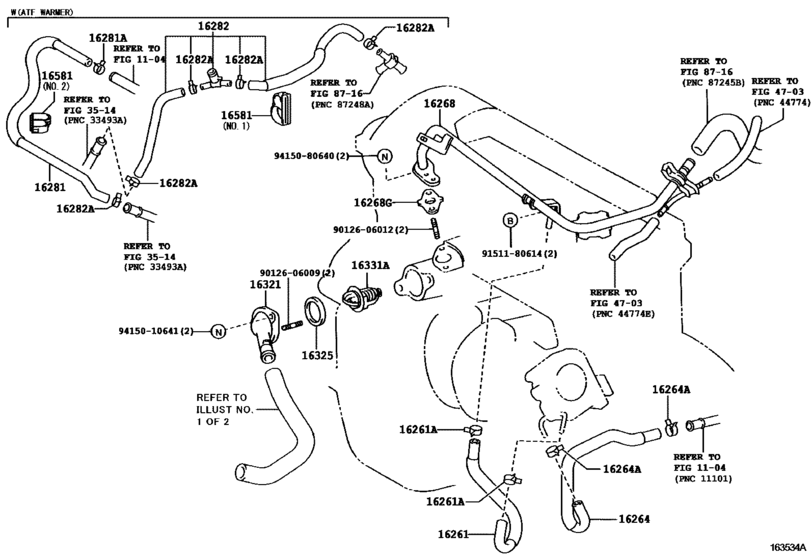

Radiator & Water Outlet ([08.2005 - ] (0508- )1ZZFE..ZNE10) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE10
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-0D030 Hose, Water By-Pass[06.2004 - 08.2005] 1ZZFE..ZNE1# （Ｌ） |
16261-0D030 |
US $1.01 |
||
|
16261
|
16261
16261-22080 Hose, Water By-Pass[01.2003 - 06.2004] 1ZZFE..ZNE1# |
16261-22080 |
from US $6.57 |
||
|
16261
|
16261
16261-22142 Hose, Water By-Pass[08.2005 - 03.2009] 1ZZFE..ZNE10 （Ｌ） |
16261-22142 |
from US $5.77 |
||
|
16261A
|
16261A
96135-51300 Clamp, Hose[01.2003 - 10.2003] 1ZZFE..ZNE1# |
96135-51300 |
from US $2.13 |
||
|
16261A
|
16261A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.2003 - 08.2005] 1ZZFE..ZNE1# |
96137-41501 |
from US $2.15 |
||
|
16264
|
16264
16264-0D020
Hose, Water By-Pass, No.2
[06.2004 - 08.2005] 1ZZFE..ZNE1# （Ｌ） |
16264-0D020 |
— | ||
|
16264
|
16264
16264-22090 Hose, Water By-Pass, No.2[01.2003 - 06.2004] 1ZZFE..ZNE1# |
16264-22090 |
from US $6.42 |
||
|
16264
|
16264
16264-22123 Hose, Water By-Pass, No.2[08.2005 - 03.2009] 1ZZFE..ZNE10 （Ｌ） |
16264-22123 |
from US $13.07 |
||
|
16264A
|
16264A
96135-51300 Clamp, Hose[01.2003 - 10.2003] 1ZZFE..ZNE1# |
96135-51300 |
from US $2.13 |
||
|
16264A
|
16264A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.2003 - 08.2005] 1ZZFE..ZNE1# |
96137-41501 |
from US $2.15 |
||
|
16268
|
16268
16268-22080 Pipe, Water By-Pass, No.1[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16268-22080 |
US $96.10 |
||
| replacement | |||||
|
16268
|
16268
16268-22101 Pipe, Water By-Pass, No.1[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16268-22101 |
from US $58.58 |
||
|
16268
|
16268
16268-22160 Pipe, Water By-Pass, No.1[08.2005 - 06.2008] 1ZZFE..ZNE10 |
16268-22160 |
US $87.36 |
||
| replacement | |||||
|
16268
|
16268
16268-22161 Pipe, Water By-Pass, No.1[08.2005 - 06.2008] 1ZZFE..ZNE10 |
16268-22161 |
from US $51.54 |
||
|
16268
|
16268
16268-22161 Pipe, Water By-Pass, No.1[06.2008 - 03.2009] 1ZZFE..ZNE10 |
16268-22161 |
from US $51.54 |
||
|
16268G
|
16268G
16258-22010 Gasket(For Water By-Pass Pipe)[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16258-22010 |
from US $2.65 |
||
|
16268G
|
16268G
16258-28030 Gasket(For Heater Return)[06.2008 - 03.2009] 1ZZFE..ZNE1# |
16258-28030 |
from US $2.67 |
||
|
16281
|
16281
16281-22050 Hose, Water By-Pass, No.4[01.2003 - 04.2003] 1ZZFE..ZNE10 |
16281-22050 |
US $26.50 |
||
|
16281
|
16281
16281-22060 Hose, Water By-Pass, No.4[04.2003 - 08.2005] 1ZZFE..ZNE10 |
16281-22060 |
US $30.91 |
||
|
16281A
|
16281A
96134-41900 Clip Or Clamp(For Ventilation Hose)[01.2003 - 08.2005] 1ZZFE..ZNE10 |
96134-41900 |
from US $1.61 |
||
|
16281A
|
16281A
96136-52201 Clip(For Ventilation Hose No.2)[12.2006 - 03.2009] 1ZZFE..ZNE10 |
96136-52201 |
from US $2.98 |
||
|
16282
|
16282
16282-22031 Hose, Water By-Pass, No.5[01.2003 - 11.2004] 1ZZFE..ZNE10 |
16282-22031 |
from US $27.59 |
||
|
16282
|
16282
16282-22080 Hose, Water By-Pass, No.5[11.2004 - 08.2005] 1ZZFE..ZNE10 |
16282-22080 |
US $32.76 |
||
|
16282A
|
16282A
96134-41900 Clip Or Clamp(For Ventilation Hose)[06.2007 - 03.2009] 1ZZFE..ZNE10 |
96134-41900 |
from US $1.61 |
||
|
16321
|
16321
16321-22070 Inlet, Water[01.2003 - 08.2005] 1ZZFE..ZNE1# |
16321-22070 |
from US $12.81 |
||
|
16325
|
16325
16325-0H020 Gasket, Water Inlet Housing, No.1[06.2004 - 08.2005] 1ZZFE..ZNE1# （Ｌ） |
16325-0H020 |
US $4.11 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[01.2003 - 06.2004] 1ZZFE..ZNE1# |
16325-62010 |
from US $4.06 |
||
|
16331A
|
16331A
90916-03129 Thermostat[01.2003 - 08.2005] 1ZZFE..ZNE1# ＊ＷＡＸ ８２−９５ |
90916-03129 |
from US $20.42 |
||
|
16581
|
16581
16581-22060 Clamp, Hose(For Water Hose)[01.2003 - 08.2005] 1ZZFE..ZNE10 ＮＯ．１ |
16581-22060 |
US $19.49 |
||
|
16581
|
16581
16581-22070 Clamp, Hose(For Water Hose)[01.2003 - 08.2005] 1ZZFE..ZNE10 ＮＯ．２ |
16581-22070 |
US $17.20 |
||
|
9012606009
|
9012606009
90126-06009 STUD HEX LOBULAR |
90126-06009 |
US $2.33 |
||
|
9012606012
|
9012606012
90126-06012 STUD, HEX LOBULAR |
90126-06012 |
from US $1.21 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
|
9415010641
|
9415010641
94150-10641 Nut |
94150-10641 |
US $1.08 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.74 |
||
