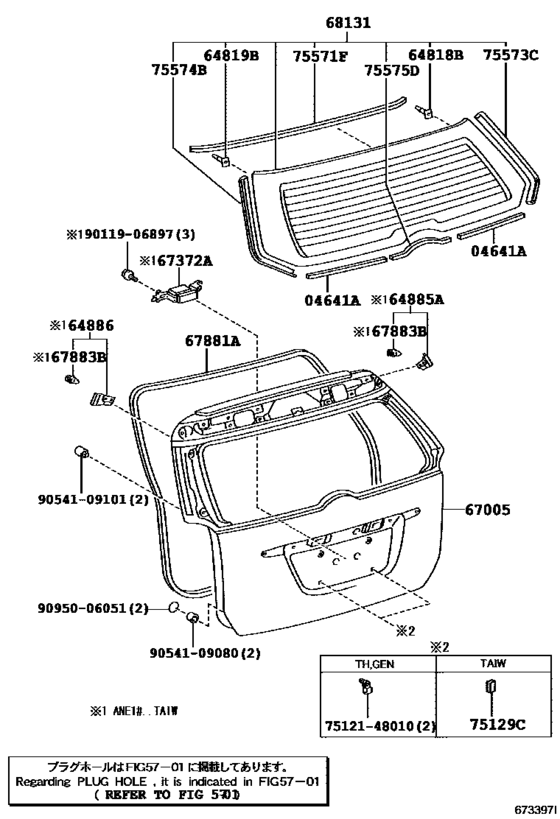

Back Door Panel & Glass ([12.2003 - ] (0312- )) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04641A
|
04641A
64813-68010 Dam Kit, Back Window Glass Adhesive[12.2005 -] ANE1#,ZNE10 |
64813-68010 |
US $10.93 |
||
|
64818B
|
64818B
64818-68010 Spacer, Back Door Glass, No.1[12.2005 -] ANE1#,ZNE10 |
64818-68010 |
US $6.45 |
||
|
64819B
|
64819B
64819-68010 Spacer, Back Window Glass, No.2[12.2005 -] ANE1#,ZNE10 |
64819-68010 |
US $6.45 |
||
|
67005
|
67005
67005-68010 Panel Sub-Assy, Back Door[04.2008 - 03.2009] ZNE10 |
67005-68010 |
from US $970.32 |
||
|
67881A
|
67881A
67881-68010 Weatherstrip, Back Door[12.2005 -] ANE1#,ZNE10 |
67881-68010 |
US $184 |
||
|
68131
|
68131
68105-68050
Glass, Back Door
[12.2005 - 07.2008] ANE11,ZNE10..RHD *EHTT,T=3.1,GREEN |
68105-68050 |
— | ||
| replacement | |||||
|
68131
|
68131
68105-68051 Glass, Back Door[12.2005 - 07.2008] ANE11,ZNE10..RHD *EHTT,T=3.1,GREEN |
68105-68051 |
US $523.73 |
||
|
68131
|
68131
68105-68051 Glass, Back Door[08.2008 -] ANE11,ZNE10..RHD *EHTT,T=3.1,GREEN |
68105-68051 |
US $523.73 |
||
|
75571F
|
75571F
75571-68010 Mouldimg, Back Door Window[12.2005 -] ANE1#,ZNE10 |
75571-68010 |
US $17.92 |
||
|
75573C
|
75573C
75573-68010 Moulding, Back Window, Outside[12.2005 -] ANE1#,ZNE10 |
75573-68010 |
US $22.34 |
||
|
75574B
|
75574B
75574-68010 Moulding, Back Window, Outside Lh[12.2005 -] ANE1#,ZNE10 |
75574-68010 |
US $22.34 |
||
|
75575D
|
75575D
75575-68010 Moulding, Back Window, Lower[12.2005 -] ANE1#,ZNE10 |
75575-68010 |
US $6.45 |
||
|
7512148010
|
7512148010
75121-48010 Cover, Door Panel Air Outlet, Lh |
75121-48010 |
US $6.81 |
||
|
9011906897
|
9011906897
90119-06897 BOLT WWASHER |
90119-06897 |
from US $0.70 |
||
|
9054109080
|
9054109080
90541-09080 Cushion(For Luggage Compartment Door Panel) |
90541-09080 |
from US $1.95 |
||
|
9054109101
|
9054109101
90541-09101 CUSHION |
90541-09101 |
from US $3.10 |
||
|
9095006051
|
9095006051
90950-06051 Protector, Rear Body, No.1 |
90950-06051 |
US $2.33 |
||
