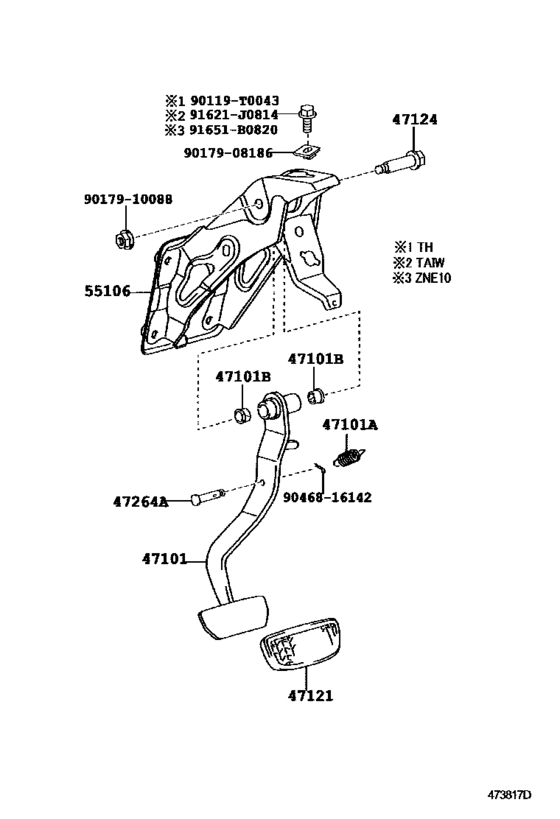

Brake Pedal & Bracket ([12.2003 - 10.2009] (0312-0910)) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-68010 Pedal Sub-Assy, Brake[12.2005 -] ANE11,ZNE10..RHD |
47101-68010 |
US $23.59 |
||
|
47101A
|
47101A
90507-15005 Spring(For Brake Pedal Return)[12.2005 -] ANE1#,ZNE10 |
90507-15005 |
US $2.62 |
||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[12.2005 -] ANE1#,ZNE10 |
90386-13015 |
from US $0.64 |
||
|
47121
|
47121
47121-52010 Pad, Brake Pedal[12.2005 -] ANE11,ZNE10..RHD |
47121-52010 |
from US $3.39 |
||
|
47124
|
47124
90109-10174 Shaft, Clutch Pedal[12.2005 -] ANE1#,ZNE10 |
90109-10174 |
US $2.48 |
||
|
47264A
|
47264A
90249-08051 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[12.2005 -] ANE1#,ZNE10 |
90249-08051 |
US $3.05 |
||
|
55106
|
55106
55106-68010 Support Sub-Assy, Brake Pedal[12.2005 - 10.2009] ANE11,ZNE10..RHD |
55106-68010 |
US $28.54 |
||
|
90119T0043
|
90119T0043
90119-T0043
New Genuine Part
|
90119-T0043 |
— | ||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9017908186
|
9017908186
90179-08186 New Genuine Part |
90179-08186 |
US $3.76 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.82 |
||
