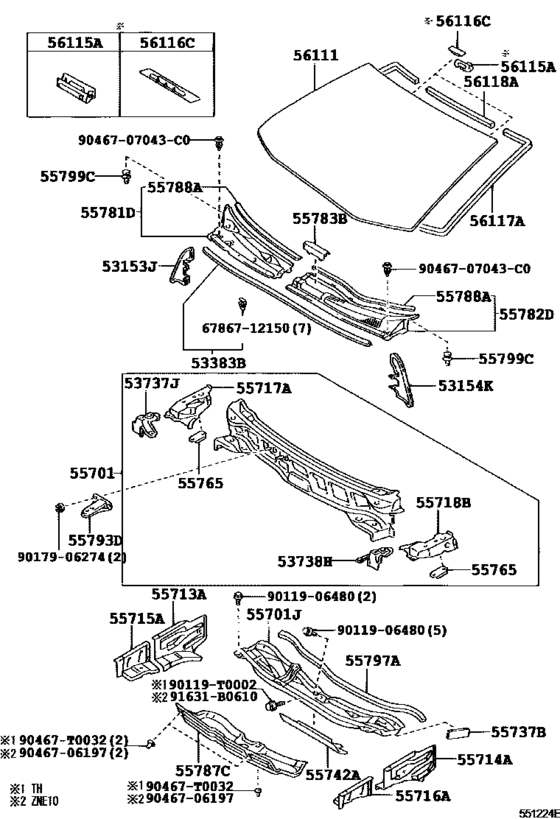

Cowl Panel & Windshield Glass ([12.2003 - ] (0312- )RHD) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53153J
|
53153J
53153-68010 Guide, Radiator Grille Side Air, Rh[12.2005 -] ANE11,ZNE10..RHD |
53153-68010 |
US $19.80 |
||
|
53154K
|
53154K
53154-68010 Guide, Radiator Grille Side Air, Lh[12.2005 -] ANE11,ZNE10..RHD |
53154-68010 |
US $19.80 |
||
|
53383B
|
53383B
53383-68010 Seal, Hood To Cowl Top[12.2005 -] ANE1#,ZNE10 |
53383-68010 |
US $12.67 |
||
|
53737J
|
53737J
53737-68010 Plate, Front Apron To Cowl Side Member, Rh[12.2005 -] ANE11,ZNE10..RHD |
53737-68010 |
US $9.17 |
||
|
53738H
|
53738H
53738-68010 Plate, Front Apron To Cowl Side Member, Lh[12.2005 -] ANE11,ZNE10..RHD |
53738-68010 |
US $9.17 |
||
|
55701
|
55701
55700-68012 Panel Sub-Assy, Cowl[12.2005 - 10.2009] ANE11,ZNE10..RHD |
55700-68012 |
US $180.54 |
||
|
55701J
|
55701J
55701-68011 Panel Sub-Assy, Cowl Top, Outer[12.2005 -] ANE11,ZNE10..RHD |
55701-68011 |
US $142.69 |
||
|
55713A
|
55713A
55713-68010 Panel, Cowl Top Side, Rh[12.2005 -] ANE1#,ZNE10 |
55713-68010 |
US $55.47 |
||
|
55714A
|
55714A
55714-68010 Panel, Cowl Top Side, Lh[12.2005 -] ANE1#,ZNE10 |
55714-68010 |
US $55.47 |
||
|
55715A
|
55715A
55715-68010 Brace, Cowl Top To Apron, Rh[12.2005 -] ANE1#,ZNE10..GEN,TAIW |
55715-68010 |
US $25.33 |
||
| replacement | |||||
|
55715A
|
55715A
55715-44040 Brace, Cowl Top To Apron, Rh[12.2005 -] ANE1#,ZNE10..GEN,TAIW |
55715-44040 |
US $19.07 |
||
|
55716A
|
55716A
55716-68010 Brace, Cowl Top To Apron, Lh[12.2005 -] ANE11,ZNE10..RHD |
55716-68010 |
US $19.07 |
||
|
55717A
|
55717A
55717-68010 Panel, Cowl Top Side, Inner Rh[12.2005 -] ANE1#,ZNE10 |
55717-68010 |
US $42.37 |
||
|
55718B
|
55718B
55718-68010 Panel, Cowl Top Side, Inner Lh[12.2005 -] ANE1#,ZNE10 |
55718-68010 |
US $42.37 |
||
|
55737B
|
55737B
55737-68010 Seal, Heater Air Duct Splash Shield, No.1[12.2005 -] ANE1#,ZNE10 |
55737-68010 |
US $3.93 |
||
|
55742A
|
55742A
55742-68011 Sheet, Cowl Top Insulator[12.2005 -] ANE11,ZNE10..RHD |
55742-68011 |
US $12.52 |
||
|
55765
|
55765
55765-44010 Bracket, Hood Damper Mounting[12.2005 -] ANE1#,ZNE10 |
55765-44010 |
US $5.56 |
||
|
55781D
|
55781D
55708-68010 Louver, Cowl Top Ventilator, Rh[12.2005 -] ANE11,ZNE10..RHD |
55708-68010 |
from US $81.54 |
||
|
55782D
|
55782D
55709-68010 Louver, Cowl Top Ventilator, Lh[12.2005 -] ANE11,ZNE10..RHD |
55709-68010 |
US $87.36 |
||
|
55783B
|
55783B
55783-68010 Louver, Cowl Top Ventilator, Center No.1[12.2005 -] ANE11,ZNE10..RHD |
55783-68010 |
US $23.69 |
||
|
55787C
|
55787C
55787-68011 Insulator, Cowl Top Panel, No.1[12.2005 -] ANE11,ZNE10..RHD |
55787-68011 |
US $45.72 |
||
|
55788A
|
55788A
55788-68010
Protector, Cowl Top Ventilator Louver
[12.2005 -] ANE11,ZNE10..RHD RH |
55788-68010 |
— | ||
| replacement | |||||
|
55788A
|
55788A
55789-68010 Protector, Cowl Top Ventilator Louver[12.2005 -] ANE11,ZNE10..RHD RH |
55789-68010 |
US $7.16 |
||
|
55788A
|
55788A
55789-68010 Protector, Cowl Top Ventilator Louver[12.2005 -] ANE11,ZNE10..RHD LH |
55789-68010 |
US $7.16 |
||
|
55793D
|
55793D
55793-68010 Bracket, Weatherstrip Wiper Pivot Guide, No.1[12.2005 -] ANE11,ZNE10..RHD |
55793-68010 |
US $7.28 |
||
|
55797A
|
55797A
55797-68010 Seal, Cowl Water Extract[12.2005 -] ANE1#,ZNE10 |
55797-68010 |
US $11.36 |
||
|
55799C
|
55799C
55799-68011 Clip, Cowl Top Ventilator Louver[12.2005 -] ANE1#,ZNE10 |
55799-68011 |
US $2.87 |
||
|
56111
|
56111
56101-68011 Glass, Windshield[04.2008 - 03.2009] ZNE10 *TL,T=4.76,GREEN |
56101-68011 |
US $1,374.46 |
||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[12.2005 -] ANE1#,ZNE10 |
56115-30100 |
from US $1.66 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[12.2005 -] ANE1#,ZNE10 |
56116-22050 |
from US $1.44 |
||
|
56117A
|
56117A
56117-68010 Dam, Window Glass Adhesive[12.2005 -] ANE1#,ZNE10 L=3462 |
56117-68010 |
US $15.72 |
||
| replacement | |||||
|
56117A
|
56117A
56117-64010 Dam, Window Glass Adhesive[12.2005 -] ANE1#,ZNE10 L=3462 |
56117-64010 |
from US $19.83 |
||
|
56118A
|
56118A
56118-68010 Dam, Window Glass Adhesive, No.2[12.2005 -] ANE1#,ZNE10 L=621 |
56118-68010 |
US $6.70 |
||
| replacement | |||||
|
56118A
|
56118A
56117-52040
Dam, Window Glass Adhesive
[12.2005 -] ANE1#,ZNE10 L=621 |
56117-52040 |
— | ||
|
90119T0002
|
90119T0002
90119-T0002
New Genuine Part
|
90119-T0002 |
— | ||
|
90467T0032
|
90467T0032
90467-T0032
Clip
|
90467-T0032 |
— | ||
|
91631B0610
|
91631B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
6786712150
|
6786712150
67867-12150 Clip(For Hood Air Intake Duct Seal) |
67867-12150 |
from US $1.79 |
||
|
9011906480
|
9011906480
90119-06480 BOLT |
90119-06480 |
from US $0.78 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046706197
|
9046706197
90467-06197 Clip |
90467-06197 |
from US $1.54 |
||
|
9046707043C0
|
9046707043C0
90467-07043-C0 Clip(For Rear Bumper Retainer) |
90467-07043-C0 |
from US $0.64 |
||
