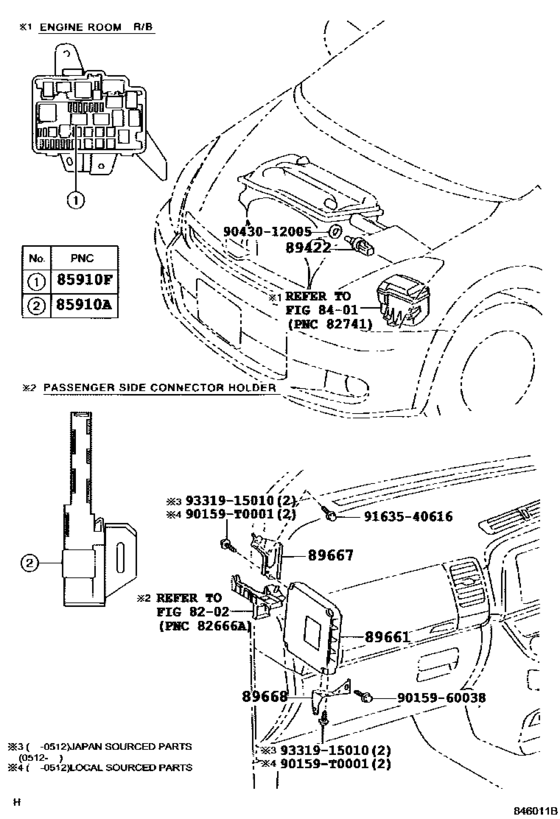

Electronic Fuel Injection System ([12.2003 - ] (0312- )RHD) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02022 Relay, Starter Cut[03.2007 - 09.2009] ANE1#,ZNE10..GEN,TAIW |
90987-02022 |
from US $51.50 |
||
|
85910F
|
85910F
90987-02022 Relay, Starter Cut[03.2007 - 09.2009] ANE1#,ZNE10..GEN,TAIW |
90987-02022 |
from US $51.50 |
||
|
89422
|
89422
89422-35010 Sensor, Water Temperature (For E.f.i.)[04.2008 - 03.2009] ZNE10 |
89422-35010 |
from US $44.67 |
||
|
89661
|
89661
89661-68120 Computer, Engine Control[04.2008 - 03.2009] ZNE10 |
89661-68120 |
US $1,514.24 |
||
|
89667
|
89667
89667-68020 Bracket, Engine Control Computer[12.2005 -] ANE11,ZNE10..RHD |
89667-68020 |
US $8.74 |
||
|
89668
|
89668
89668-68010 Bracket, Engine Control Computer, No.2[12.2005 -] ANE11,ZNE10..RHD |
89668-68010 |
US $7.43 |
||
|
90159T0001
|
90159T0001
90159-T0001
Screw,w/washer
|
90159-T0001 |
— | ||
|
9015960038
|
9015960038
90159-60038 SCREWTAPPING |
90159-60038 |
US $3.40 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9163540616
|
9163540616
91635-40616 New Genuine Part |
91635-40616 |
US $0.87 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
