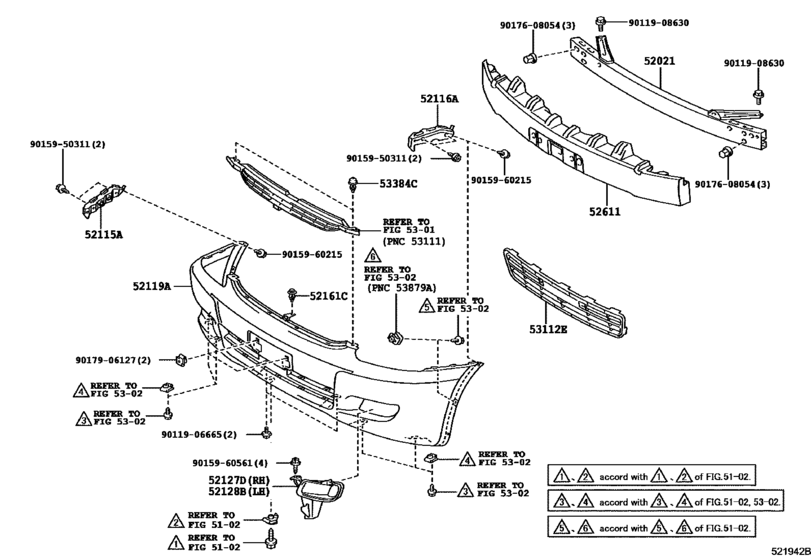

Front Bumper & Bumper Stay ([04.2008 - 03.2009] (0804-0903)ZNE10) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-68010 Reinforcement Sub-Assy, Front Bumper[12.2005 - 10.2009] ANE11,ZNE10..RHD |
52021-68010 |
US $201.28 |
||
|
52115A
|
52115A
52115-68020 Support, Front Bumper Side, Rh[12.2005 - 10.2009] ANE11,ZNE10..RHD |
52115-68020 |
US $34.61 |
||
|
52116A
|
52116A
52116-68020 Support, Front Bumper Side, Lh[12.2005 -] ANE11,ZNE10..RHD |
52116-68020 |
US $34.61 |
||
|
52119A
|
52119A
52119-68907
Cover, Front Bumper
[04.2008 - 05.2008] ZNE10 |
52119-68907 |
— | ||
| replacement | |||||
|
52119A
|
52119A
52119-68908 Cover, Front Bumper[04.2008 - 05.2008] ZNE10 |
52119-68908 |
US $594.36 |
||
|
52119A
|
52119A
52119-68908 Cover, Front Bumper[05.2008 - 03.2009] ZNE10 |
52119-68908 |
US $594.36 |
||
|
52127D
|
52127D
52127-68040 Cover, Front Bumper Hole, Rh[04.2008 - 03.2009] ZNE10 |
52127-68040 |
US $17.76 |
||
|
52128B
|
52128B
52128-68040 Cover, Front Bumper Hole, Lh[04.2008 - 03.2009] ZNE10 |
52128-68040 |
US $17.76 |
||
|
52161C
|
52161C
52161-16010 Clip[04.2008 - 03.2009] ZNE10 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[04.2008 - 03.2009] ZNE10 |
52161-0K040 |
from US $1.50 |
||
|
52161C
|
52161C
52161-02020 Clip[04.2008 - 03.2009] ZNE10 |
52161-02020 |
US $5.27 |
||
|
52611
|
52611
52611-68020 Absorber, Front Bumper Energy[12.2005 -] ANE11,ZNE10..RHD |
52611-68020 |
US $139.40 |
||
|
53112E
|
53112E
53112-68010 Grille, Radiator, Lower No.1[04.2008 - 03.2009] ZNE10 |
53112-68010 |
US $93.72 |
||
|
53384C
|
53384C
53384-68010 Cushion, Radiator Grille[12.2005 - 10.2009] ANE1#,ZNE10 |
53384-68010 |
from US $6.81 |
||
|
9011906665
|
9011906665
90119-06665 BOLT WWASHER |
90119-06665 |
from US $0.84 |
||
|
9011908630
|
9011908630
90119-08630 Bolt, W/washer(For Transmission Case Cover) |
90119-08630 |
US $2.15 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.13 |
||
|
9015960561
|
9015960561
90159-60561 SCREW WWASHER |
90159-60561 |
from US $0.68 |
||
|
9017608054
|
9017608054
90176-08054 NUT CAP |
90176-08054 |
US $2.51 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
