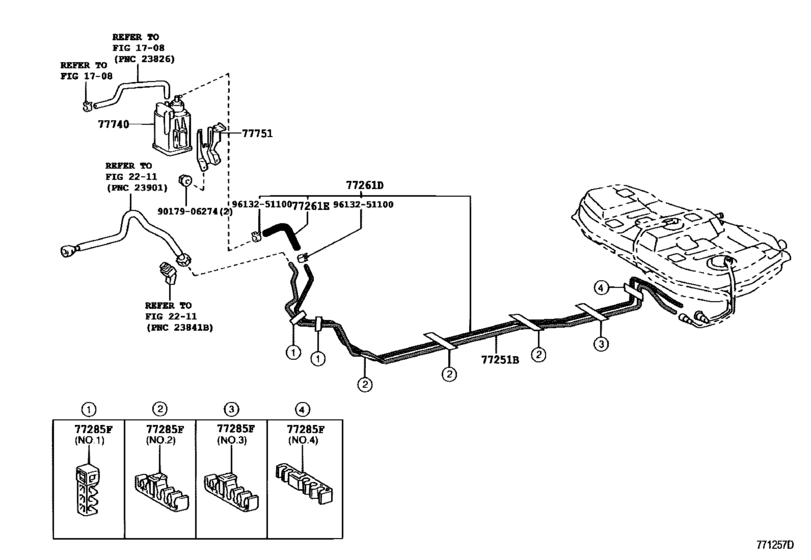

Fuel Tank & Tube ([04.2008 - ] FUEL TUBE (0804- )ZNE10) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-68010 Tube, Fuel Main[04.2008 - 03.2009] ZNE10 |
77251-68010 |
US $59.26 |
||
|
77261D
|
77261D
77019-68010 Tube, Fuel Tank To Canister[04.2008 - 03.2009] ZNE10 |
77019-68010 |
US $63.63 |
||
|
77261E
|
77261E
95337-06014 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)[12.2005 -] ANE11,ZNE10..RHD L=140 |
95337-06014 |
US $2.91 |
||
|
77285F
|
77285F
77289-68020 Clamp, Fuel Tube, No.1[12.2005 - 10.2009] ANE11,ZNE10..RHD NO.1 |
77289-68020 |
US $3.49 |
||
|
77285F
|
77285F
77298-68010 Clamp, Fuel Tube, No.1[12.2005 - 10.2009] ANE11,ZNE10..RHD NO.2 |
77298-68010 |
from US $4.06 |
||
|
77285F
|
77285F
77298-68020 Clamp, Fuel Tube, No.1[12.2005 - 10.2009] ANE1#,ZNE10 NO.3 |
77298-68020 |
US $5.02 |
||
|
77285F
|
77285F
77298-68030 Clamp, Fuel Tube, No.1[12.2005 - 10.2009] ANE1#,ZNE10 NO.4 |
77298-68030 |
from US $3.06 |
||
|
77740
|
77740
77740-12690 Canister Assy, Charcoal[12.2005 - 10.2009] ANE11,ZNE10..RHD |
77740-12690 |
US $134.53 |
||
|
77751
|
77751
77751-20390 Bracket, Charcoal Canister Base[12.2005 -] ANE11,ZNE10..RHD |
77751-20390 |
US $11.94 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
