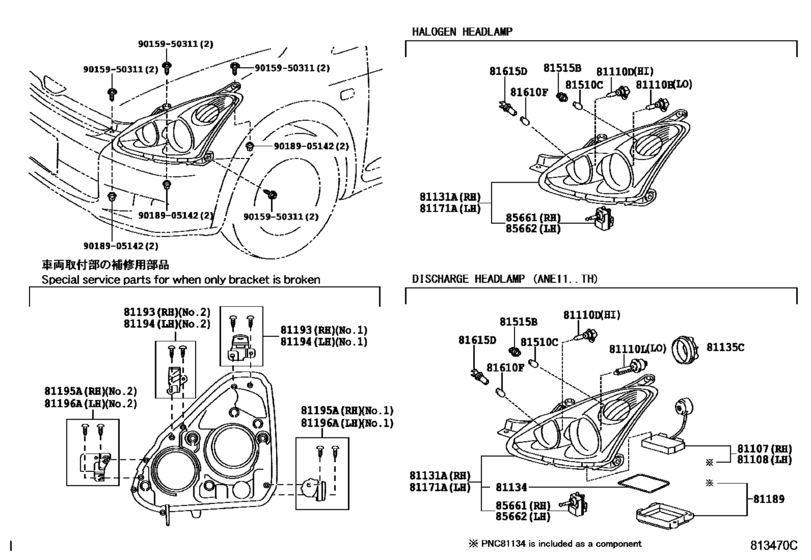

Headlamp ([12.2005 - ] (0512- )RHD) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110B
|
81110B
90981-13082
Bulb(For Headlamp, No.1)
[12.2005 -] ANE1#,ZNE10..07S..(20J,20Q,N) 12V 55W,HALOGEN; ANE11..06S..TH 12V 55W,HALOGEN,S PACKAGE |
90981-13082 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13075 Bulb(For Headlamp, No.1)[12.2005 -] ANE1#,ZNE10..07S..(20J,20Q,N) 12V 55W,HALOGEN; ANE11..06S..TH 12V 55W,HALOGEN,S PACKAGE |
90981-13075 |
from US $17.43 |
||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[12.2005 -] ANE1#,ZNE10 12V65W(SAE),60W(ECE) |
90981-13046 |
from US $16.34 |
||
|
81131A
|
81131A
81130-68040 Unit, Headlamp, Rh[04.2008 - 03.2009] ZNE10 |
81130-68040 |
US $678.60 |
||
|
81171A
|
81171A
81170-68040 Unit, Headlamp, Lh[04.2008 - 03.2009] ZNE10 |
81170-68040 |
from US $605.03 |
||
|
81193
|
81193
81193-68030 Retainer, Headlamp Protector, Upper Rh[12.2005 - 10.2009] ANE11,ZNE10..RHD NO.1 |
81193-68030 |
US $7.72 |
||
|
81193
|
81193
81193-68040 Retainer, Headlamp Protector, Upper Rh[12.2005 - 10.2009] ANE11,ZNE10..RHD NO.2 |
81193-68040 |
US $5.53 |
||
|
81194
|
81194
81194-68030 Retainer, Headlamp Protector, Upper Lh[12.2005 -] ANE11,ZNE10..RHD NO.1 |
81194-68030 |
US $7.72 |
||
|
81194
|
81194
81194-68040 Retainer, Headlamp Protector, Upper Lh[12.2005 -] ANE11,ZNE10..RHD NO.2 |
81194-68040 |
US $5.53 |
||
|
81195A
|
81195A
81195-68030 Retainer, Headlamp Protector, Lower Rh[12.2005 -] ANE11,ZNE10..RHD NO.1 |
81195-68030 |
US $6.55 |
||
|
81195A
|
81195A
81195-68040 Retainer, Headlamp Protector, Lower Rh[12.2005 -] ANE11,ZNE10..RHD NO.2 |
81195-68040 |
US $12.96 |
||
|
81196A
|
81196A
81196-68030 Retainer, Headlamp Protector, Lower Lh[12.2005 -] ANE11,ZNE10..RHD NO.1 |
81196-68030 |
US $6.55 |
||
|
81196A
|
81196A
81196-68040 Retainer, Headlamp Protector, Lower Lh[12.2005 -] ANE11,ZNE10..RHD NO.2 |
81196-68040 |
US $12.96 |
||
|
81510C
|
81510C
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[12.2005 -] ANE11,ZNE10..RHD 12V 21W,AMBER |
90981-15011 |
from US $4.60 |
||
|
81515B
|
81515B
81515-42050 Plug Assy, Front Turn Signal Lamp[12.2005 -] ANE11,ZNE10..RHD |
81515-42050 |
from US $10.41 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[12.2005 -] ANE1#,ZNE10 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[12.2005 -] ANE1#,ZNE10 12V 5W |
90080-81053 |
US $1.01 |
||
|
81615D
|
81615D
90075-60046 Socket Plug, No.1[12.2005 -] ANE1#,ZNE10 |
90075-60046 |
from US $6.30 |
||
|
85661
|
85661
85661-52010 Motor, Headlamp Leveling, Rh[04.2008 - 03.2009] ZNE10 |
85661-52010 |
from US $75.80 |
||
|
85662
|
85662
85661-52010 Motor, Headlamp Leveling, Rh[04.2008 - 03.2009] ZNE10 |
85661-52010 |
from US $75.80 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.72 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.76 |
||
