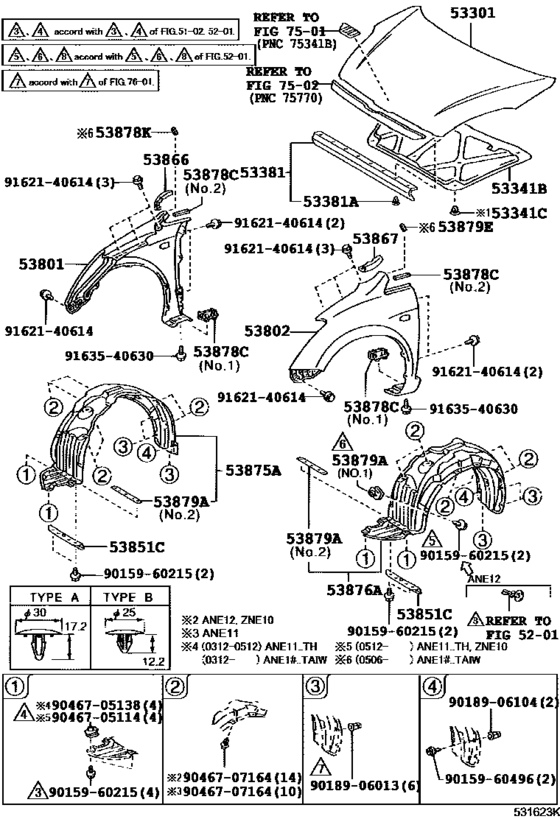

Hood & Front Fender ([12.2003 - 10.2009] (0312-0910)) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-68012 Hood Sub-Assy[12.2005 - 10.2009] ANE11,ZNE10..RHD |
53301-68012 |
US $441.70 |
||
|
53341B
|
53341B
53341-68010 Insulator, Hood[12.2005 -] ANE11,ZNE10..RHD |
53341-68010 |
US $110.88 |
||
|
53341C
|
53341C
90467-09006 Clip(For Hood Insulator)[12.2005 -] ANE11,ZNE10..RHD TYPE A:REFER ILLUST. |
90467-09006 |
from US $0.80 |
||
|
53381
|
53381
53381-20180 Seal, Hood To Radiator Support[12.2005 -] ANE1#,ZNE10 |
53381-20180 |
US $21.50 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[12.2005 -] ANE1#,ZNE10 |
90467-08011 |
from US $0.33 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[12.2005 -] ANE1#,ZNE10 |
90467-08011-TH |
US $0.31 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [12.2005 -] ANE1#,ZNE10 |
90467-08011-83 |
US $3.60 |
||
|
53801
|
53801
53801-68010 Fender Sub-Assy, Front Rh[04.2008 - 03.2009] ZNE10 |
53801-68010 |
US $496.08 |
||
|
53802
|
53802
53802-68010 Fender Sub-Assy, Front Lh[04.2008 - 03.2009] ZNE10 |
53802-68010 |
US $496.08 |
||
|
53866
|
53866
53866-68010 Seal, Front Fender To Cowl Side, Rh[12.2005 - 10.2008] ANE1#,ZNE10 |
53866-68010 |
US $11.94 |
||
| replacement | |||||
|
53866
|
53866
53866-68011 Seal, Front Fender To Cowl Side, Rh[12.2005 - 10.2008] ANE1#,ZNE10 |
53866-68011 |
US $16.13 |
||
|
53866
|
53866
53866-68011 Seal, Front Fender To Cowl Side, Rh[11.2008 -] ANE11,ZNE10..RHD |
53866-68011 |
US $16.13 |
||
|
53867
|
53867
53867-68010 Seal, Front Fender To Cowl Side, Lh[12.2005 - 10.2008] ANE1#,ZNE10 |
53867-68010 |
US $12.08 |
||
| replacement | |||||
|
53867
|
53867
53867-68011 Seal, Front Fender To Cowl Side, Lh[12.2005 - 10.2008] ANE1#,ZNE10 |
53867-68011 |
US $16.13 |
||
|
53867
|
53867
53867-68011 Seal, Front Fender To Cowl Side, Lh[11.2008 -] ANE11,ZNE10..RHD |
53867-68011 |
US $16.13 |
||
|
53875A
|
53875A
53875-68012 Liner, Front Fender, Rh[12.2005 -] ANE11,ZNE10..RHD |
53875-68012 |
US $101.68 |
||
|
53876A
|
53876A
53876-68012 Liner, Front Fender, Lh[12.2005 -] ANE11,ZNE10..RHD |
53876-68012 |
US $101.68 |
||
|
53878C
|
53878C
53878-20050 Spacer, Front Fender[12.2005 - 10.2009] ANE1#,ZNE10 NO.1 |
53878-20050 |
US $12.01 |
||
|
53878C
|
53878C
53888-68010 Spacer, Front Fender[12.2005 - 10.2009] ANE1#,ZNE10 NO.2 |
53888-68010 |
US $6.45 |
||
|
53879A
|
53879A
53879-44010 Retainer, Front Fender Liner[04.2008 - 03.2009] ZNE10 NO.1 |
53879-44010 |
from US $2.57 |
||
|
53879A
|
53879A
53879-68010 Retainer, Front Fender Liner[12.2005 - 10.2009] ANE11,ZNE10..RHD NO.2 |
53879-68010 |
US $6.63 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.13 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.62 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9018906104
|
9018906104
90189-06104 CLIP |
90189-06104 |
from US $1.17 |
||
|
9046705114
|
9046705114
90467-05114 Clip(For Front Bumper), No.1 |
90467-05114 |
from US $2.09 |
||
|
9046705138
|
9046705138
90467-05138 Clip(For Front Bumper Retainer) |
90467-05138 |
from US $2.05 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.21 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $0.76 |
||
|
9163540630
|
9163540630
91635-40630 New Genuine Part |
91635-40630 |
US $1.16 |
||
| replacement | |||||
|
9163540630
|
9163540630
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
