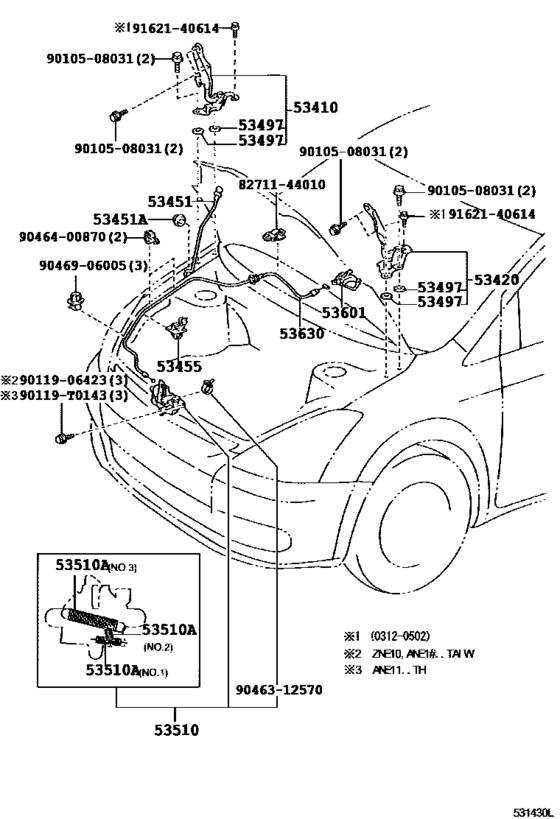

Hood Lock & Hinge ([12.2003 - 10.2009] (0312-0910)) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-68010 Hinge Assy, Hood, Rh[12.2005 - 10.2009] ANE11,ZNE10..RHD |
53410-68010 |
US $30.84 |
||
|
53420
|
53420
53420-68010 Hinge Assy, Hood, Lh[12.2005 - 10.2009] ANE11,ZNE10..RHD |
53420-68010 |
US $30.84 |
||
|
53451
|
53451
53440-68010 Rod, Hood Support[12.2005 -] ANE11,ZNE10..RHD |
53440-68010 |
US $16.70 |
||
|
53451A
|
53451A
90480-15034 Grommet(For Hood Support)[12.2005 -] ANE1#,ZNE10 |
90480-15034 |
from US $1.79 |
||
|
53455
|
53455
53455-68010 Clamp, Hood Support Rod[12.2005 -] ANE1#,ZNE10 |
53455-68010 |
from US $5.34 |
||
|
53497
|
53497
53497-42010 Pad, Hood Hinge, No.1[12.2005 -] ANE1#,ZNE10 T=0.5 |
53497-42010 |
US $1.79 |
||
|
53510
|
53510
53510-68020 Lock Assy, Hood[12.2005 -] ANE11,ZNE10..07S; ANE11..06S..TH S PACKAGE |
53510-68020 |
US $38.36 |
||
|
53510A
|
53510A
90506-09055 Spring, Tension(For Hood Lock)[12.2005 -] ANE1#,ZNE10 WD=0.9,CW=21,NO.1 |
90506-09055 |
from US $1.52 |
||
|
53510A
|
53510A
90506-12063 Spring, Tension(For Hood Lock)[12.2005 -] ANE1#,ZNE10 WD=1.2,CW=8.5,NO.2 |
90506-12063 |
from US $1.33 |
||
|
53510A
|
53510A
90506-18067 Spring, Tension(For Hood Lock)[12.2005 -] ANE1#,ZNE10 WD=1.8,CW=13,NO.3 |
90506-18067 |
from US $1.48 |
||
|
53601
|
53601
53601-52010-B3 Lever Sub-Assy, Hood Lock Control[03.2007 - 09.2009] ANE1#,ZNE10..GEN,TAIW DK.GRAY,TRIM1# |
53601-52010-B3 |
from US $26.04 |
||
|
53630
|
53630
53630-20620 Cable Assy, Hood Lock Control[12.2005 -] ANE11,ZNE10..RHD |
53630-20620 |
US $19.31 |
||
|
90119T0143
|
90119T0143
90119-T0143 Bolt, Hood Lock |
90119-T0143 |
US $0.76 |
||
|
8271144010
|
8271144010
82711-44010
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-44010 |
— | ||
|
9010508031
|
9010508031
90105-08031 BOLT |
90105-08031 |
US $1.97 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.58 |
||
|
9046400870
|
9046400870
90464-00870 New Genuine Part |
90464-00870 |
US $4.80 |
||
|
9046906005
|
9046906005
90469-06005 Clamp(For Hood Lock Control Cable) |
90469-06005 |
from US $1.33 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $0.76 |
