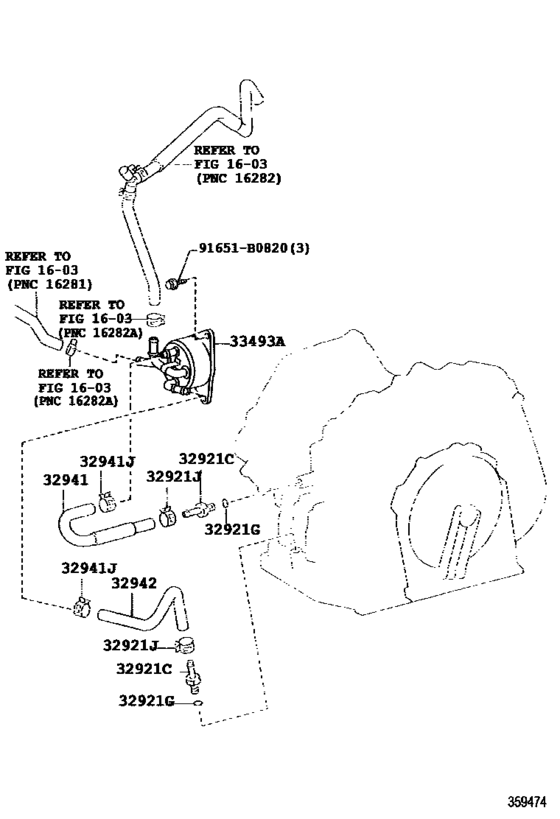

Oil Cooler & Tube (Atm) ([04.2008 - 03.2009] U341E (0804-0903)ZNE10) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32921C
|
32921C
90404-13004
Union(For Oil Cooler Tube)
[04.2008 - 03.2009] ZNE10 |
90404-13004 |
— | ||
| replacement | |||||
|
32921C
|
32921C
90404-13010 Union(For Oil Cooler Tube)[04.2008 - 03.2009] ZNE10 |
90404-13010 |
US $5.56 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[12.2005 - 10.2009] ANE1#,ZNE10 |
90301-10189 |
from US $2.63 |
||
|
32921J
|
32921J
90467-16022 Clip(For Water Inlet Hose)[12.2005 -] ANE1#,ZNE10 |
90467-16022 |
from US $2.32 |
||
|
32941
|
32941
32941-68010 Hose, Oil Cooler Inlet, No.1[04.2008 - 03.2009] ZNE10 |
32941-68010 |
US $30.91 |
||
|
32941J
|
32941J
90466-16004 Clip(For Ventilation Hose No.2)[02.2009 -] ANE1#,ZNE10 |
90466-16004 |
from US $1.85 |
||
|
32941J
|
32941J
90467-16022 Clip(For Water Inlet Hose)[12.2005 - 01.2009] ANE1#,ZNE10 |
90467-16022 |
from US $2.32 |
||
|
32942
|
32942
32942-68010 Hose, Oil Cooler Outlet, No.1[04.2008 - 03.2009] ZNE10 |
32942-68010 |
US $25.87 |
||
|
33493A
|
33493A
33493-20021 Cooler, Transmission Oil[04.2008 - 03.2009] ZNE10 |
33493-20021 |
US $291.20 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
