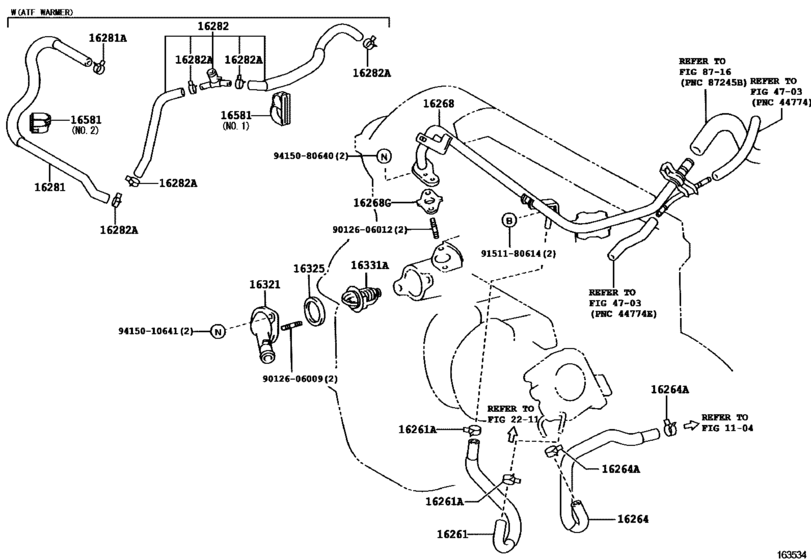

Radiator & Water Outlet ([04.2008 - ] (0804- )1ZZFE) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-22142 Hose, Water By-Pass[04.2008 - 03.2009] 1ZZFE..ZNE10 (L) |
16261-22142 |
from US $5.77 |
||
|
16261A
|
16261A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2008 - 03.2009] 1ZZFE..ZNE10 |
96137-41501 |
from US $2.15 |
||
|
16264
|
16264
16264-22123 Hose, Water By-Pass, No.2[04.2008 - 03.2009] 1ZZFE..ZNE10 (L) |
16264-22123 |
from US $13.07 |
||
|
16264A
|
16264A
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2008 - 03.2009] 1ZZFE..ZNE10 |
96137-41501 |
from US $2.15 |
||
|
16268
|
16268
16268-22160 Pipe, Water By-Pass, No.1[04.2008 - 06.2008] 1ZZFE..ZNE10 |
16268-22160 |
US $87.36 |
||
| replacement | |||||
|
16268
|
16268
16268-22161 Pipe, Water By-Pass, No.1[04.2008 - 06.2008] 1ZZFE..ZNE10 |
16268-22161 |
from US $51.54 |
||
|
16268
|
16268
16268-22161 Pipe, Water By-Pass, No.1[06.2008 - 03.2009] 1ZZFE..ZNE10 |
16268-22161 |
from US $51.54 |
||
|
16268G
|
16268G
16258-22010 Gasket(For Water By-Pass Pipe)[04.2008 - 06.2008] 1ZZFE..ZNE10 |
16258-22010 |
from US $2.65 |
||
|
16268G
|
16268G
16258-28030 Gasket(For Heater Return)[06.2008 - 03.2009] 1ZZFE..ZNE10 |
16258-28030 |
from US $2.67 |
||
|
16281
|
16281
16281-22060 Hose, Water By-Pass, No.4[04.2008 - 03.2009] 1ZZFE..ZNE10 |
16281-22060 |
US $30.91 |
||
|
16281A
|
16281A
96136-52201 Clip(For Ventilation Hose No.2)[04.2008 - 03.2009] 1ZZFE..ZNE10 |
96136-52201 |
from US $2.98 |
||
|
16282
|
16282
16282-22080 Hose, Water By-Pass, No.5[04.2008 - 03.2009] 1ZZFE..ZNE10 |
16282-22080 |
US $32.76 |
||
|
16282A
|
16282A
96134-41900 Clip Or Clamp(For Ventilation Hose)[04.2008 - 03.2009] 1ZZFE..ZNE10 |
96134-41900 |
from US $1.61 |
||
|
16321
|
16321
16321-22070 Inlet, Water[04.2008 - 03.2009] 1ZZFE..ZNE10 |
16321-22070 |
from US $12.81 |
||
|
16325
|
16325
16325-0H020 Gasket, Water Inlet Housing, No.1[04.2008 - 03.2009] 1ZZFE..ZNE10 (L) |
16325-0H020 |
US $4.11 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[04.2008 - 03.2009] 1ZZFE..ZNE10 (J) |
16325-62010 |
from US $4.06 |
||
|
16331A
|
16331A
90916-03129 Thermostat[04.2008 - 03.2009] 1ZZFE..ZNE10 *WAX 82-95 |
90916-03129 |
from US $20.42 |
||
|
16581
|
16581
16581-22060 Clamp, Hose(For Water Hose)[04.2008 - 03.2009] 1ZZFE..ZNE10 NO.1 |
16581-22060 |
US $19.49 |
||
|
16581
|
16581
16581-22070 Clamp, Hose(For Water Hose)[04.2008 - 03.2009] 1ZZFE..ZNE10 NO.2 |
16581-22070 |
US $17.20 |
||
|
9012606009
|
9012606009
90126-06009 STUD HEX LOBULAR |
90126-06009 |
US $2.33 |
||
|
9012606012
|
9012606012
90126-06012 STUD, HEX LOBULAR |
90126-06012 |
from US $1.21 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
|
9415010641
|
9415010641
94150-10641 Nut |
94150-10641 |
US $1.08 |
||
|
9415080640
|
9415080640
94150-80640 NUT FLANGE |
94150-80640 |
from US $0.74 |
||
