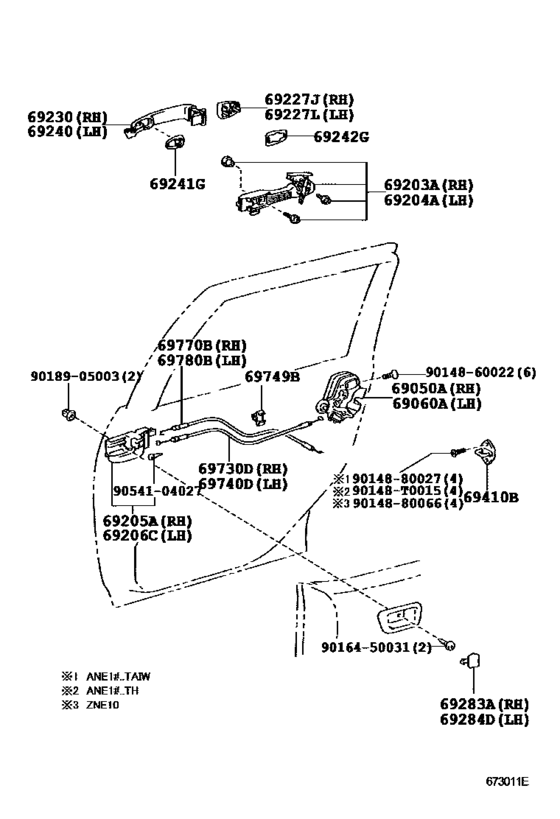

Rear Door Lock & Handle ([12.2003 - ] (0312- )) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69050A
|
69050A
69050-52120 Lock Assy, Rear Door W/motor, Rh[12.2005 -] ANE11,ZNE10..RHD |
69050-52120 |
US $165.92 |
||
|
69060A
|
69060A
69060-52120 Lock Assy, Rear Door W/motor, Lh[12.2005 -] ANE11,ZNE10..RHD |
69060-52120 |
US $211.20 |
||
|
69203A
|
69203A
69203-68010 Frame Sub-Assy, Rear Door Outside Handle, Rh[12.2005 -] ANE1#,ZNE10 |
69203-68010 |
US $54.05 |
||
|
69204A
|
69204A
69204-68010 Frame Sub-Assy, Rear Door Outside Handle, Lh[12.2005 -] ANE1#,ZNE10 |
69204-68010 |
US $45.14 |
||
|
69205A
|
69205A
69205-12200-B1 Handle Sub-Assy, Front Door Inside, Rh[04.2008 - 03.2009] ZNE10 DK.GRAY,TRIM1# |
69205-12200-B1 |
from US $30.36 |
||
|
69206C
|
69206C
69206-12200-B1 Handle Sub-Assy, Front Door Inside, Lh[04.2008 - 03.2009] ZNE10 DK.GRAY,TRIM1# |
69206-12200-B1 |
from US $30.67 |
||
|
69227J
|
69227J
69227-60020-A1 Cover, Rear Door Outside Handle, Rh[09.2008 - 03.2009] ZNE10 WHITE PEARL CS.,070 |
69227-60020-A1 |
US $6.46 |
||
|
69227J
|
69227J
69227-60020-B1 Cover, Rear Door Outside Handle, Rh[04.2008 - 03.2009] ZNE10 DK.GRAY M.M.,1E9 |
69227-60020-B1 |
US $8.15 |
||
|
69227J
|
69227J
69227-60020-C1
Cover, Rear Door Outside Handle, Rh
[09.2008 - 03.2009] ZNE10 BLACK MC.,209 |
69227-60020-C1 |
— | ||
| replacement | |||||
|
69227J
|
69227J
69227-60020-C0 Cover, Rear Door Outside Handle, Rh[09.2008 - 03.2009] ZNE10 BLACK MC.,209 |
69227-60020-C0 |
from US $6.33 |
||
|
69227J
|
69227J
69227-60020-P0 Cover, Rear Door Outside Handle, Rh[04.2008 - 03.2009] ZNE10 GRAY ME.,1D2 |
69227-60020-P0 |
US $9.90 |
||
|
69227J
|
69227J
69227-60020-P2 Cover, Rear Door Outside Handle, Rh[04.2008 - 03.2009] ZNE10 SILVER ME.,1F7 |
69227-60020-P2 |
US $10.75 |
||
|
69227J
|
69227J
69227-60020-R4 Cover, Rear Door Outside Handle, Rh[04.2008 - 03.2009] ZNE10 DK.BLUE MC.,8S6 |
69227-60020-R4 |
US $6.70 |
||
|
69227L
|
69227L
69227-60020-A1 Cover, Rear Door Outside Handle, Rh[09.2008 - 03.2009] ZNE10 WHITE PEARL CS.,070 |
69227-60020-A1 |
US $6.46 |
||
|
69227L
|
69227L
69227-60020-B1 Cover, Rear Door Outside Handle, Rh[04.2008 - 03.2009] ZNE10 DK.GRAY M.M.,1E9 |
69227-60020-B1 |
US $8.15 |
||
|
69227L
|
69227L
69227-60020-C1
Cover, Rear Door Outside Handle, Rh
[09.2008 - 03.2009] ZNE10 BLACK MC.,209 |
69227-60020-C1 |
— | ||
| replacement | |||||
|
69227L
|
69227L
69227-60020-C0 Cover, Rear Door Outside Handle, Rh[09.2008 - 03.2009] ZNE10 BLACK MC.,209 |
69227-60020-C0 |
from US $6.33 |
||
|
69227L
|
69227L
69227-60020-P0 Cover, Rear Door Outside Handle, Rh[04.2008 - 03.2009] ZNE10 GRAY ME.,1D2 |
69227-60020-P0 |
US $9.90 |
||
|
69227L
|
69227L
69227-60020-P2 Cover, Rear Door Outside Handle, Rh[04.2008 - 03.2009] ZNE10 SILVER ME.,1F7 |
69227-60020-P2 |
US $10.75 |
||
|
69227L
|
69227L
69227-60020-R4 Cover, Rear Door Outside Handle, Rh[04.2008 - 03.2009] ZNE10 DK.BLUE MC.,8S6 |
69227-60020-R4 |
US $6.70 |
||
|
69230
|
69230
69211-28070-A3 Handle Assy, Front Door, Outside Rh[09.2008 - 03.2009] ZNE10 WHITE PEARL CS.,070 |
69211-28070-A3 |
US $35.95 |
||
|
69230
|
69230
69211-28070-B4 Handle Assy, Front Door, Outside Rh[04.2008 - 03.2009] ZNE10 DK.GRAY M.M.,1E9 |
69211-28070-B4 |
US $29.41 |
||
|
69230
|
69230
69211-28070-C0 Handle Assy, Front Door, Outside Rh[09.2008 - 03.2009] ZNE10 BLACK MC.,209 |
69211-28070-C0 |
US $24.46 |
||
|
69230
|
69230
69211-28070-P0 Handle Assy, Front Door, Outside Rh[04.2008 - 03.2009] ZNE10 GRAY ME.,1D2 |
69211-28070-P0 |
US $35.38 |
||
|
69230
|
69230
69211-28070-P2 Handle Assy, Front Door, Outside Rh[04.2008 - 03.2009] ZNE10 SILVER ME.,1F7 |
69211-28070-P2 |
US $35.95 |
||
|
69230
|
69230
69211-28070-R9 Handle Assy, Front Door, Outside Rh[04.2008 - 03.2009] ZNE10 DK.BLUE MC.,8S6 |
69211-28070-R9 |
US $29.38 |
||
|
69240
|
69240
69211-28070-A3 Handle Assy, Front Door, Outside Rh[09.2008 - 03.2009] ZNE10 WHITE PEARL CS.,070 |
69211-28070-A3 |
US $35.95 |
||
|
69240
|
69240
69211-28070-B4 Handle Assy, Front Door, Outside Rh[04.2008 - 03.2009] ZNE10 DK.GRAY M.M.,1E9 |
69211-28070-B4 |
US $29.41 |
||
|
69240
|
69240
69211-28070-C0 Handle Assy, Front Door, Outside Rh[09.2008 - 03.2009] ZNE10 BLACK MC.,209 |
69211-28070-C0 |
US $24.46 |
||
|
69240
|
69240
69211-28070-P0 Handle Assy, Front Door, Outside Rh[04.2008 - 03.2009] ZNE10 GRAY ME.,1D2 |
69211-28070-P0 |
US $35.38 |
||
|
69240
|
69240
69211-28070-P2 Handle Assy, Front Door, Outside Rh[04.2008 - 03.2009] ZNE10 SILVER ME.,1F7 |
69211-28070-P2 |
US $35.95 |
||
|
69240
|
69240
69211-28070-R9 Handle Assy, Front Door, Outside Rh[04.2008 - 03.2009] ZNE10 DK.BLUE MC.,8S6 |
69211-28070-R9 |
US $29.38 |
||
|
69241G
|
69241G
69241-28060 Pad, Front Door Outside Handle, Rh[12.2005 -] ANE1#,ZNE10 |
69241-28060 |
from US $0.84 |
||
|
69242G
|
69242G
69242-60030 Pad, Front Door Outside Handle, Lh[04.2008 - 03.2009] ZNE10 |
69242-60030 |
from US $6.45 |
||
|
69283A
|
69283A
69283-13010-B0 Plug, Front Door Inside Handle Bezel, Rh[12.2005 - 10.2009] ANE1#,ZNE10 DK.GRAY,TRIM1# |
69283-13010-B0 |
US $3.93 |
||
|
69284D
|
69284D
69283-13010-B0 Plug, Front Door Inside Handle Bezel, Rh[12.2005 - 10.2009] ANE1#,ZNE10 DK.GRAY,TRIM1# |
69283-13010-B0 |
US $3.93 |
||
|
69410B
|
69410B
69410-33010 Plate Assy, Front Door Lock Striker[12.2005 -] ANE11,ZNE10..RHD |
69410-33010 |
from US $18.04 |
||
|
69730D
|
69730D
69730-68010 Cable Assy, Rear Door Lock Remote Control, Rh[12.2005 -] ANE11,ZNE10..RHD |
69730-68010 |
US $22.13 |
||
|
69740D
|
69740D
69730-68010 Cable Assy, Rear Door Lock Remote Control, Rh[12.2005 -] ANE11,ZNE10..RHD |
69730-68010 |
US $22.13 |
||
|
69749B
|
69749B
69749-32040 Clamp, Front Door Lock Link[12.2005 -] ANE1#,ZNE10 |
69749-32040 |
US $3.76 |
||
|
69770B
|
69770B
69770-68010 Cable Assy, Rear Door Inside Locking, Rh[12.2005 -] ANE11,ZNE10..RHD |
69770-68010 |
US $23 |
||
|
69780B
|
69780B
69780-68010 Cable Assy, Rear Door Inside Locking, Lh[12.2005 -] ANE11,ZNE10..RHD |
69780-68010 |
US $20.82 |
||
|
90148T0015
|
90148T0015
90148-T0015 SCREWHEXALOBULAR |
90148-T0015 |
US $0.68 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.49 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $8.06 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.66 |
||
|
9016450031
|
9016450031
90164-50031 SCREW BINDING |
90164-50031 |
from US $0.64 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.13 |
||
|
9054104027
|
9054104027
90541-04027 Cushion(For Front Door Inside Handle) |
90541-04027 |
from US $1.79 |
||
