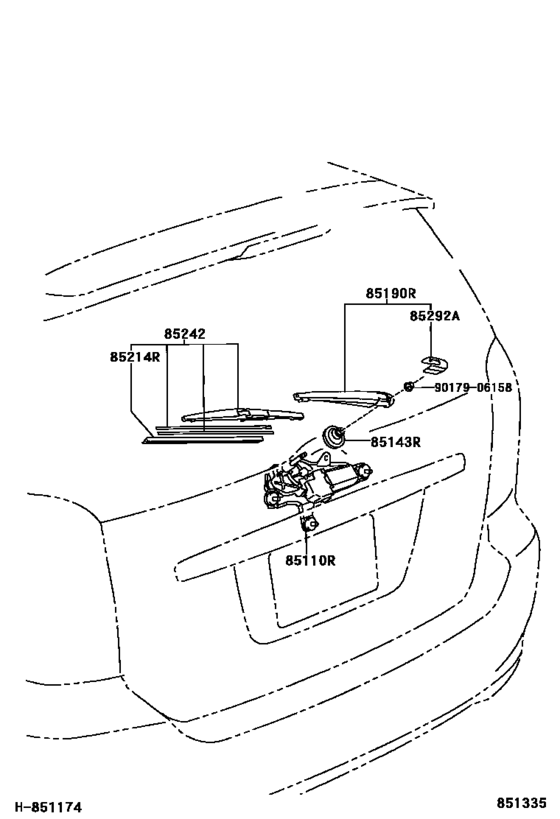

Rear Wiper ([12.2003 - ] (0312- )) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85130-68010 Motor Assy, Rear Wiper[12.2005 -] ANE1#,ZNE10 |
85130-68010 |
US $243.15 |
||
|
85143R
|
85143R
85143-42030 Grommet, Rear Wiper Motor[12.2005 -] ANE1#,ZNE10 |
85143-42030 |
US $2.09 |
||
|
85190R
|
85190R
85241-42040 Arm Assy, Rear Wiper[12.2005 -] ANE1#,ZNE10 |
85241-42040 |
from US $31.57 |
||
|
85214R
|
85214R
85214-42040 Rubber, Rear Wiper[12.2005 -] ANE1#,ZNE10 |
85214-42040 |
from US $6.47 |
||
|
85242
|
85242
85242-42020 Blade Assy, Rear Wiper[12.2005 -] ANE1#,ZNE10 |
85242-42020 |
from US $17.96 |
||
|
85292A
|
85292A
85292-28030 Cover, Rear Wiper Arm[12.2005 -] ANE1#,ZNE10 |
85292-28030 |
from US $3.28 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
