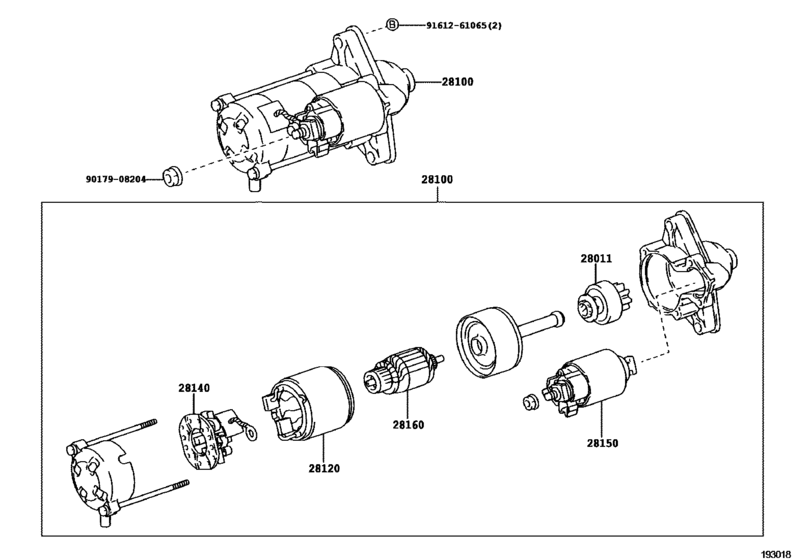

Starter ([04.2008 - ] 12V 0.8KW (0804- )1ZZFE) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[04.2008 - 03.2009] 1ZZFE..ZNE10 |
28011-70020 |
from US $43.51 |
||
|
28100
|
28100
28100-22100 Starter Assy[04.2008 - 03.2009] 1ZZFE..ZNE10 12V 0.8KW |
28100-22100 |
US $899.81 |
||
| replacement | |||||
|
28100
|
28100
28100-22031 Starter Assy[04.2008 - 03.2009] 1ZZFE..ZNE10 12V 0.8KW |
28100-22031 |
from US $384.79 |
||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[04.2008 - 03.2009] 1ZZFE..ZNE10 |
28120-70020 |
from US $98.61 |
||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[04.2008 - 03.2009] 1ZZFE..ZNE10 |
28140-70020 |
from US $22.19 |
||
|
28150
|
28150
28150-22100 Switch Assy, Magnet Starter[04.2008 - 03.2009] 1ZZFE..ZNE10 |
28150-22100 |
from US $84.81 |
||
|
28160
|
28160
28160-70021 Armature Assy, Starter[04.2008 - 03.2009] 1ZZFE..ZNE10 |
28160-70021 |
US $131.04 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.87 |
||
