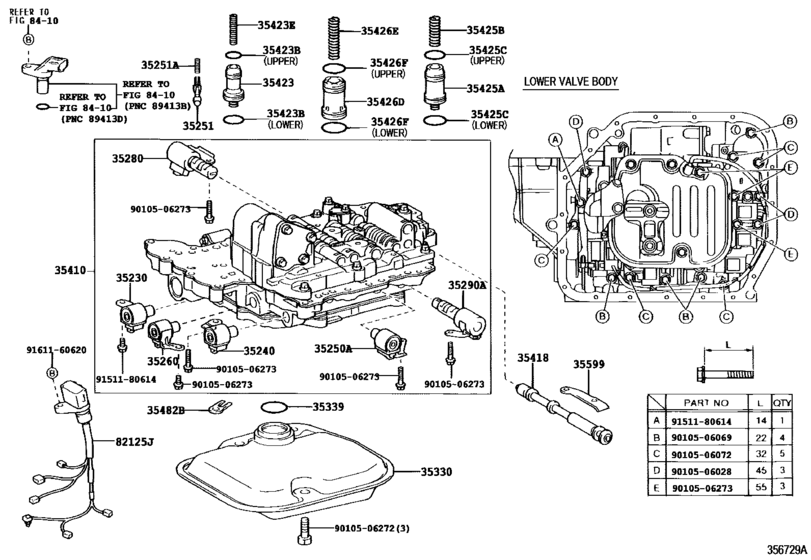

Valve Body & Oil Strainer (Atm) ([04.2008 - 03.2009] U341E (0804-0903)ZNE10) Diagram Toyota WISH
- Year
- 2008 - 2009
- Sales region
- General
- Frame
- ZNE10
- grade
- N
- ENGINE
- 1ZZFE
- DESTINATION
- GEN
- From
- 04.2008
- To
- 03.2009
- Gear Shift Type
- 4FC
- Seating Capacity
- 07S
- Vehicle Model
- WISH
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35230
|
35230
35230-52020
Solenoid Assy, Transmission 3Way, No.2
[04.2008 - 03.2009] ZNE10 |
35230-52020 |
— | ||
| replacement | |||||
|
35230
|
35230
35230-52021 Solenoid Assy, Transmission 3Way, No.2[04.2008 - 03.2009] ZNE10 |
35230-52021 |
from US $138.72 |
||
|
35240
|
35240
35240-52050 Solenoid Assy, Automatic Transmission 3Way[04.2008 - 03.2009] ZNE10 |
35240-52050 |
US $179.09 |
||
| replacement | |||||
|
35240
|
35240
35240-52051 Solenoid Assy, Automatic Transmission 3Way[04.2008 - 03.2009] ZNE10 |
35240-52051 |
US $131.04 |
||
|
35250A
|
35250A
35250-52080 Solenoid Assy, Transmission, No.3[04.2008 - 03.2009] ZNE10 |
35250-52080 |
from US $143.80 |
||
|
35251
|
35251
35251-30020 Body, Check Ball[12.2005 -] ANE1#,ZNE10 |
35251-30020 |
US $14.50 |
||
|
35251A
|
35251A
90501-03005 Spring, Compression (For Check Ball Body)[12.2005 -] ANE1#,ZNE10 |
90501-03005 |
from US $0.79 |
||
|
35260
|
35260
35260-52010 Accumlator Assy, Throttle Pressure[04.2008 - 03.2009] ZNE10 |
35260-52010 |
from US $60.57 |
||
|
35280
|
35280
35280-52020 Solenoid Assy, Lock Up Control[04.2008 - 03.2009] ZNE10 |
35280-52020 |
from US $103.38 |
||
|
35290A
|
35290A
35290-52020 Solenoid Assy, Line Pressure Control[04.2008 - 03.2009] ZNE10 |
35290-52020 |
from US $125.22 |
||
|
35330
|
35330
35330-0W020
Strainer Assy, Valve Body Oil
[04.2008 - 03.2009] ZNE10 |
35330-0W020 |
— | ||
| replacement | |||||
|
35330
|
35330
35330-0W021 Strainer Assy, Valve Body Oil[04.2008 - 03.2009] ZNE10 |
35330-0W021 |
from US $51.07 |
||
|
35339
|
35339
90301-32010 O-ring (Gasket, Oil Strainer)[12.2005 - 10.2009] ANE1#,ZNE10 |
90301-32010 |
from US $2.46 |
||
|
35410
|
35410
35410-68010 Body Assy, Transmission Valve[04.2008 - 03.2009] ZNE10 |
35410-68010 |
US $1,557.92 |
||
| replacements | |||||
|
35410
|
35410
35330-0W021 Strainer Assy, Valve Body Oil[04.2008 - 03.2009] ZNE10 |
35330-0W021 |
from US $51.07 |
||
|
35410
|
35410
35410-68011 Body Assy, Transmission Valve[04.2008 - 03.2009] ZNE10 |
35410-68011 |
from US $876.99 |
||
|
35418
|
35418
35418-52020 Valve, Manual[04.2008 - 03.2009] ZNE10 |
35418-52020 |
US $23.73 |
||
|
35423
|
35423
35403-52020 Piston, B-2 Accumulator[04.2008 - 03.2009] ZNE10 |
35403-52020 |
US $10.05 |
||
|
35423B
|
35423B
90301-20010 Ring, O (For B-2 Accumulator Piston)[04.2008 - 03.2009] ZNE10 UPPER |
90301-20010 |
US $2.62 |
||
|
35423B
|
35423B
90301-29011 Ring (For Accumulator Piston No.1)[04.2008 - 03.2009] ZNE10 LOWER |
90301-29011 |
from US $2.62 |
||
|
35423E
|
35423E
90501-18119 Spring, Compression (For B-2 Accmulator Piston)[04.2008 - 03.2009] ZNE10 |
90501-18119 |
US $1.89 |
||
|
35425A
|
35425A
35405-52020 Piston, C-2 Accumulator[04.2008 - 03.2009] ZNE10 |
35405-52020 |
US $10.63 |
||
|
35425B
|
35425B
90501-24036 Spring, Compression (For C-2 Accumulator Piston)[04.2008 - 03.2009] ZNE10 |
90501-24036 |
from US $2.33 |
||
|
35425C
|
35425C
90301-22010 Ring, O (For C-2 Accumulator Piston)[04.2008 - 03.2009] ZNE10 LOWER |
90301-22010 |
US $2.18 |
||
|
35425C
|
35425C
90301-35004 Ring, O (For C-2 Accumulator Piston)[04.2008 - 03.2009] ZNE10 UPPER |
90301-35004 |
US $2.18 |
||
|
35426D
|
35426D
35426-52020 Piston, C-3 Accumulator[04.2008 - 03.2009] ZNE10 |
35426-52020 |
US $26.50 |
||
|
35426E
|
35426E
90501-23149 Spring, Compression (For C-2 Accumulator Piston)[04.2008 - 03.2009] ZNE10 |
90501-23149 |
US $2.62 |
||
|
35426F
|
35426F
90301-24016 Ring, O (For C-3 Accumulator Piston)[04.2008 - 03.2009] ZNE10 LOWER |
90301-24016 |
US $2.18 |
||
|
35426F
|
35426F
90301-29011 Ring (For Accumulator Piston No.1)[04.2008 - 03.2009] ZNE10 UPPER |
90301-29011 |
from US $2.62 |
||
|
35482B
|
35482B
35482-52020 Clamp, Temperature Sensor[04.2008 - 03.2009] ZNE10 |
35482-52020 |
US $1.89 |
||
|
35599
|
35599
35599-52010 Cover, Manual Detent Spring[04.2008 - 03.2009] ZNE10 |
35599-52010 |
US $3.06 |
||
|
82125J
|
82125J
82125-68010 Wire, Transmission[04.2008 - 03.2009] ZNE10 |
82125-68010 |
US $37.22 |
||
|
9010506028
|
9010506028
90105-06028 New Genuine Part |
90105-06028 |
US $1.02 |
||
|
9010506069
|
9010506069
90105-06069 Bolt (For Governor Body) |
90105-06069 |
US $0.87 |
||
|
9010506072
|
9010506072
90105-06072 New Genuine Part |
90105-06072 |
US $1.46 |
||
|
9010506272
|
9010506272
90105-06272 Bolt(For Cylinder Head Cover) |
90105-06272 |
US $1.46 |
||
| replacement | |||||
|
9010506272
|
9010506272
91551-80670 Bolt(For Cylinder Head Cover) |
91551-80670 |
US $1.43 |
||
|
9010506273
|
9010506273
90105-06273 New Genuine Part |
90105-06273 |
US $1.75 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
|
9161160620
|
9161160620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.61 |
||
