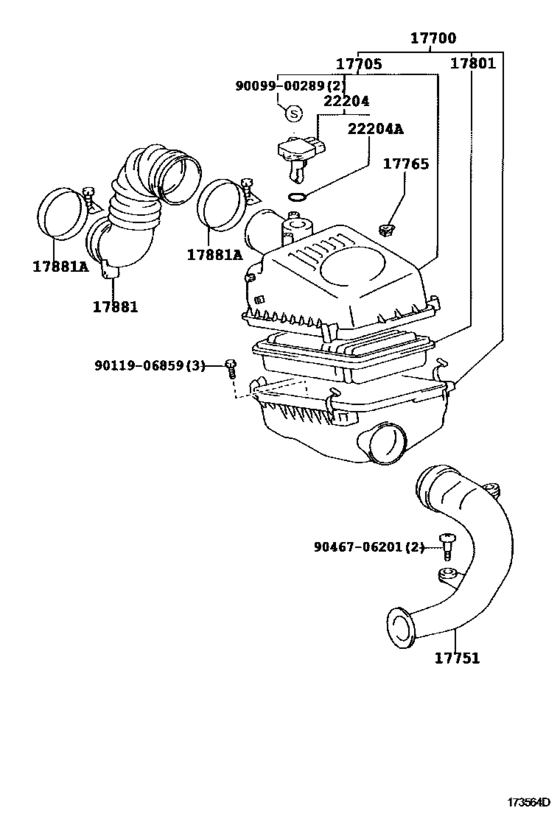

Air Cleaner ([01.2003 - 08.2005] (0301-0508)1ZZFE) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-22140 Cleaner Assy, Air[01.2003 - 08.2005] 1ZZFE..ZNE1# |
17700-22140 |
US $336.34 |
||
| replacement | |||||
|
17700
|
17700
17700-22120 Cleaner Assy, Air[01.2003 - 08.2005] 1ZZFE..ZNE1# |
17700-22120 |
US $326.73 |
||
|
17705
|
17705
17705-22140
Cap Sub-Assy, Air Cleaner
[01.2003 - 08.2005] 1ZZFE..ZNE1# |
17705-22140 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-22120 Cap Sub-Assy, Air Cleaner[01.2003 - 08.2005] 1ZZFE..ZNE1# |
17705-22120 |
US $249.85 |
||
|
17751
|
17751
17751-22100 Inlet, Air Cleaner, No.1[01.2003 - 08.2005] 1ZZFE..ZNE1# |
17751-22100 |
US $46.70 |
||
|
17765
|
17765
17706-22010
Stay, Air Cleaner, No.1
[01.2003 - 08.2005] 1ZZFE..ZNE1# |
17706-22010 |
— | ||
|
17801
|
17801
17801-22020 Element Sub-Assy, Air Cleaner Filter[01.2003 - 08.2005] 1ZZFE..ZNE1# |
17801-22020 |
from US $28.31 |
||
| replacement | |||||
|
17801
|
17801
17801-0D030 Element Sub-Assy, Air Cleaner Filter[01.2003 - 08.2005] 1ZZFE..ZNE1# |
17801-0D030 |
US $17.08 |
||
|
17881
|
17881
17881-22080 Hose, Air Cleaner, No.1[01.2003 - 08.2005] 1ZZFE..ZNE1# |
17881-22080 |
from US $59.23 |
||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[01.2003 - 08.2005] 1ZZFE..ZNE1# |
96111-10800 |
from US $2.87 |
||
|
22204
|
22204
22204-0C020 Meter Sub-Assy, Intake Air Flow[02.2004 - 08.2005] 1AZFSE..ANE1# （Ｌ）; 1ZZFE..ZNE1# （Ｌ） |
22204-0C020 |
US $152.55 |
||
| replacement | |||||
|
22204
|
22204
22204-22010 Meter Sub-Assy, Intake Air Flow[02.2004 - 08.2005] 1AZFSE..ANE1# （Ｌ）; 1ZZFE..ZNE1# （Ｌ） |
22204-22010 |
from US $136.38 |
||
|
22204
|
22204
22204-22010 Meter Sub-Assy, Intake Air Flow[01.2003 - 02.2004] 1ZZFE..ZNE1# |
22204-22010 |
from US $136.38 |
||
|
22204A
|
22204A
90099-14141 Ring, O(For Intake Air Flow Meter)[01.2003 - 08.2005] 1ZZFE..ZNE1# |
90099-14141 |
from US $1.09 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.66 |
||
|
9011906859
|
9011906859
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.03 |
||
|
9046706201
|
9046706201
90467-06201 New Genuine Part |
90467-06201 |
US $2.15 |
||
