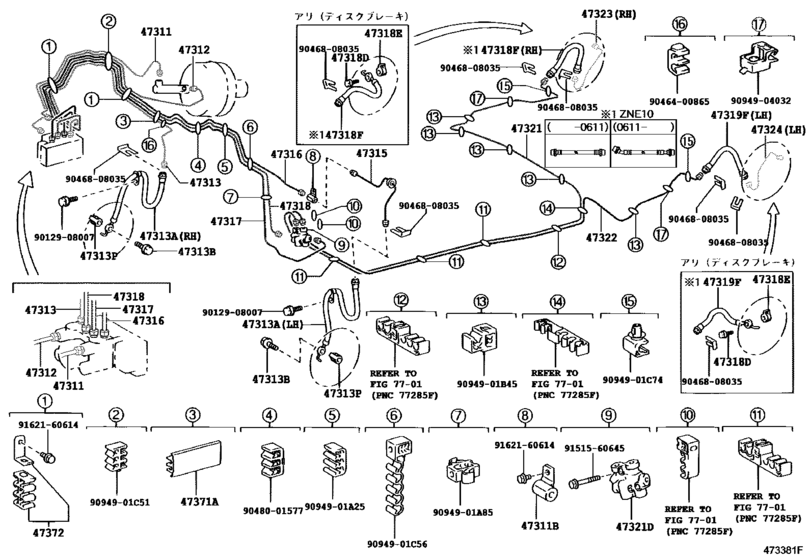

Brake Tube & Clamp ([01.2003 - ] (0301- )ZNE1#) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-68010 Tube, Front Brake, No.1[01.2003 - 08.2005] ZNE14 |
47311-68010 |
US $14.71 |
||
|
47311B
|
47311B
90412-10167 Way(For Front Brake Tube)[01.2003 - 08.2005] ANE1#,ZNE1# |
90412-10167 |
US $4.22 |
||
|
47312
|
47312
47312-68010 Tube, Front Brake, No.2[01.2003 - 08.2005] ZNE14 |
47312-68010 |
US $17.47 |
||
|
47313
|
47313
47313-68010 Tube, Front Brake, No.3[01.2003 - 08.2005] ZNE14 |
47313-68010 |
US $19.66 |
||
|
47313A
|
47313A
90947-02D65 Hose, Flexible, No.1(For Front)[01.2003 - 08.2005] ANE10,ZNE1# 右側 |
90947-02D65 |
US $43.85 |
||
|
47313A
|
47313A
90947-02D66 Hose, Flexible, No.1(For Front)[01.2003 - 08.2005] ANE10,ZNE1# 左側 |
90947-02D66 |
US $43.85 |
||
|
47313B
|
47313B
90401-10058 Bolt, Union(For Front Flexible Hose)[01.2003 - 08.2005] ANE1#,ZNE1# |
90401-10058 |
from US $3.94 |
||
|
47313P
|
47313P
47389-50020 Gasket(For Front Flexible Hose)[01.2003 - 08.2005] ANE1#,ZNE1# |
47389-50020 |
from US $4.91 |
||
|
47315
|
47315
47315-12490 Tube, Front Brake, No.5[01.2003 - 08.2005] ANE1#,ZNE1# |
47315-12490 |
US $10.05 |
||
|
47316
|
47316
47316-68010 Tube, Front Brake, No.6[01.2003 - 08.2005] ZNE14 |
47316-68010 |
US $26.94 |
||
|
47317
|
47317
47317-68010 Tube, Front Brake, No.7[01.2003 - 08.2005] ZNE14 |
47317-68010 |
US $29.27 |
||
|
47318
|
47318
47318-68010 Tube, Front Brake, No.8[01.2003 - 08.2005] ZNE14 |
47318-68010 |
US $26.94 |
||
|
47318D
|
47318D
90401-10058 Bolt, Union(For Front Flexible Hose)[01.2003 - 08.2005] ANE1#,ZNE14; ZNE10 Ｓパッケージ ＊（Ｓ） |
90401-10058 |
from US $3.94 |
||
|
47318E
|
47318E
47389-50020 Gasket(For Front Flexible Hose)[01.2003 - 08.2005] ANE1#,ZNE14; ZNE10 Ｓパッケージ ＊（Ｓ） |
47389-50020 |
from US $4.91 |
||
|
47318F
|
47318F
90947-02A37 Hose, Flexible(For Rear Rh)[01.2003 - 08.2005] ANE11,ZNE14 |
90947-02A37 |
US $25.03 |
||
|
47319F
|
47319F
90947-02A37 Hose, Flexible(For Rear Rh)[01.2003 - 08.2005] ANE11,ZNE14 |
90947-02A37 |
US $25.03 |
||
|
47321
|
47321
47321-68030 Tube, Rear Brake, No.1[01.2003 - 08.2005] ZNE14 |
47321-68030 |
US $57.37 |
||
|
47321D
|
47321D
90412-10140 Valve Assy, Proportioning[01.2003 - 08.2005] ANE1#,ZNE1# |
90412-10140 |
from US $32.50 |
||
|
47322
|
47322
47322-68020 Tube, Rear Brake, No.2[01.2003 - 08.2005] ANE11,ZNE14 |
47322-68020 |
US $48.63 |
||
|
47371A
|
47371A
47371-12230 Clamp, Brake Tube, No.1[01.2003 - 08.2005] ZNE1# |
47371-12230 |
US $3.49 |
||
|
47372
|
47372
47374-12050 Clamp, Brake Tube, No.1[01.2003 - 08.2005] ANE1#,ZNE1# |
47374-12050 |
US $7.29 |
||
|
9094901A25
|
9094901A25
90949-01A25 Clamp, Brake Tube, No.1 |
90949-01A25 |
US $3.40 |
||
|
9094901A85
|
9094901A85
90949-01A85 New Genuine Part |
90949-01A85 |
US $3.06 |
||
|
9094901B45
|
9094901B45
90949-01B45 Clamp(For Clutch Master Cylinder Tube) |
90949-01B45 |
US $3.94 |
||
|
9094901C51
|
9094901C51
90949-01C51 Clamp, Brake Tube, No.1 |
90949-01C51 |
US $4.37 |
||
|
9094901C56
|
9094901C56
90949-01C56 Clamp, Brake Tube, No.2 |
90949-01C56 |
US $5.10 |
||
|
9094901C74
|
9094901C74
90949-01C74 Clamp, Brake Tube, No.8 |
90949-01C74 |
US $3.20 |
||
|
9012908007
|
9012908007
90129-08007 New Genuine Part |
90129-08007 |
US $1.61 |
||
|
9046400865
|
9046400865
90464-00865 New Genuine Part |
90464-00865 |
US $2.04 |
||
|
9046808035
|
9046808035
90468-08035 CLIP |
90468-08035 |
from US $1.13 |
||
|
9048001577
|
9048001577
90480-01577 GROMMET |
90480-01577 |
US $4.54 |
||
|
9094904032
|
9094904032
90949-04032 Clamp, Brake Tube, No.7 |
90949-04032 |
US $1.22 |
||
|
9151560645
|
9151560645
91515-60645 New Genuine Part |
91515-60645 |
US $0.87 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
