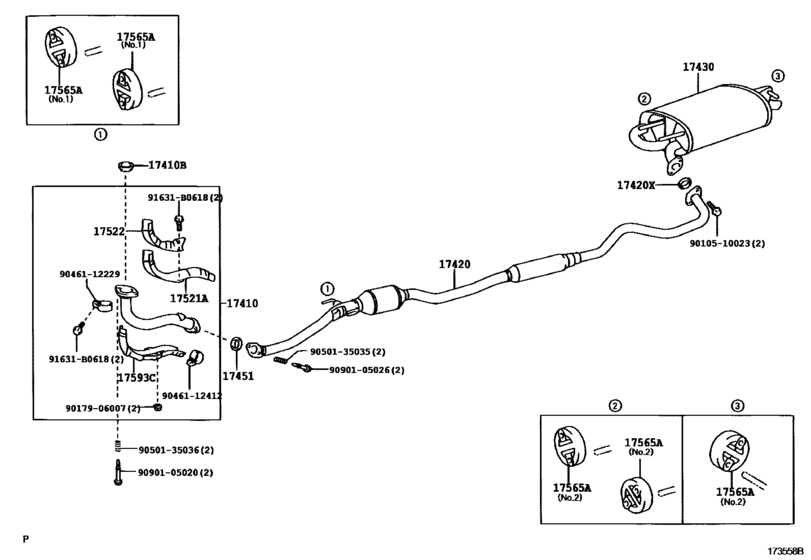

Exhaust Pipe ([01.2003 - ] (0301- )1ZZFE..ZNE14) Diagram Toyota WISH
- Year
- 2003 - 2009
- Sales region
- Japan
- Frame
- ZNE14
- grade
- X
- ENGINE
- 1ZZFE
- From
- 01.2003
- To
- 03.2009
- Seating Capacity
- 07S
- Vehicle Model
- WISH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-22290 Pipe Assy, Exhaust, Front[01.2003 - 08.2005] 1ZZFE..ZNE14 |
17410-22290 |
US $199.47 |
||
|
17410B
|
17410B
17451-21030 Gasket, Exhaust Pipe[01.2003 - 08.2005] 1ZZFE..ZNE14 |
17451-21030 |
from US $19.03 |
||
|
17420
|
17420
17420-22080 Pipe Assy, Exhaust, Center[01.2003 - 08.2005] 1ZZFE..ZNE14 |
17420-22080 |
US $1,499.68 |
||
| replacement | |||||
|
17420
|
17420
17420-22081 Pipe Assy, Exhaust, Center[01.2003 - 08.2005] 1ZZFE..ZNE14 |
17420-22081 |
US $1,425.52 |
||
|
17420
|
17420
17420-22081 Pipe Assy, Exhaust, Center[10.2008 - 03.2009] 1ZZFE..ZNE14 |
17420-22081 |
US $1,425.52 |
||
|
17420X
|
17420X
90917-06044 Gasket, Exhaust Pipe, Center[01.2003 - 08.2005] 1ZZFE..ZNE14 |
90917-06044 |
from US $5.46 |
||
|
17430
|
17430
17430-22441 Pipe Assy, Exhaust, Tail[01.2003 - 08.2005] 1ZZFE..ZNE14 |
17430-22441 |
US $455.52 |
||
|
17451
|
17451
17451-21050 Gasket, Exhaust Pipe[01.2003 - 08.2005] 1ZZFE..ZNE14 |
17451-21050 |
from US $27.75 |
||
|
17521A
|
17521A
17521-22060 Protector, Exhaust Pipe, Front No.1[01.2003 - 08.2005] 1ZZFE..ZNE14 |
17521-22060 |
US $34.51 |
||
|
17522
|
17522
17522-22040 Protector, Exhaust Pipe, Upper No.2[01.2003 - 08.2005] 1ZZFE..ZNE14 |
17522-22040 |
US $21.84 |
||
|
17565A
|
17565A
17565-22030 Support, Exhaust Pipe, No.1[01.2003 - 08.2005] 1ZZFE..ZNE14 ＮＯ．１ |
17565-22030 |
from US $7.86 |
||
|
17565A
|
17565A
17565-22040 Support, Exhaust Pipe, No.1[01.2003 - 08.2005] 1ZZFE..ZNE14 ＮＯ．２ |
17565-22040 |
from US $9.48 |
||
|
17593C
|
17593C
17593-22090 Protector, Exhaust Pipe, No.1[01.2003 - 08.2005] 1ZZFE..ZNE14 |
17593-22090 |
US $33.63 |
||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.66 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $3.05 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $0.96 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.84 |
||
|
9046112229
|
9046112229
90461-12229 Clamp |
90461-12229 |
US $6.81 |
||
|
9046112412
|
9046112412
90461-12412 New Genuine Part |
90461-12412 |
US $5.78 |
||
|
9050135035
|
9050135035
90501-35035 Spring, Exhaust Pipe |
90501-35035 |
from US $3.45 |
||
|
9050135036
|
9050135036
90501-35036 SPRING COMPRESSION |
90501-35036 |
from US $3.41 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $4.12 |
||
|
9090105026
|
9090105026
90901-05026 Bolt, Exhaust Pipe Support |
90901-05026 |
from US $5.56 |
||
